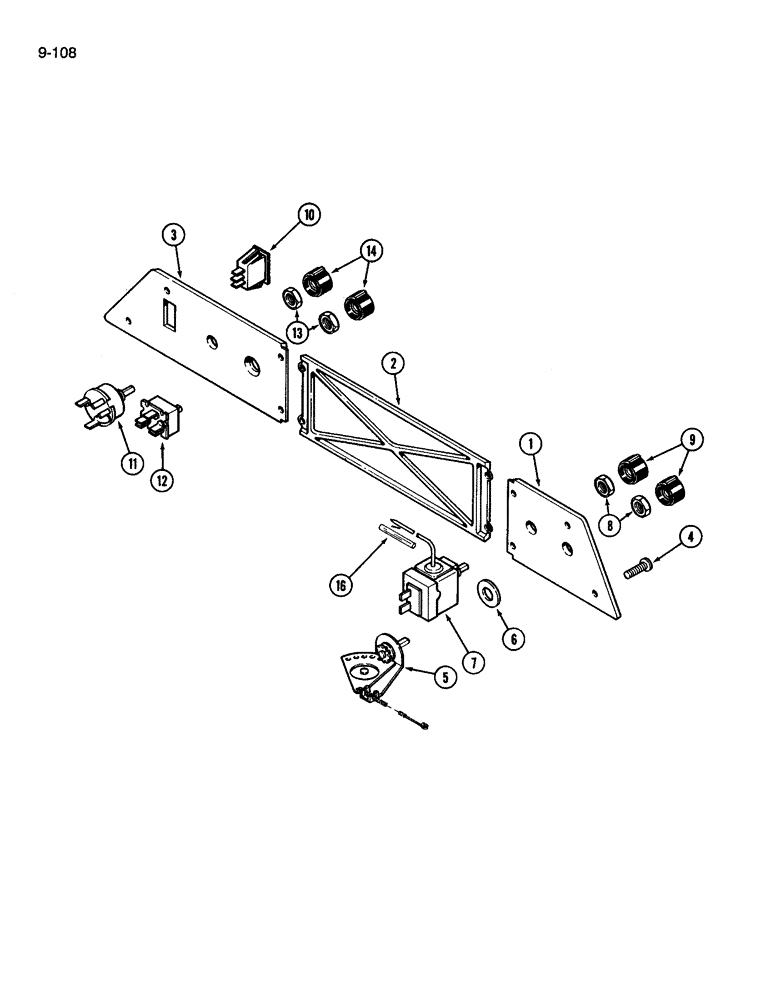

Запчасти Case IH 3594 (9-108) - CAB, CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

F66128

BEZEL

PANEL control, front section

1шт.

2

F66129

BEZEL & GASKET

PANEL control, center section

1шт.

3

F66139

BEZEL

PANEL control, rear section

1шт.

4

265-16512

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW self-tapping, oval phillips, No. 10-16 x 3/4 inch

8шт.

5

F64666

CONTROL,1503.68mm L

heater

1шт.

6

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

1шт.

7

L73646

SWITCH

air conditioner

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining

2шт.

9

F66127

BUTTON

KNOB control

2шт.

10

F64733

IGNITION SWITCH

SWITCH dome light

1шт.

11

F43359

SWITCH

wiper

1шт.

12

A42622

SWITCH

blower

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

retaining

2шт.

14

F66127

BUTTON

KNOB control

2шт.

16

F63719

TUBE

nylon, 1/8 ID x 12 inch, Order F44879

1шт.
