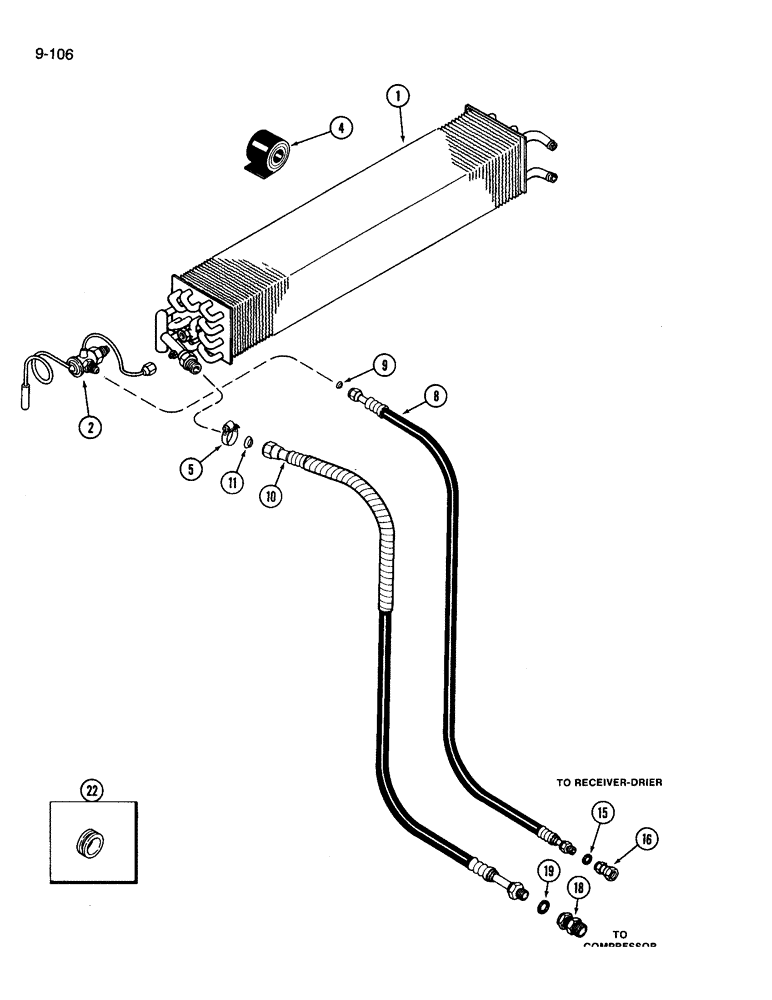

Запчасти Case IH 3594 (9-106) - CAB, AIR CONDITIONING SYSTEM (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE heater and air conditioning

1шт.

2

F64389

VALVE

expansion

1шт.

4

345-37

TAPE

cork, insulating, 1/8 x 2-1/2 x 12 inch, Order A42902 and, Serial Range: cut-length

1шт.

5

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

1шт.

8

F66224

HYDRAULIC HOSE

HOSE pressure

1шт.

9

222-993

GASKET,3/8 Tube, Fl, Copper

1шт.

10

F64305

HOSE

suction, Replace F66225

1шт.

11

222-996

GASKET,3/4 Tube, Fl, Copper

copper, 3/4 inch

1шт.

15

A61195

O-RING,0.364" ID x 0.5" OD

hose

2шт.

16

A42663

COUPLING,1/2" - 20 NPT

COUPLING high side

1шт.

18

A61194

COUPLING, BREAK AWAY

COUPLING hose

1шт.

19

A61197

O-RING,1.78mm Thk x 27mm ID

coupling

1шт.

22

F64485

GROMMET

hose

3шт.
