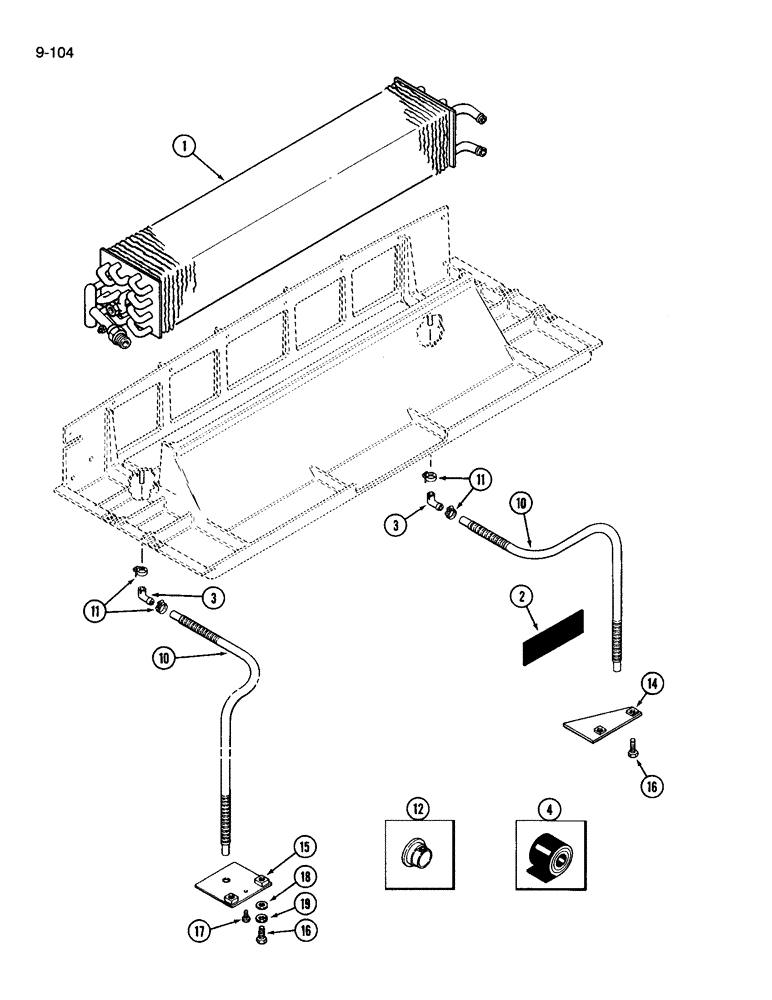

Запчасти Case IH 3594 (9-104) - CAB, AIR CONDITIONING EVAPORATOR (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE heater and air conditioning

1шт.

2

345-38

TAPE duct

1шт.

3

F66183

ELBOW

90 degree, drain hose

2шт.

4

345-37

TAPE

cork, insulating, 1/8 x 2-1/2 x 12 inch, Order A42902

3шт.

10

NSS

NOT SOLD SEPARAT

HOSE drain, corrugated, Order F64508 and, Serial Range: cut-length

2шт.

11

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP adj, 1/4 - 5/8 inch dia

4шт.

12

F64504

BUSHING

, Serial Range: hose-post

2шт.

14

F97423

PLATE

hose support

1шт.

15

F98277

PLATE ASSY.

PLATE hose support

1шт.

16

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.

17

276-1468

SELF-TAP SCREW,Hex Hd, #12 x 1/2"

SCREW self-tapping, hex head, No. 12 NC x 1/2 inch

2шт.

18

195-526

WASHER,7/16" x 7/8" x .083"

flat, 7/16 x 7/8 x 5/64 inch

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.
