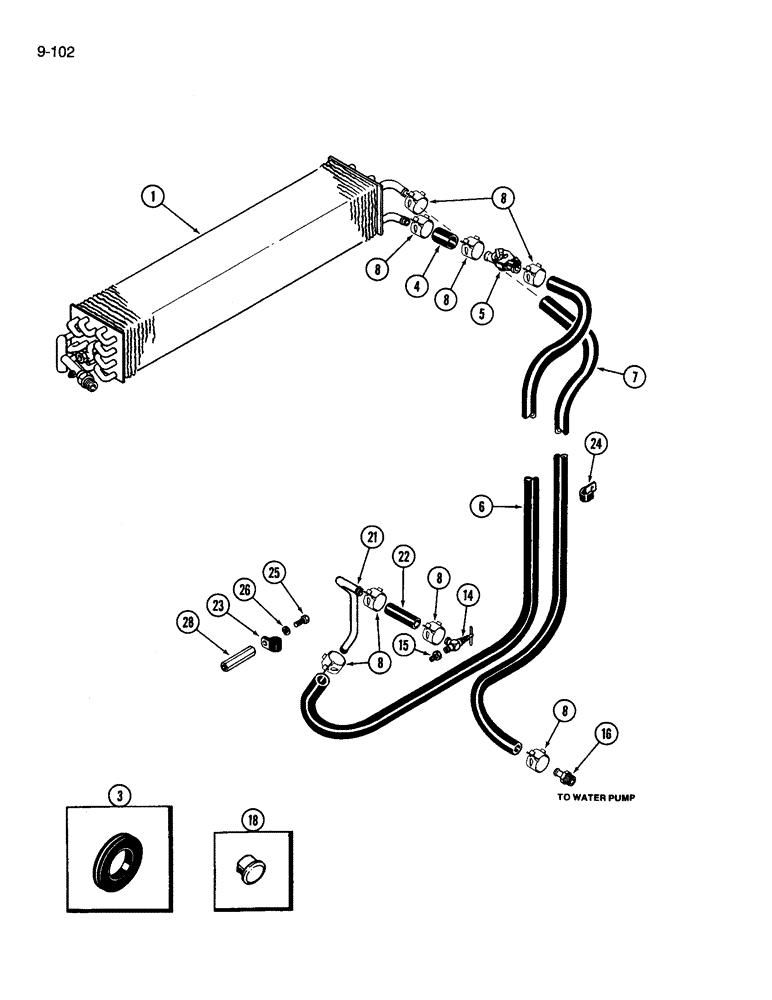

Запчасти Case IH 3594 (9-102) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

1

F66203

HEATER ASSY.

CORE heater and air conditioning

1шт.

3

F64485

GROMMET

hose

2шт.

4

NSS

NOT SOLD SEPARAT

HOSE core to valve, 2 inch, Order 97252C1 and, Serial Range: cut-length

1шт.

5

F66209

VALVE

heater control

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE valve outlet, black, 134 inch, Order 97252C1 and, Serial Range: cut-length

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE core outlet, black with red 104 inch, Order 97252C1 and, Serial Range: cut-length

1шт.

8

1954736C1

HOSE CLAMP,#24

CLAMP, HOSE, (Replaces 214-253) #24

8шт.

14

301803R1

SHUT-OFF VALVE

VALVE shut off, Replaces A16764

1шт.

15

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

pipe, 1/2 male x 3/8 inch female

1шт.

16

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

ADAPTER straight, 5/8 stem end x 1/2 inch PT

1шт.

18

353-496

PLUG

BUSHING heater hose, Order F64485

2шт.

21

A149953

TUBE

heater hose

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE tube to manifold, 3-1/2 inch, Order 97252C1 and, Serial Range: cut-length

1шт.

23

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

hose

1шт.

24

A160691

CLAMP

hose

2шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

1шт.

28

A164486

NUT

heater hose spacer

1шт.
