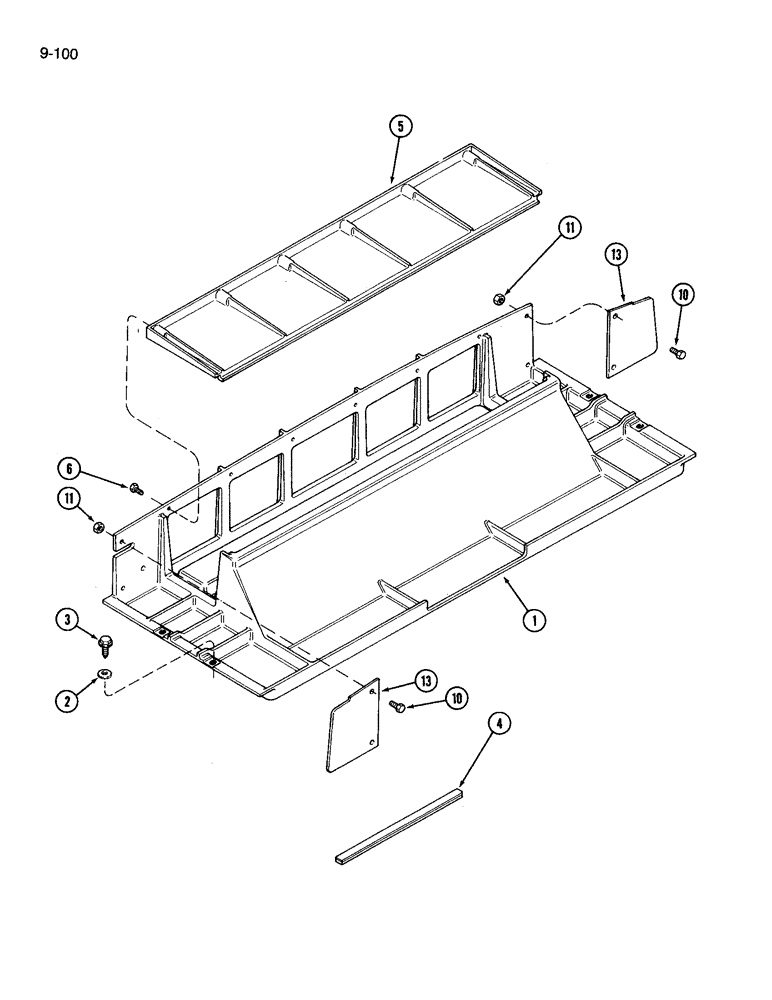

Запчасти Case IH 3594 (9-100) - CAB, PLENUM (09) - CHASSIS/ATTACHMENTS

1

F64861

PAN

CHANNEL air passage

1шт.

2

F44834

BUSHING

nylon

4шт.

3

280-1658

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW self-tapping, hex washer head, No. 10-16 x 1/2 inch

4шт.

4

NSS

NOT SOLD SEPARAT

SEAL duct floor, 111-1/2 inch, Order F64119 and, Serial Range: cut-length

1шт.

5

F64884

COVER

top, air duct

1шт.

6

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW self-tapping, pan phillips, No. 8-16 x 3/4 inch

6шт.

10

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

4шт.

11

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

13

F63614

PLATE ASSY.

PLATE end, air duct filler

2шт.
