(9-098) - CAB, BLOWER ASSEMBLY

Запчасти Case IH 3594 (9-098) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

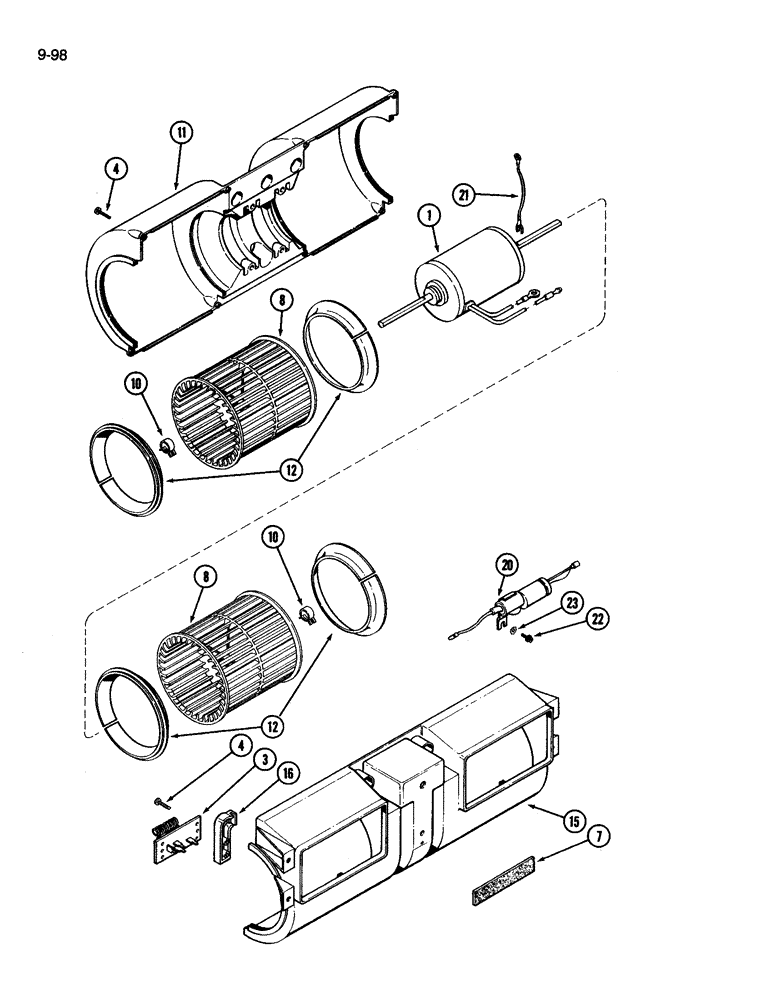

Схема запчастей Case IH 3594 - (9-098) - CAB, BLOWER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
8
4
3
23
8
1
4
16
12
7
11
12
20
15
21
10
22
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

F45196

MOTOR, ELECTRIC

MOTOR blower, Order F96901

1шт.

3

F44900

RESISTOR

blower

1шт.

4

187-1916

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW self-tapping, pan phillips, No. 8-16 x 3/4 inch

14шт.

7

F64816

FOAM

SEAL foam, Order F64119 and, Serial Range: cut-length

1шт.

8

F64935

BLOWER,Fan

FAN blower

2шт.

10

F64936

CLAMP

fan retaining

2шт.

11

F64741

HOUSING

blower fan

1шт.

12

F64739

RING

plastic, fan retaining

4шт.

15

F64740

HOUSING

blower fan

1шт.

16

F66204

BRACKET

resistor

1шт.

20

F64184

CAPACITOR

noise, if equipped

1шт.

21

A180121

ELECTRICAL WIRE

WIRE ground

1шт.

22

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW slotted hex, N0. 10 x 3/4 inch

1шт.

23

193-70

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, Ext-Int Tooth, #10

1шт.
