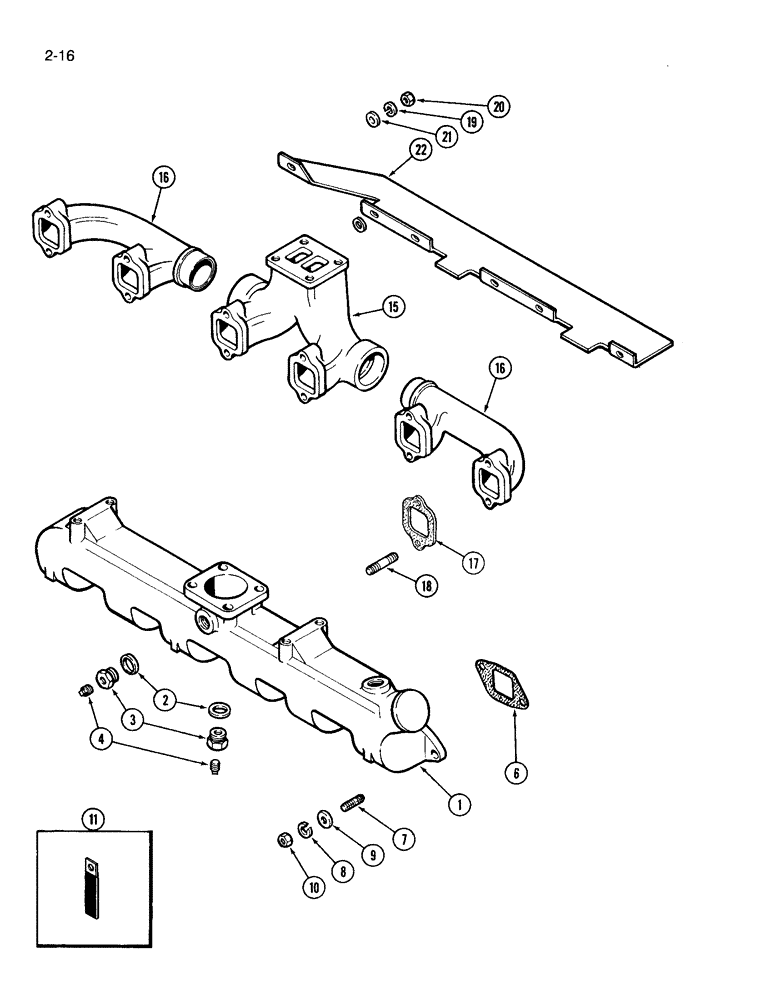

Запчасти Case IH 3594 (2-016) - INTAKE AND EXHAUST MANIFOLDS, 504BDT DIESEL ENGINE (02) - ENGINE

1

A154446

MANIFOLD

INTAKE MANIFOLD ASSEMBLY, Includes Ref. 2, 3 and 4

1шт.

2

A20916

MANIFOLD GASKET

GASKET plug

2шт.

3

L10283

PLUG

heater hole

2шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

hex socket, 1/8 inch PT

2шт.

6

1342760C1

MANIFOLD GASKET

intake manifold, Replaces A58662

6шт.

7

A59077

STUD

, Serial Range: manifold-head

12шт.

8

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

9

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

12шт.

10

25-166

NUT,3/8"-16, G5, Hvy

hex, 3/8 inch NC

12шт.

11

A149624

CLIP

air conditioning hose, Order A22883

3шт.

11

A22883

CLIP

air conditioning hose, Replaces A149624

3шт.

15

A76322

MANIFOLD

exhaust, center section

1шт.

16

A65917

MANIFOLD

exhaust, end section

2шт.

17

1342786C1

MANIFOLD GASKET

exhaust manifold, Replaces A58895

6шт.

18

A140924

STUD

, Serial Range: manifold-head

12шт.

19

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

20

131-903

NUT,3/8"-16

NUT hex, 3/8 inch NC

12шт.

21

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

12шт.

22

A76351

GUARD

SHIELD heat, manifold

1шт.
