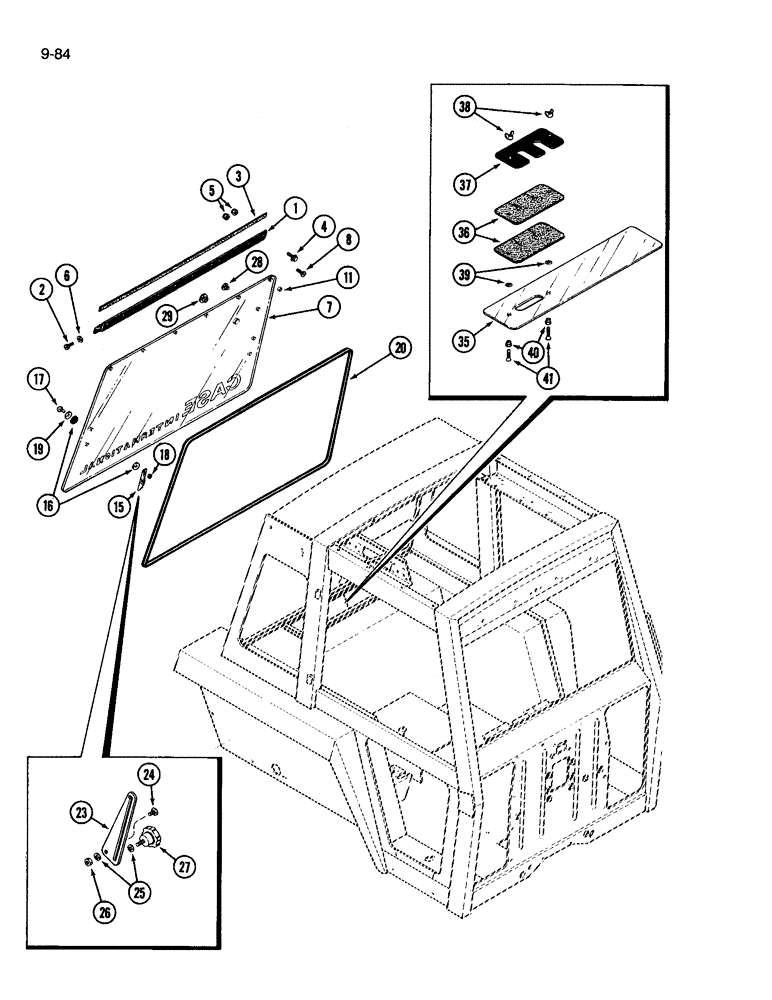

Запчасти Case IH 3594 (9-084) - CAB, REAR WINDOW (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
F66132
HINGE
rear window
1шт.
2
280-1848
SELF-TAP SCREW,Hex Wash Hd, #8 x 1/2"
SCREW self-tapping, hex washer head, No. 8-18 x 1/2 inch
8шт.
3
NSS
NOT SOLD SEPARAT
SEAL hinge, Order F64119 and, Serial Range: cut-length
1шт.
4
163-42
SCREW,Hex Wshr Hd, #10 - 24 x 1/2", Gr 5
machine, hex washer head, No. 10 NC x 1/2 inch
10шт.
5
F45165
SPECIAL NUT,#10-24
NUT hex lock, No. 10-24, teflon
10шт.
6
195-513
WASHER,#10
flat, 7/32 x 1/2 x 3/64 inch
4шт.
7
REF
INSTRUCTION
WINDOW GLASS ASSEMBLY, with hinge, See Figure 9-088
1шт.
8
140-107
SCREW,Pan HD, #10 - 24 x 3/4"
6шт.
11
F66023
SPACER
, Serial Range: hinge-glass
1шт.
15
F64138
BRACKET
regulator arm
2шт.
16
F45315
WASHER
shoulder
20шт.
17
140-107
SCREW,Pan HD, #10 - 24 x 3/4"
4шт.
18
F45165
SPECIAL NUT,#10-24
NUT hex lock, No. 10-24, teflon
12шт.
19
195-81026
WASHER,.266" x 13/16" x .079"
flat, No. 10
4шт.
20
F64677
SEAL
SEAL window, Order F64499
1шт.
23
F64779
REGULATOR
ARM regulator
2шт.
24
434-512
CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5
BOLT - round head square neck, 5/16 NC x 3/4 inch
2шт.
25
195-103
WASHER,5/16"
flat, 3/8 x 7/8 x 5/64 inch
4шт.
26
131-1353
LOCK NUT,5/16"-18, GA
NUT, LOCK, 5/16"-18, GA
2шт.
27
F64253
KNOB
regulator, 1-1/4 inch
2шт.
27a
R53705
KNOB
2 inch
1шт.
28
F66089
PLUG
window, 3/8 inch diameter
1шт.
29
F66090
PLUG
window, 29/32 inch diameter
1шт.
A163882
KIT Window, lower rear, machinery item, Includes Ref. 35 - 41
1шт.
35
A163883
WINDOW
rear lower, See Figure 9-088 for standard window
1шт.
36
A165354
SEAL
cable access
2шт.
37
A165352
PLATE
cable access
1шт.
38
129-500
WING NUT,#10-32
NUT - wing, No. 10
2шт.
39
A165523
FASTENER
flat, Tinnerman, No. 10-24
2шт.
41
442-11016
SCREW,Cross Oval Hd, #10-24 x 1"
machine, oval head phillips, No. 10 NC x 1 inch
2шт.
Выбрано товаров: 31
