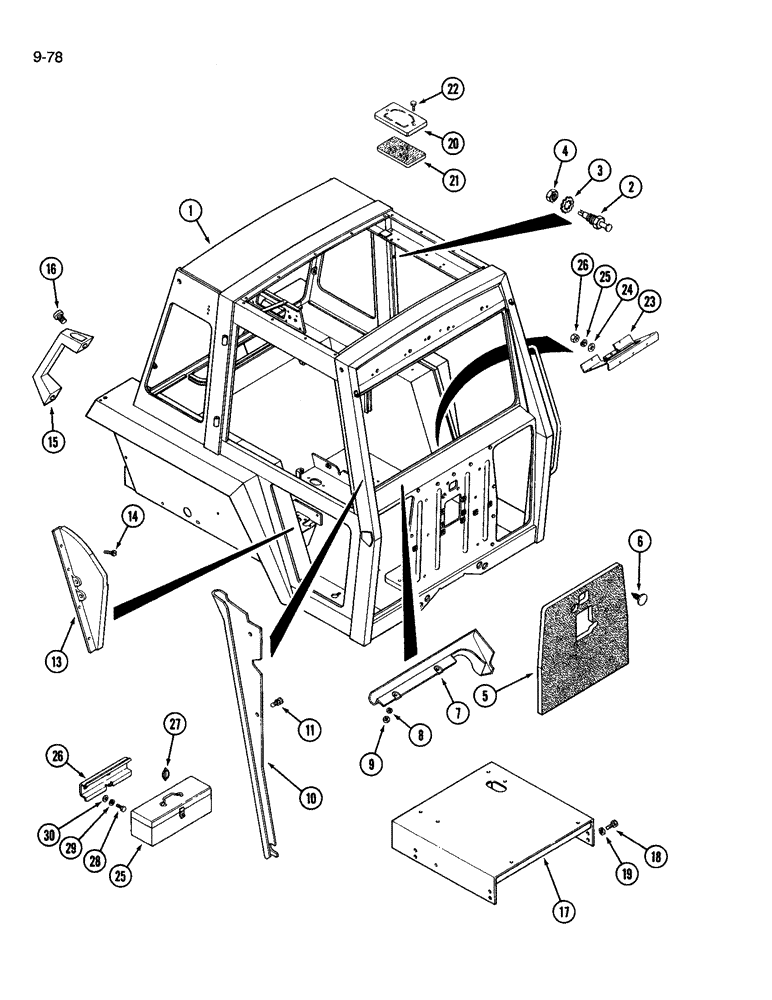

Запчасти Case IH 3594 (9-078) - CAB, FRAME AND ATTATCHING PARTS, TOOL BOX (09) - CHASSIS/ATTACHMENTS

F98350

CAB

with heater, air conditioning, radio speakers and antenna

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME cab

1шт.

2

F63895

SWITCH

dome light, door opening

1шт.

3

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

5

A167044

PAD

firewall

1шт.

6

A166346

FASTENER

pad, firewall

6шт.

7

F64719

COVER

harness

1шт.

8

195-81009

WASHER,5/16" x 3/4" x .065"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

9

129-119

NUT,1/4"-20, G5

2шт.

10

F64614

COVER ASSY

COVER harness

1шт.

11

F64646

PIN

speed

2шт.

13

NSS

NOT SOLD SEPARAT

PLATE console support

1шт.

14

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW slotted hex, No. 10 x 3/4 inch

4шт.

15

F64547

HANDLE

grab

2шт.

16

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

17

A176205

CHANNEL

seat base, air/oil seat

1шт.

18

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

19

492-11038

LOCK WASHER,3/8"

4шт.

20

F64989

COVER ASSY

COVER port, air/oil seat

1шт.

21

F66075

SEAL

cover

1шт.

21

F66075

SEAL

cover

1шт.

22

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

23

F66067

PANEL

column support

1шт.

24

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

3шт.

25

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

26

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

3шт.

A185128

BOX, TOOL

TOOL BOX ASSEMBLY, Order components, Includes Ref. 30 - 35

1шт.

30

A181436

TOOL BOX

BOX tool

1шт.

31

A181434

SUPPORT

BRACKET mounting

1шт.

32

A30338

PIN

self locking, 1/4 inch

1шт.

33

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, plated

2шт.

34

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.
