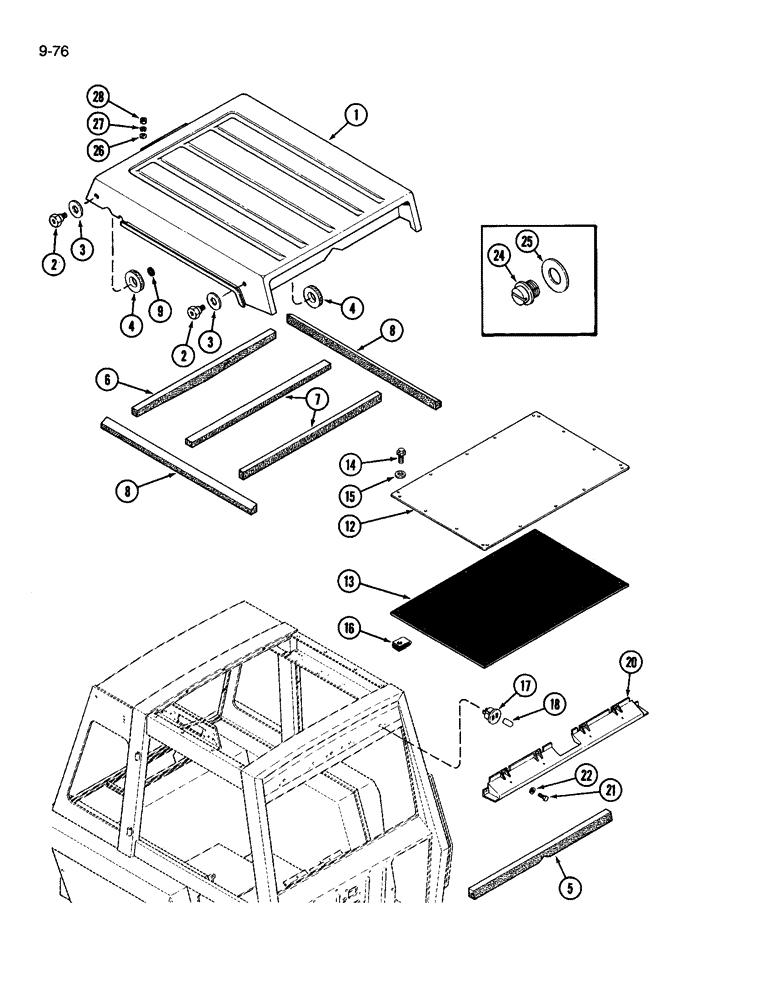

Запчасти Case IH 3594 (9-076) - CAB AND FOUR POST ROPS, ROOF CAP AND ROOF (09) - CHASSIS/ATTACHMENTS

1

A181470

CAP

roof, cab

1шт.

2

A163030

BOLT

cab roof cap and lifting

4шт.

3

A163031

WASHER

retaining, roof cap

4шт.

4

A185690

WASHER,32.5mm ID x 63.5mm OD x 9.5mm Thk

retaining, roof cap

4шт.

5

A166496

FOAM

roof cap support, front

1шт.

6

A166493

FOAM

roof cap support, rear

1шт.

7

A166494

FOAM

roof cap support, center, Order D71360

2шт.

8

A166495

FOAM

roof cap support, side

2шт.

9

A177335

WASHER

roof cap mounting, nylon, rear

2шт.

12

F64316

ROOF

cab

1шт.

13

F64781

SEAL

foam

1шт.

14

163-14

SCREW,Hex Wshr Hd, 1/4" - 20 x 1"

machine, hex, 1/4 inch NC x 1 inch

18шт.

15

F64531

SEALING WASHER

WASHER sealing

18шт.

16

131-825

NUT,Tinn, U, 1/4"-20

U-type speed, 1/4 inch

18шт.

17

F64712

BUSHING

terminal

4шт.

18

F64483

COVER

CAP terminal

10шт.

20

F66024

SUPPORT

CHANNEL lamp support, front

1шт.

21

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

22

192-83

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

6шт.

24

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

25

A165395

WASHER,.50mm ID x 1.0mm OD x .060 Thk

flat, 1/2 x 1 x 1/16 inch

4шт.

26

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

2шт.

27

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

28

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.
