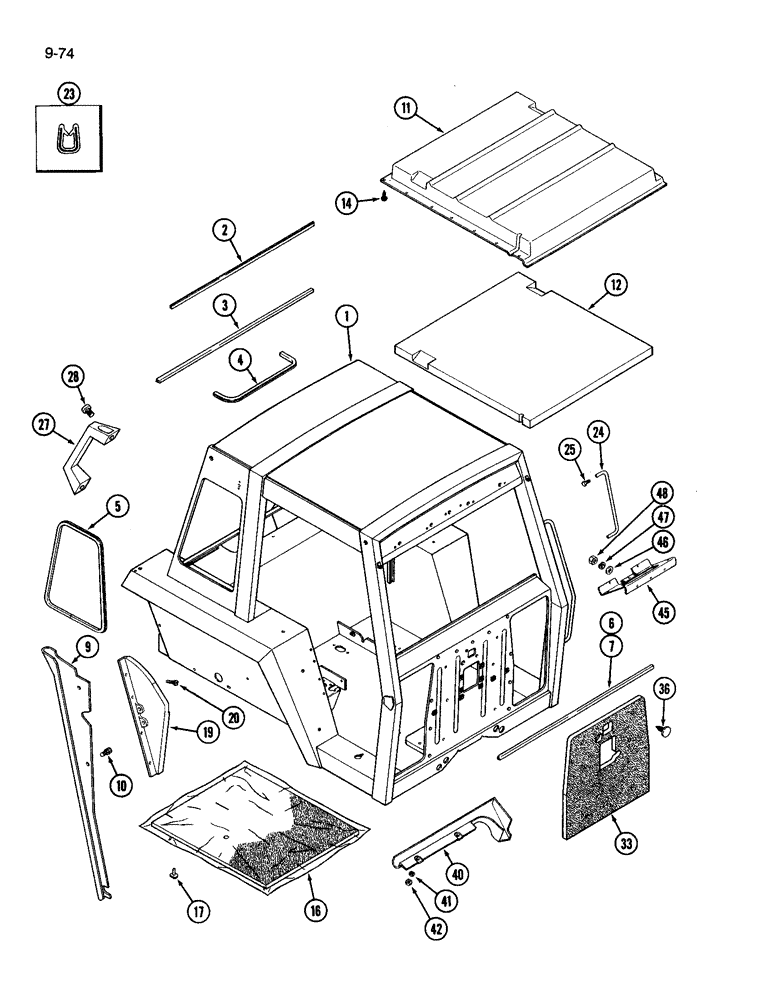

Запчасти Case IH 3594 (9-074) - FOUR POST ROPS (09) - CHASSIS/ATTACHMENTS

F98324

FUNNEL

ROPS FRAME ASSEMBLY, machinery item, Includes Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME ROPS, Order F98252

1шт.

2

NSS

NOT SOLD SEPARAT

MOULDING window, rear, upper, Order F64277

1шт.

3

NSS

NOT SOLD SEPARAT

MOULDING window, rear, lower, Order F64277

1шт.

4

NSS

NOT SOLD SEPARAT

MOULDING window, horizontal, Order F64277

1шт.

5

NSS

NOT SOLD SEPARAT

MOULDING window, rear side, Order F64277

2шт.

6

NSS

NOT SOLD SEPARAT

MOULDING window, front, Oder F64277

1шт.

7

NSS

NOT SOLD SEPARAT

MOULDING, front, lower, Order F64277

2шт.

9

F64614

COVER ASSY

COVER harness

1шт.

10

R53048

CLIP

PIN speed, clinch

2шт.

11

F64803

PADDING

FRAME HEADLINER ASSEMBLY, Includes Ref. 12

1шт.

12

F64804

FOAM

headliner

1шт.

14

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW tapping, round x-recess, No. 10-16 x 3/4 inch, Order (1) washer F64315 and )1) screw 265-16512

19шт.

16

F64802

FLOOR MAT

MAT under floor, Order F66049

1шт.

17

F64518

RETAINER

mat

15шт.

19

NSS

NOT SOLD SEPARAT

PLATE console support

1шт.

20

280-16516

SELF-TAP SCREW,Hex Wash Hd, #10 x 1"

SCREW self-tapping, hex washer head, No. 10-16 x 1 inch

4шт.

23

F64277

SEAL

MOULDING window, 50 foot, Serial Range: Cut-length

1шт.

24

A143834

HANDLE

mounting

1шт.

25

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

hex flange, self-locking, 5/16 NC x 3/4 inch

2шт.

27

F64547

HANDLE

grab

2шт.

28

140-116

SCREW,Cross Pan Hd, 1/4" - 20 x 1 1/4"

4шт.

33

A167044

PAD

firewall

1шт.

36

A166346

FASTENER

pad, firewall

6шт.

40

F64719

COVER

harness

1шт.

41

195-81009

WASHER,5/16" x 3/4" x .065"

flat, 5/16 x 3/4 x 1/16 inch

2шт.

42

129-119

NUT,1/4"-20, G5

2шт.

45

F66067

PANEL

column support

1шт.

46

495-21031

WASHER,1/4"

flat, 5/16 x 47/64 x 1/16 inch

3шт.

47

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

48

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

3шт.
