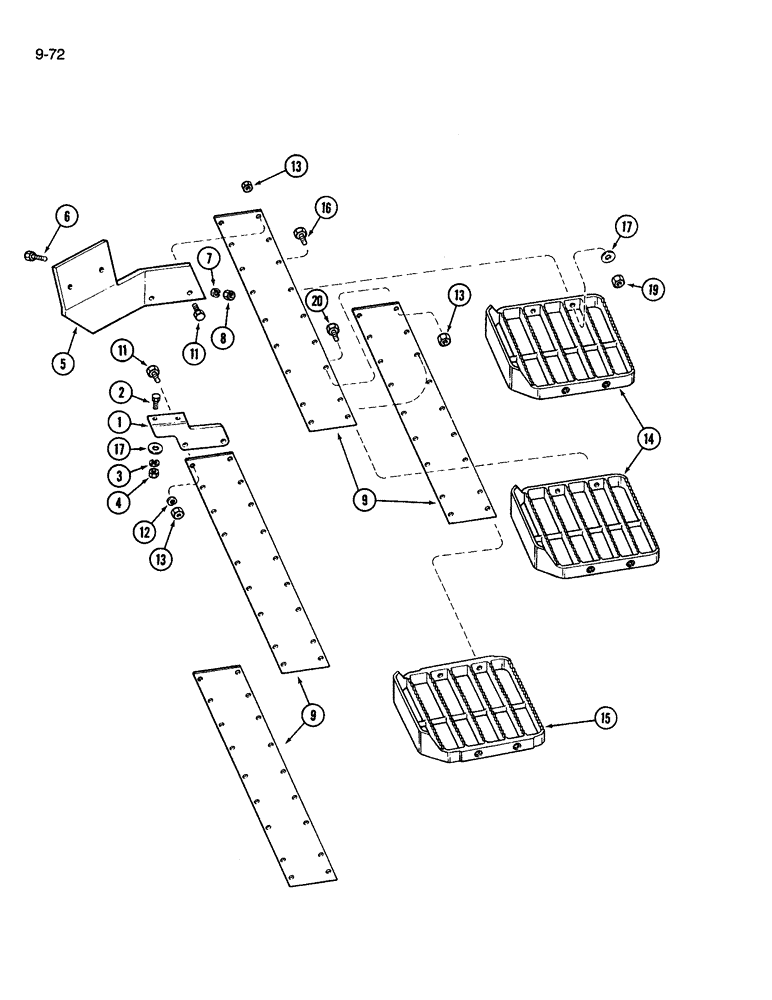

Запчасти Case IH 3594 (9-072) - STEPS (09) - CHASSIS/ATTACHMENTS

1

A177874

BRACKET

PLATE adaptor, step

1шт.

2

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

3

492-11038

LOCK WASHER,3/8"

2шт.

4

425-106

NUT,3/8"-16, Cl 5

2шт.

5

A177356

BRACKET

mounting, step

1шт.

6

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

A185583

PLATE

step side, Replaces A177259 and A177273

4шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

425-106

NUT,3/8"-16, Cl 5

8шт.

14

1970809C1

STEP

foot, steel, Replaces A181776 aluminium

2шт.

15

1970809C1

STEP

foot, steel, Replaces A181777 aluminium

1шт.

16

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

hex, 3/8 NC x 1-1/2 inch

12шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

14шт.

19

425-106

NUT,3/8"-16, Cl 5

12шт.

20

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

4шт.
