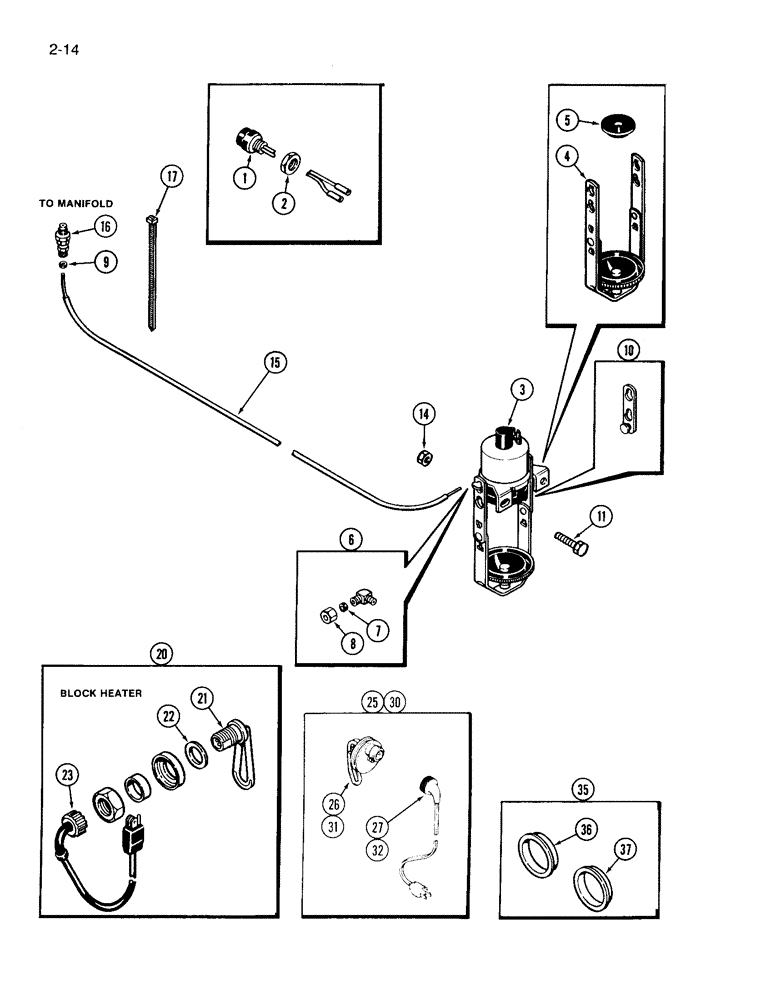

Запчасти Case IH 3594 (2-014) - COLD START ASSISTANCE, 504BDT DIESEL ENGINE (02) - ENGINE

1

A135520

SWITCH

Ether Start

1шт.

2

425-1110

NUT,5/8"-18, G5

Ether start 5/8"-18, G5

1шт.

3

A143381

SOLENOID

ASSEMBLY, Includes Ref. 4 - 8, ether start

1шт.

4

D77648

BAIL

HANGER can, ether start

1шт.

5

395686R1

GASKET

can, ether start

1шт.

6

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Ether start 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

7

222-650

SLEEVE,1/8" Tube, Comp

Tapered, Ether start 1/8" Tube, Comp

1шт.

8

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD, ether start 5/16"-24, 45º Fl, Comp

1шт.

9

222-650

SLEEVE,1/8" Tube, Comp

Tapered, Ether start 1/8" Tube, Comp

1шт.

10

R30812

LINK

extension, hanger, ether start

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch, ether start

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC, Ether start

2шт.

15

A149932

TUBE

ether injection 2006 mm (79 in), start

1шт.

16

A145070

NOZZLE INJECTION

NOZZLE INJECTOR ASSEMBLY, ether start

1шт.

17

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch, ether start

4шт.

20

A155436

RESISTOR

KIT Heater, Order Ref. 25 or 30, Includes Ref. 21, 22 and 23, cylinder block

1шт.

21

NSS

NOT SOLD SEPARAT

ELEMENT heater, cylinder block

1шт.

22

A45114

GASKET

element seal, cylinder block heater

1шт.

23

A44813

CABLE EXTENSION

HEATER CORD ASSEMBLY, cylinder block

1шт.

25

A182017

HEATER ASSY.

KIT Heater, Replaces A155436, U.S.A. only, Includes Ref. 26 and 27, cylinder block

1шт.

26

A182015

COIL

ELEMENT heater, cylinder block

1шт.

27

A44813

CABLE EXTENSION

HEATER CORD ASSEMBLY, cylinder block

1шт.

30

A182020

HEATER ASSY.

KIT Heater, Canada only, Includes Ref. 31 and 32, cylinder block

1шт.

31

A182018

MAKING-UP

ELEMENT heater, cylinder block

1шт.

32

A44813

CABLE EXTENSION

HEATER CORD ASSEMBLY, cylinder block

1шт.

35

A44006

SLEEVE

KIT Sleeve, heater installation, Order components, Includes Ref. 36 and 37, cylinder block

1шт.

36

A44007

SLEEVE

heater, 2-1/16 inch diameter hole, cylinder block

1шт.

37

A44008

SLEEVE

heater, 2-1/8 inch diameter hole, cylinder block

1шт.
