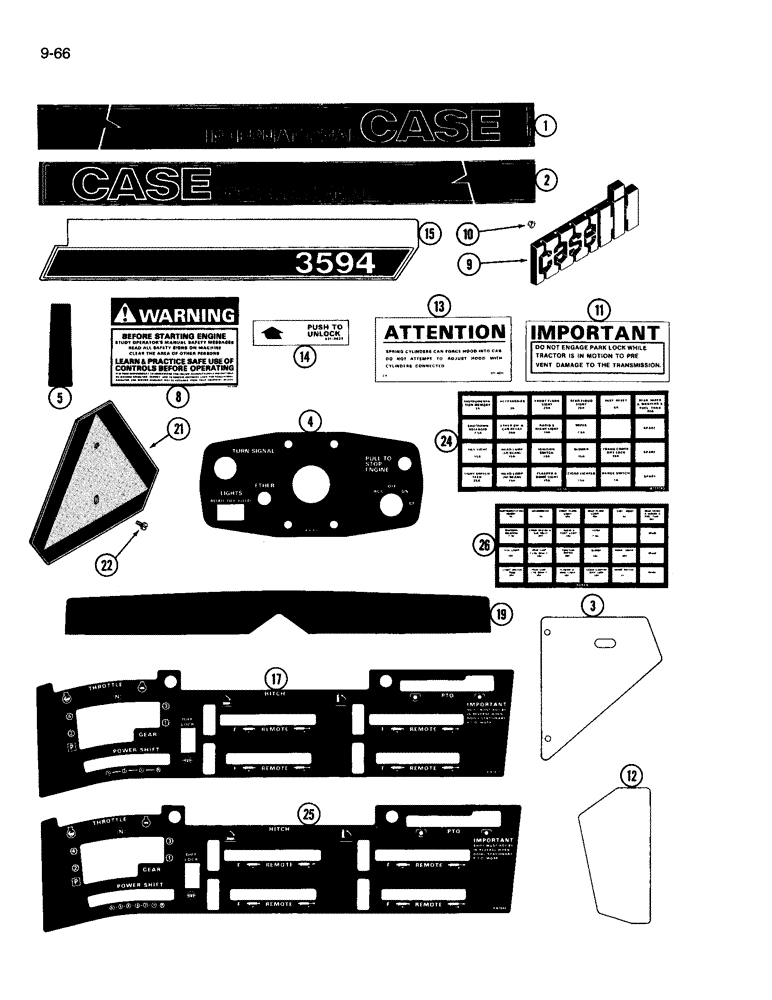

Запчасти Case IH 3594 (9-066) - DECALS, TRACTOR KIT (09) - CHASSIS/ATTACHMENTS

A67647

KIT Decal, tractor, Order components, Includes Ref. 1 - 14

1шт.

1

A181403

DECAL

Case International, right

1шт.

2

A181404

DECAL

Case International, left

1шт.

3

A181392

DECAL

right rear

1шт.

3

A181391

DECAL

left rear

1шт.

4

A167975

DECAL

control panel, on steering column

1шт.

5

321-4142

DECAL

sight line

1шт.

8

321-3705

DECAL

warning, before starting engine

1шт.

9

A181437

EMBLEM CASE/IH

EMBLEM, front, Case IH

1шт.

10

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT push on type, 1/4 inch, plated

2шт.

11

321-5264

DECAL

park locK

1шт.

12

A181390

DECAL

right front

1шт.

12

A181389

DECAL

left front

1шт.

13

321-4621

DECAL

hood tilt adjust

2шт.

14

321-4622

DECAL

instructions, hood unlatch

1шт.

15

A181408

DECAL

3594, right fender panel

1шт.

15

A181407

DECAL

3594, left fender panel, right shown

1шт.

17

A167977

DECAL

console panel, 12 speed

1шт.

19

321-6446

DECAL

cab roof

1шт.

21

D123347

WARNING SIGN

EMBLEM slow moving vehicle

1шт.

22

470-1256

SCREW,Slotted Pan Hd, 1/4"-20 x 3/8"

machine, pan head slotted, 1/4 NC x 3/8 inch

2шт.

24

A177790

DECAL

fuse location, prior to P.I.N. 9944363

1шт.

25

A167980

DECAL

console panel, 24 speed

1шт.

26

A181300

DECAL

fuse location, P.I.N. 99443643 and after

1шт.

A46520

DECAL

KIT Decals, French language, Includes Ref. 3 - 24

1шт.

Kit also includes items listed on Figure 9-068.

1шт.

3

321-5793

DECAL

diesel fuel

1шт.

8

321-6646

DECAL

starting instructions

1шт.

11

321-5789

DECAL park lock

1шт.

13

321-5624

DECAL tilt hood adjusting

2шт.

14

321-5625

DECAL

hood unlatch

1шт.

321-6206

DECAL steering console, note used this application

1шт.

321-5792

DECAL 12 speed chart, note used this application

1шт.

321-5792 12 SPEED CHART, IN ENGLISH 321-5653

1шт.

321-5627

DECAL 12 speed chart, note used this application

1шт.

321-5626

DECAL 8 speed, note used this application

1шт.

321-5861

DECAL fuse location, on firewall

1шт.

321-5735

DECAL

warning, ROPS

1шт.

24

A176278

DECAL

fuse location, prior to P.I.N. 9944363

1шт.
