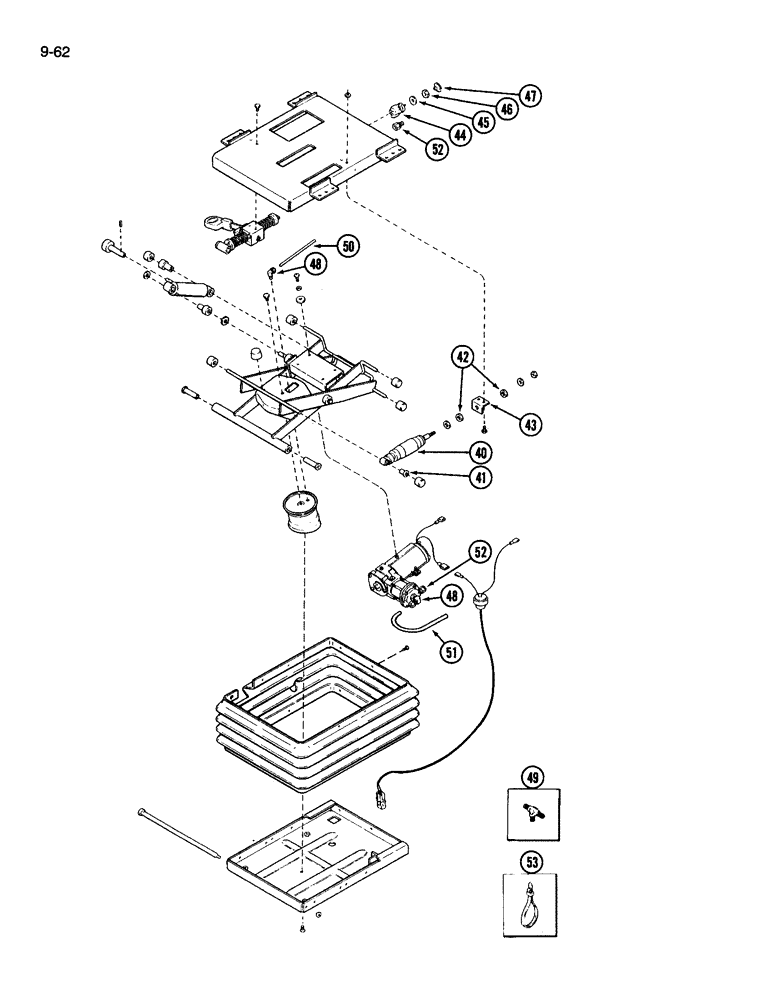

Запчасти Case IH 3594 (9-062) - CLOTH SEAT, AIR SUSPENSION, SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340261C2

SEAT

AIR SUSPENSION SEAT ASSEMBLY, Includes Ref. 40 - 53

1шт.

1990648C3

PACKAGE

KIT Seat Suspension, Includes Ref. 40 - 53

1шт.

1990646C2

PACKAGE

KIT Shock Absorber, Includes Ref. 40 - 43

1шт.

40

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

41

NSS

NOT SOLD SEPARAT

BUSHING shock absorber

1шт.

42

A49679

BUSHING

rubber

2шт.

43

1981845C1

ANGLE

mounting

1шт.

44

1981852C2

IGNITION SWITCH

AIR CONTROL SWITCH ASSEMBLY, Includes Ref. 45, 46 and 47

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

46

NSS

NOT SOLD SEPARAT

NUT hex, 5/8 inch NF

1шт.

47

NSS

NOT SOLD SEPARAT

KNOB switch

1шт.

Part of Air Suspension Knob Kit, P/N 1999692C1

1шт.

1990548C3

PACKAGE

KIT Air Lines and Fittings, Includes Ref. 48 - 53

1шт.

48

NSS

NOT SOLD SEPARAT

ELBOW 90 degree, 1/4 inch tube x 1/8 NPT

2шт.

49

NSS

NOT SOLD SEPARAT

TEE, 1/4 inch tube x 1/4 inch tube x 1/8 NPT

1шт.

50

NSS

NOT SOLD SEPARAT

TUBE nylon, 1/4 x 11-5/8 inch

1шт.

51

NSS

NOT SOLD SEPARAT

TUBE nylon, 1/4 x 28 inch

1шт.

52

NSS

NOT SOLD SEPARAT

ADAPTER, 1/4 inch tube x 1/8 NPT

2шт.

53

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

4шт.

1999692C1

LEVER ASSY & KNOB

KIT Knob, air suspension, Includes Ref. 47, Ref. 22 on Figure 9-058 and Ref. 1 Figure 9-064

1шт.
