Запчасти Case IH 3594 (9-060) - CLOTH SEAT, AIR SUSPENSION, SUSPENSION (09) - CHASSIS/ATTACHMENTS

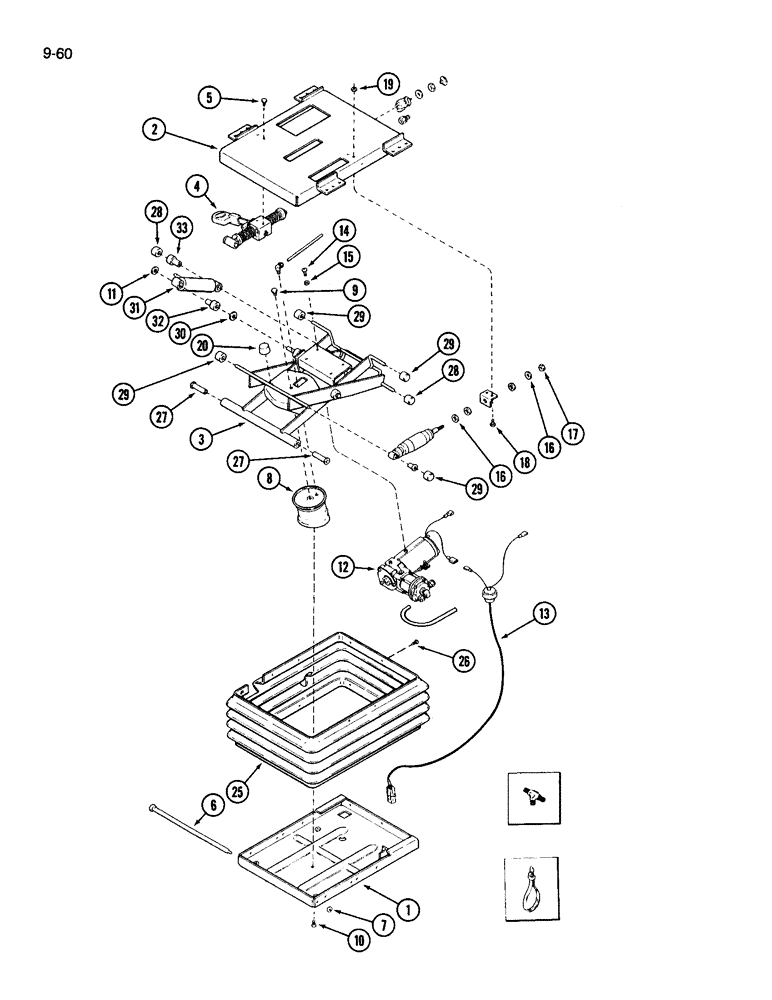

Схема запчастей Case IH 3594 - (9-060) - CLOTH SEAT, AIR SUSPENSION, SUSPENSION (09) - CHASSIS/ATTACHMENTS
20
26
17
5
18
4
27
10
2
13
16
11
1
19
29
6
28
16
29
8
32
25
27
12
28
15
31
33
14
29
9
29
7
3
30

Артикул

Название

Примечание

Количество

1340261C2

SEAT

AIR SUSPENSION SEAT ASSEMBLY, Includes Ref. 1 - 33

1шт.

1990648C3

PACKAGE

KIT Seat Suspension, Includes Ref. 1 - 33

1шт.

1

1981834C1

HOUSING

suspension, lower

1шт.

2

1990642C1

HOUSING

suspension, upper

1шт.

3

1990643C1

FRAME ASSY

SUSPENSION SCISSOR ARM ASSEMBLY

1шт.

4

1990645C1

LATCH

ISOLATOR LATCH ASSEMBLY, fore and aft, See Figure 9-064

1шт.

5

276-24812

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW, SELF TAPPING, hex head, 5/16 NC x 3/4"

2шт.

6

A49529

SHAFT

scissor arm

1шт.

7

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

1шт.

8

1981842C1

SPRING

air

1шт.

9

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

10

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- machine, flat head Phillips, 3/8 NC x 3/4"

1шт.

11

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

1999947C2

COMPRESSOR

KIT Compressor, Includes Ref. 12 - 15

1шт.

12

NSS

NOT SOLD SEPARAT

COMPRESSOR air

1шт.

13

1981848C2

HARNESS

WIRE HARNESS ASSEMBLY

1шт.

14

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- machine, pan head Phillips, No. 8 NC x 3/8"

2шт.

15

495-31022

WASHER,#10

2шт.

16

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

17

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

18

434-48

CARRIAGE BOLT,Sht Sq Nk, 1/4" - 20 x 1/2", Gr 5

Bolt, Carriage, Short NK, 1/4"-20 x 1/2", G5, Full Thd

2шт.

19

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

20

1981849C2

SHOCK ABSORBER

BUMPER rubber

2шт.

1990647C1

PACKAGE

KIT Boot, suspension, Includes Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

BOOT suspension

1шт.

26

700709502

FASTENER

PIN retaining, package of 24

1шт.

1990644C1

PACKAGE

KIT Bearing, Includes Ref. 27, 28 and 29

1шт.

27

NSS

NOT SOLD SEPARAT

BEARING tube

2шт.

28

NSS

NOT SOLD SEPARAT

ROLLER suspension

2шт.

29

NSS

NOT SOLD SEPARAT

SUSPENSION ROLLER ASSEMBLY, with bearing

4шт.

30

A45519

WASHER

flat, 33/64 x 1-1/8 x 1/16 inch

1шт.

1344250C2

KIT

Shock Absorber, Includes Ref. 31, 32 and 33

1шт.

31

NSS

NOT SOLD SEPARAT

ABSORBER shock

1шт.

32

NSS

NOT SOLD SEPARAT

BEARING shock absorber

1шт.

33

NSS

NOT SOLD SEPARAT

BUSHING shock absorber

1шт.

Выбрано товаров: 35
