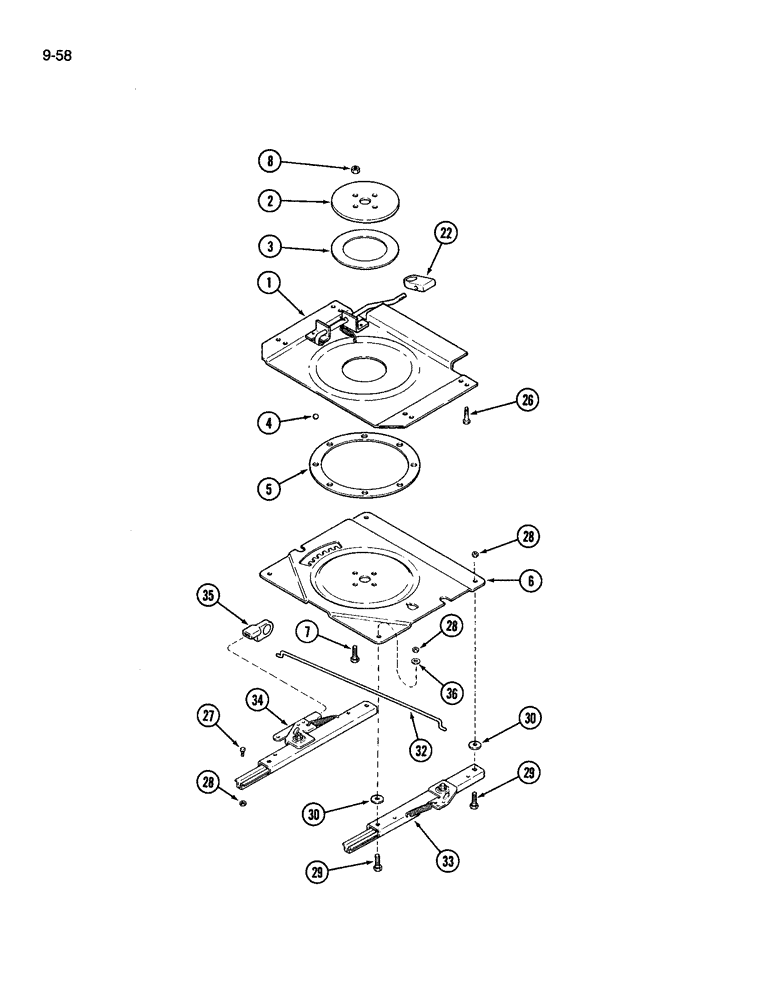

Запчасти Case IH 3594 (9-058) - CLOTH SEAT, AIR SUSPENSION, SWIVEL AND SLIDES (09) - CHASSIS/ATTACHMENTS

1340261C2

SEAT

AIR SUSPENSION SEAT ASSEMBLY, Includes Ref. 1 - 36

1шт.

1344003C3

SEAT SUPPORT

SEAT SWIVEL ASSEMBLY, Includes Ref. 1 - 22

1шт.

1

1999896C1

SEAT SUPPORT

SWIVEL PLATE ASSEMBLY, upper

1шт.

2

1343859C1

RETAINER

swivel

1шт.

3

1343860C1

PLATE

PLATE swivel bearing

1шт.

4

211-214

BALL,1/2" Dia

1/2 inch diameter, chrome alloy steel

8шт.

5

A49555

LARGE PLATE

RETAINER ball

1шт.

6

1343858C1

LARGE PLATE

PLATE swivel, lower

1шт.

7

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

4шт.

22

NSS

NOT SOLD SEPARAT

KNOB swivel

1шт.

Part of Air Suspension Knob Kit, P/N 1999692C1

1шт.

26

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

4шт.

27

117-101

BOLT

BOLT square head, 5/16 NC x 3/4 inch, grade 2

4шт.

28

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

29

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

hex, 5/16 NC x 3/4 inch

4шт.

30

195-81027

WASHER,0.38" ID x 1.12" OD x 0.07" Thk

flat, 3/8 x 1-1/8 x 1/16 inch

4шт.

1344248C1

SLIDE

SEAT SLIDE ASSEMBLY, Includes Ref. 32 - 35

1шт.

32

NSS

NOT SOLD SEPARAT

WIRE slide

1шт.

33

NSS

NOT SOLD SEPARAT

SEAT SLIDE ASSEMBLY, right

1шт.

34

NSS

NOT SOLD SEPARAT

SEAT SLIDE ASSEMBLY, left

1шт.

35

NSS

NOT SOLD SEPARAT

KNOB fore and aft

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

36

195-81005

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

- flat, 3/8 x 7/8 x 5/64 inch

4шт.

1999691C1

PACKAGE,SERVICE

KIT Seat Knob, Includes Ref. 35 and Ref. 3, 4, 8, 9, 14 and 15 on Figure 9-056

1шт.

1999692C1

LEVER ASSY & KNOB

KIT Knob, air suspension, Includes Ref. 22, Ref. 47 on Figure 9-062 and Ref. 1 on Figure 9-064

1шт.
