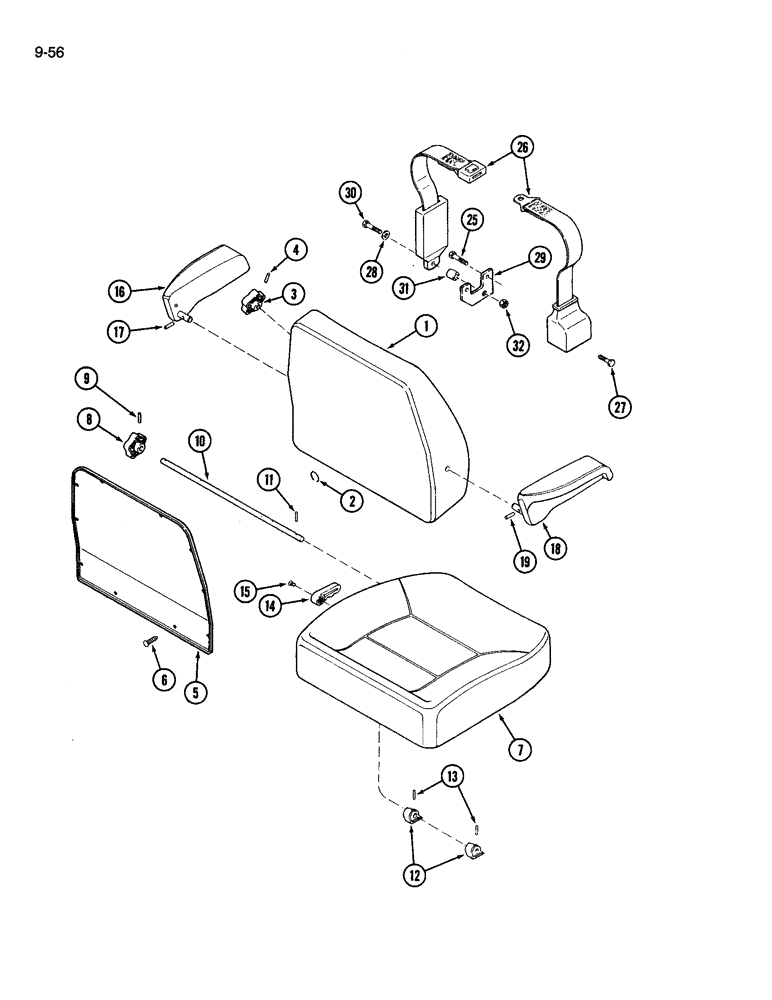

Запчасти Case IH 3594 (9-056) - CLOTH SEAT, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

1340261C2

SEAT

AIR SUSPENSION SEAT ASSEMBLY, Includes Ref. 1 - 32

1шт.

1981813C3

PACKAGE, REPAIR

KIT Cushion, seat and backrest, Includes Ref. 1 - 15

1шт.

1

127369A1

BACKREST COVER

BACKREST CUSHION ASSEMBLY, Includes Ref. 1 - 4

1шт.

1981816C2

PACKAGE,SERVICE

KIT Backrest Pad

1шт.

NSS

NOT SOLD SEPARAT

PAD backrest

1шт.

2

NSS

NOT SOLD SEPARAT

RING hog

22шт.

3

NSS

NOT SOLD SEPARAT

KNOB lumbar adjusting

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

4

138-2024

PIN,5/32" x 1", Coiled

1шт.

1981820C2

PACKAGE, REPAIR

KIT Backrest Cover, Includes Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

COVER backrest

1шт.

6

1999693C1

KIT

RETAINER seat back, package of 12

1шт.

700712452

CUSHION, SEAT

SEAT CUSHION ASSEMBLY, Includes Ref. 7 - 15

1шт.

7

1981815C2

CUSHION, SEAT

CUSHION seat

1шт.

8

NSS

NOT SOLD SEPARAT

KNOB seat tilt

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

9

138-2024

PIN,5/32" x 1", Coiled

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

10

NSS

NOT SOLD SEPARAT

SHAFT cam

1шт.

11

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

12

NSS

NOT SOLD SEPARAT

CAM seat tilt

2шт.

13

NSS

NOT SOLD SEPARAT

PIN retaining

2шт.

14

NSS

NOT SOLD SEPARAT

LEVER backrest tilt

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

15

NSS

NOT SOLD SEPARAT

SCREW machine

1шт.

Part of Seat Knob Kit, P/N 1999691C1

1шт.

1981818C1

ARMREST

KIT Armrest, left, Includes Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ARMREST seat, left

1шт.

17

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

1974703C2

ARMREST ASSY.

KIT Armrest, right, Includes Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

ARMREST seat, right

1шт.

19

NSS

NOT SOLD SEPARAT

PIN retaining

1шт.

1344158C1

SET

KIT Seat Belt, Order components, Includes Ref. 25 - 32

1шт.

25

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

26

1343982C1

SAFETY BELT

SAFETY BELT

1шт.

27

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

28

395-11053

WASHER,0.53" ID x 1.06" OD x 0.1" Thk

flat, 17/32 x 1-1/16 x 3/32 inch

2шт.

29

1975957C1

BRACKET

seat belt

1шт.

30

326-732

BOLT,Hex, 7/16" - 14 x 2", Gr 8

1шт.

31

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

seat belt

1шт.

32

131-1217

LOCK NUT,7/16"-14, GC

NUT hex, self-locking, 7/16 inch NC

1шт.

1999691C1

PACKAGE,SERVICE

KIT Seat Knob, Includes Ref. 3, 4, 8, 9, 14 and 15 and Ref. 35 on Figure 9-058

1шт.
