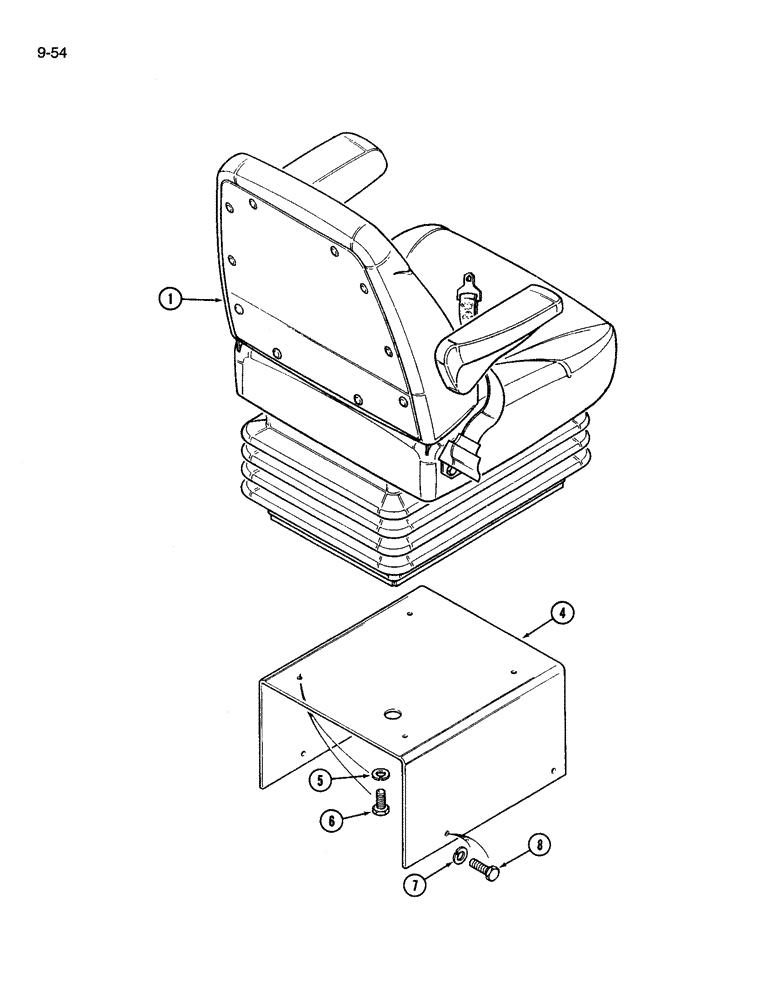

Запчасти Case IH 3594 (9-054) - CLOTH SEAT, AIR SUSPENSION (09) - CHASSIS/ATTACHMENTS

1

1340261C2

SEAT

AIR SUSPENSION SEAT ASSEMBLY, See Figures 9-056 through 9-064

1шт.

4

1975275C1

CHANNEL

SEAT MOUNTING CHANNEL ASSEMBLY

1шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.
