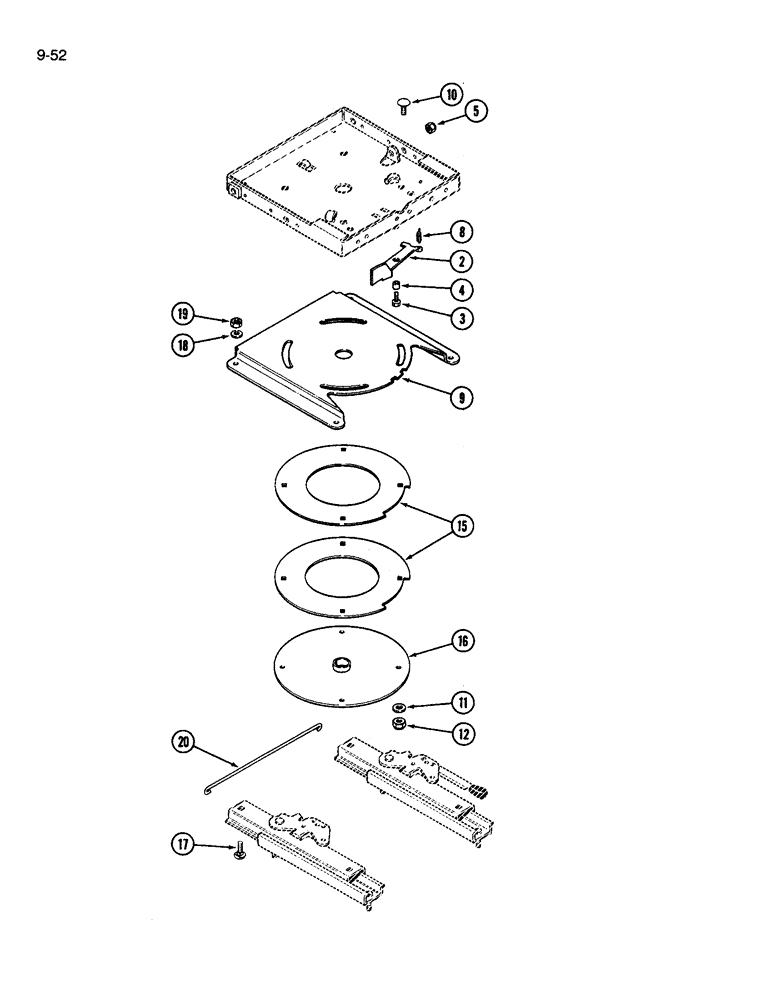

Запчасти Case IH 3594 (9-052) - SEAT SWIVEL KIT (09) - CHASSIS/ATTACHMENTS

A165295

KIT Swivel, seat, machinery item, Includes Ref. 2 - 20

1шт.

2

A48225

HANDLE

swivel

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

A48224

BUSHING

SPACER swivel handle

1шт.

5

129-775

NUT

weld, self-locking, 3/8 inch NF

1шт.

8

A45521

SPRING

swivel handle

1шт.

9

A45582

PLATE

swivel handle

1шт.

10

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

4шт.

11

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

4шт.

12

232-1446

NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

15

A45514

DISC

BEARING swivel

2шт.

16

A45526

PLATE

bottom swivel

1шт.

17

411-516

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

4шт.

18

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

19

129-770

NUT,3/8"-16, G5

hex, 3/8 inch NC

4шт.

20

A45524

ROD

connecting, latch

1шт.
