Запчасти Case IH 3594 (2-012) - AIR CLEANER (02) - ENGINE

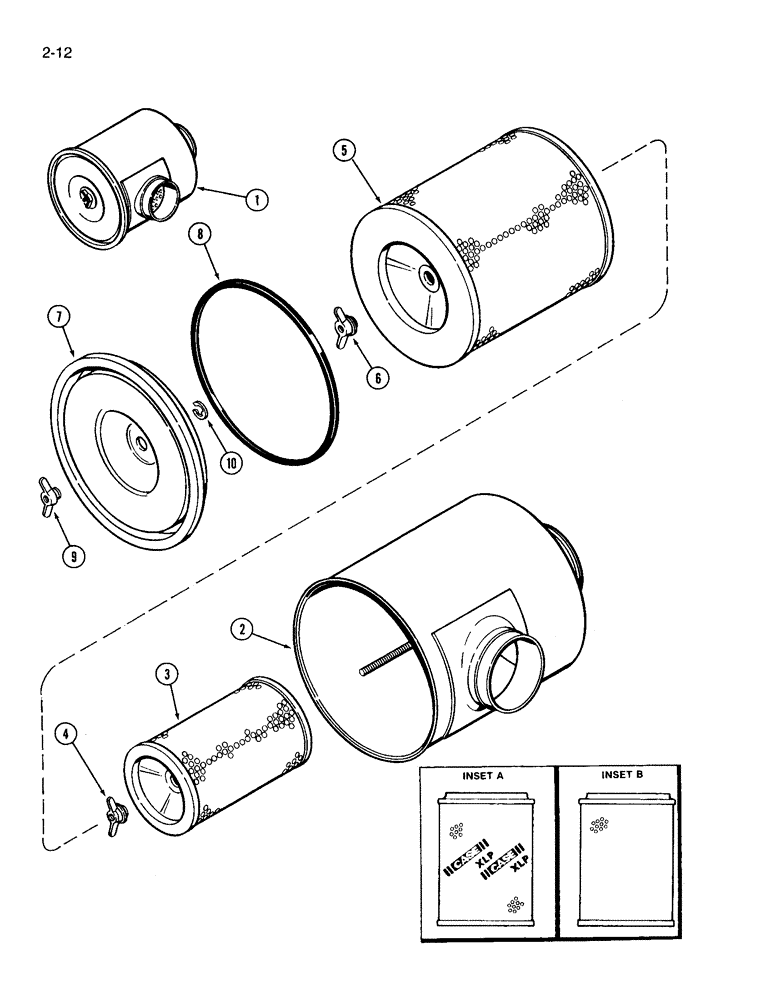

Схема запчастей Case IH 3594 - (2-012) - AIR CLEANER (02) - ENGINE
2
9
7
5
1
6
4
8
3
10

Артикул

Название

Примечание

Количество

1

A147020

CLEANER

AIR CLEANER ASSEMBLY, Includes Ref. 2 - 10

1шт.

2

NSS

NOT SOLD SEPARAT

BODY air cleaner

1шт.

3

A47146

AIR FILTER

ELEMENT inner

1шт.

4

D78354

WING NUT

NUT wing, inner element

1шт.

5

A47145

AIR FILTER

ELEMENT outer, See Inset A

1шт.

5

A47145

AIR FILTER

ELEMENT outer, See Inset B

1шт.

6

A47143

NUT

wing, outer element

1шт.

7

A47142

COVER

ASSEMBLY CLEANER, Includes Ref. 8, 9 and 10

1шт.

8

A47103

GASKET

cover

1шт.

9

A47102

WING NUT

wing, cover

1шт.

10

A27812

CIRCLIP,#87, .668" Dia, E-Type

Ring, Retaining, #87, .668" Dia, E-Type

1шт.

Выбрано товаров: 11
