Запчасти Case IH 3594 (9-050) - CLOTH SEAT, AIR/OIL SUSPENSION, CYLINDER ASSEMBLY (09) - CHASSIS/ATTACHMENTS

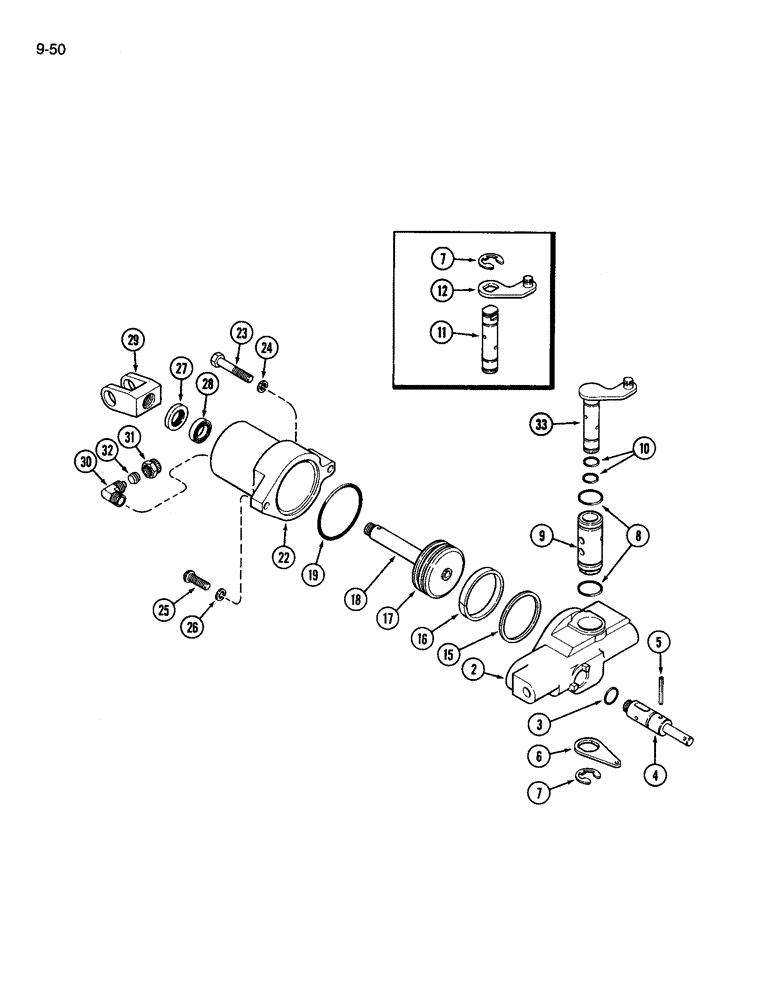

Схема запчастей Case IH 3594 - (9-050) - CLOTH SEAT, AIR/OIL SUSPENSION, CYLINDER ASSEMBLY (09) - CHASSIS/ATTACHMENTS
29
24
18
17
33
10
23
19
15
8
7
27
31
25
4
30
28
11
5
26
6
2
32
22
9
7
16
3
12

Артикул

Название

Примечание

Количество

A49828

CYLINDER

MODULE CYLINDER ASSEMBLY, Includes Ref. 2 - 33

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING cylinder

1шт.

3

238-6113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 6, 90 Duro

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

4

A49782

SPOOL

damper

1шт.

5

NSS

NOT SOLD SEPARAT

PIN roll

1шт.

6

A49780

LEVER

push valve

1шт.

7

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, #62, .480" Dia, E-Type

2шт.

8

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

9

NSS

NOT SOLD SEPARAT

VALVE push

1шт.

10

238-5111

O-RING,0.103" Thk x 0.424" ID, -111, Cl 5, 75 Duro

2шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

11

A49781

SPOOL

push valve, Order 1977961C1

1шт.

12

A49783

LEVER

push valve spool, Order 1977961C1

1шт.

15

A49687

RING

SEAL piston ring

1шт.

16

A49685

RING

piston wear

1шт.

17

238-5137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 5, 75 Duro

1шт.

18

NSS

NOT SOLD SEPARAT

PISTON cylinder

1шт.

19

238-5142

O-RING,0.103" Thk x 2.362" ID, -142, Cl 5, 75 Duro

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

22

NSS

NOT SOLD SEPARAT

HOUSING cylinder barrel

1шт.

23

NSS

NOT SOLD SEPARAT

BOLT hex, retaining

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

25

NSS

NOT SOLD SEPARAT

BOLT special, retaining

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER lock

1шт.

27

A49684

WIPER SEAL

WIPER piston rod

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

28

A49686

SEAL

piston rod

1шт.

Part of O-ring and Seal Kit, P/N 1977388C1

1шт.

29

NSS

NOT SOLD SEPARAT

CYLINDER CLEVIS ASSEMBLY

1шт.

30

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

brass 90º, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

1шт.

31

A49784

CONNECTOR, ELEC

CONNECTOR special nut, Includes Ref. 32

1шт.

32

NSS

NOT SOLD SEPARAT

SLEEVE elbow

1шт.

33

1977961C1

LEVER ASSY.

SPOOL LEVER ASSEMBLY

1шт.

1977388C1

GASKET KIT

KIT O-ring and Seal, Includes Ref. 3, 8, 10, 15, 16, 17, 19, 27 and 28

1шт.

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Not shown

1шт.

Выбрано товаров: 37
