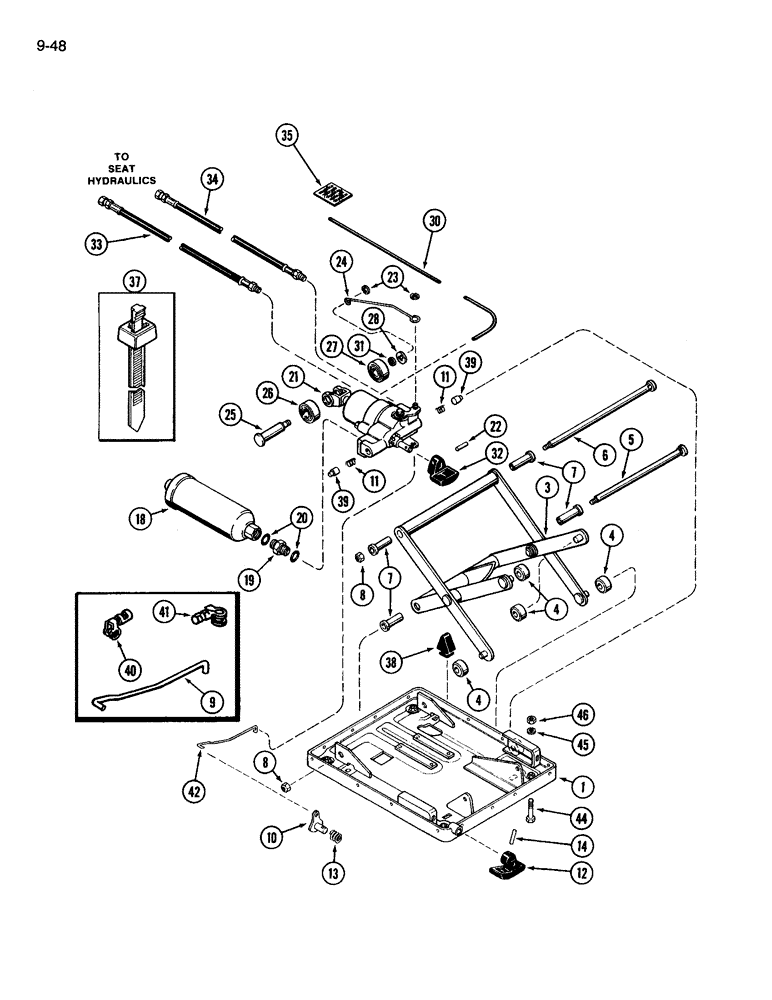

Запчасти Case IH 3594 (9-048) - CLOTH SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

AIR/OIL SUSPENSION SEAT ASSEMBLY, Order seat 1340261C2 and channel 1975275C1, See Figure 9-054, Includes Ref. 1 - 42

1шт.

1

A49524

HOUSING

SUSPENSION HOUSING ASSEMBLY, lower

1шт.

3

A49526

ARM

SUSPENSION ARM ASSEMBLY

1шт.

4

A49527

ROLLER

suspension

4шт.

5

A49528

SHAFT

torque tube

1шт.

6

A49529

SHAFT

scissor arm

1шт.

7

A47760

BUSHING

shaft

4шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

2шт.

9

A49532

CABLE

WIRE control, suspension, Order 1971234C1

1шт.

10

A49535

LEVER

HEIGHT ADJUSTMENT CONTROL ASSEMBLY

1шт.

11

A49537

SPRING

control

2шт.

12

A49829

HANDLE

height adjustment

1шт.

13

A49538

SPRING

control

1шт.

14

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

NLS

NO LONGER SERVICED

FINAL HYDRAULIC MODULE ASSEMBLY, Includes Ref. 18 - 35

1шт.

18

A49617

ACCUMULATOR

module

1шт.

19

A49620

FITTING

UNION straight, Includes Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

21

REF

INSTRUCTION

MODULE CYLINDER ASSEMBLY, See Figure 9-050

1шт.

22

138-2057

PIN,5/32" x 5/8", Coiled

1шт.

23

A49623

RING, SNAP

RING retaining

2шт.

24

A49615

ROD

linkage, valve

1шт.

25

A49613

SHAFT

cam roller

1шт.

26

121727A1

ROLLER BEARING,17mm ID x 44.45mm OD x 12.7mm W

BEARING roller

2шт.

27

A49616

NEEDLE BEARING,16.99mm ID x 40mm OD x 20mm W

BEARING follower, cam

1шт.

28

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

30

A49609

HOSE,0.38" ID x 39.00"

Drain, Order A167912

1шт.

31

95-81077

WASHER,0.39" ID x 0.62" OD x 0.07" Thk

flat, 25/64 x 5/8 x 1/16 inch

1шт.

32

A49827

BUTTON

KNOB damper valve

1шт.

33

A176631

HOSE ASSY.,6.35 mm ID x 63.00 mm, SAE100R1

6.35 mm ID x 63.00 mm, SAE 100R1 - Pressure, Seat

1шт.

34

A176632

HOSE ASSY.

HOSE return, seat

1шт.

35

A49621

DECAL

LABEL supply, pressure

1шт.

37

L18337

CABLE TIE,9.95"-12.1" lg

STRAP tie, nylon, 15 inch

1шт.

38

A49530

INSULATOR BLOCK

BUMPER suspension

2шт.

39

A49531

PIN

trunnion

2шт.

40

A49533

HOSE

CLIP retaining, left, Order 1971234C1

1шт.

41

A49534

CLIP

retaining, right, Order 1971234C1

1шт.

42

1971234C1

CLIP

WIRE control, suspension

1шт.

44

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

4шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

46

131-205

LOCK NUT,5/16"-18

NUT heavy hex, self-locking, 5/16 inch NC

4шт.
