Запчасти Case IH 3594 (9-044) - CLOTH SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

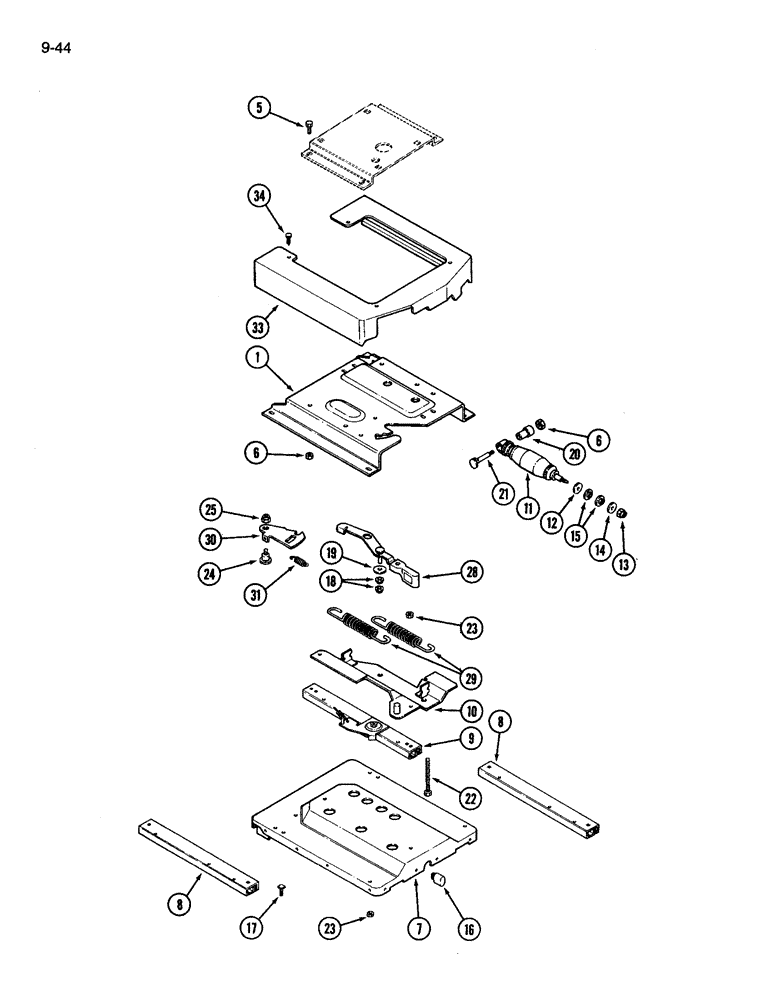

Схема запчастей Case IH 3594 - (9-044) - CLOTH SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS
28
23
5
30
13
18
14
10
33
16
34
7
29
6
15
11
23
25
21
8
1
9
8
12
31
6
20
22
19
17
24

Артикул

Название

Примечание

Количество

A181028

SEAT

AIR/OIL SUSPENSION SEAT ASSEMBLY, Order seat 1340261C2 and channel 1975275C1, See Figure 9-054, Includes Ref. 1 - 34

1шт.

A49818

HOUSING

SEAT ISOLATOR ASSEMBLY, Includes Ref. 1 - 31

1шт.

1

A49820

PLATE ASSY.

PLATE top

1шт.

5

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

4шт.

7

A49539

CLIP

HOUSING isolator, upper

1шт.

8

A49540

SLIDE

ISOLATOR SLIDE ASSEMBLY

2шт.

9

1974664C2

SLIDE

ISOLATOR SLIDE ASSEMBLY, with latch

1шт.

10

A49819

BRACKET

mounting, shock absorber

1шт.

11

1990646C1

SHOCK ABSORBER

ABSORBER shock, isolator

1шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

13

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

14

A49678

WASHER

flat, 21/64 x 1 x 5/64 inch

1шт.

15

A49679

BUSHING

rubber

2шт.

16

A49549

INSULATOR BLOCK

BUMPER isolator

2шт.

17

117-101

BOLT

BOLT square head, 5/16 NC x 3/4 inch, grade 2

5шт.

18

131-413

PUSH-ON NUT,Rd Flat Push, 1/4" x 17/32"

NUT push-on type, 1/4 x 17/32 inch

2шт.

19

495-81286

WASHER,.281" x 1 1/8" x .060"

- flat, 9/32 x 1-1/8 x 1/16 inch

1шт.

20

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

shock absorber

1шт.

21

A45056

STEP BOLT

BOLT shoulder

1шт.

22

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

23

131-351

LOCK NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

12шт.

24

A49546

BOLT

shoulder

1шт.

25

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

1шт.

28

A49821

HANDLE

isolator

1шт.

29

A49823

SPRING

shock absorber

1шт.

30

A49547

LATCH

isolator

1шт.

31

A49548

SPRING

latch

1шт.

33

A49816

CABLE ASSY.

SHROUD isolator

1шт.

34

A49622

CLIP

retaining

4шт.
