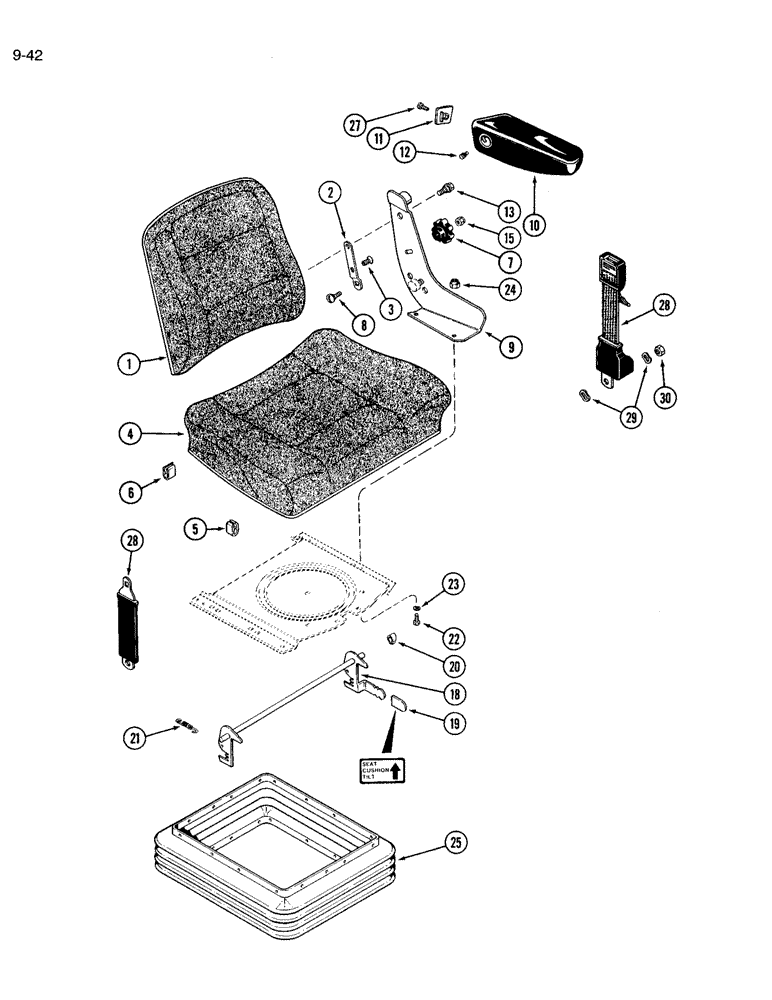

Запчасти Case IH 3594 (9-042) - CLOTH SEAT, AIR/OIL SUSPENSION (09) - CHASSIS/ATTACHMENTS

A181028

SEAT

AIR/OIL SUSPENSION SEAT ASSEMBLY, Order seat 1340261C2 and channel 1975275C1, See Figure 9-054, Includes Ref. 1 - 30

1шт.

1330898C1

CUSHION

KIT Seat Cushion, Order 1990559C1, Includes Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION backrest

1шт.

2

A48343

LINK

tilt, backrest

2шт.

3

473-13816

SCREW,FLAT, 3/8" - 16 x 1"

machine, flat head slotted, 3/8 NC x 1 inch

2шт.

4

NSS

NOT SOLD SEPARAT

CUSHION seat

1шт.

5

N9034

SEAT

CLIP retaining, seat cushion

2шт.

6

N6674

CLIP

retaining, seat cushion

2шт.

7

A45487

BUTTON

KNOB tilt, backrest

2шт.

8

A45527

CARRIAGE BOLT

retaining, link

2шт.

9

A49517

BRACKET

armrest, right

1шт.

9

A49516

BRACKET

armrest, left, shown

1шт.

10

A49515

ARMREST

seat, right

1шт.

10

A49514

ARMREST

seat, left, shown

1шт.

11

A45584

COVER

PLATE cover, right armrest

1шт.

11

A45583

PLATE

cover, left armrest, shown

1шт.

12

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

13

A48346

BOLT

hex, special

2шт.

13

A47781

BOLT,Hex Flg, 1/2" - 13 x 1.25", Gr 5

BOLT special

2шт.

15

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

2шт.

18

A49518

LEVER

SEAT TILT ASSEMBLY

1шт.

19

A47347

CAP

tilt lever

1шт.

20

A49519

SPACER

lever

2шт.

21

NLS

NO LONGER SERVICED

tension, tilt lever

2шт.

22

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

23

A47352

WASHER

wave, 1-1/8 inch ID

4шт.

24

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

4шт.

25

A49618

BOOT

rubber

1шт.

27

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW self-tapping, pan head slotted, No. 10-16 x 5/8 inch

2шт.

28

A46982

SAFETY BELT

SAFETY BELT

1шт.

29

A46987

WASHER

wave

4шт.

30

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self-locking, 1/2 inch NC

2шт.
