Запчасти Case IH 3594 (9-040) - VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

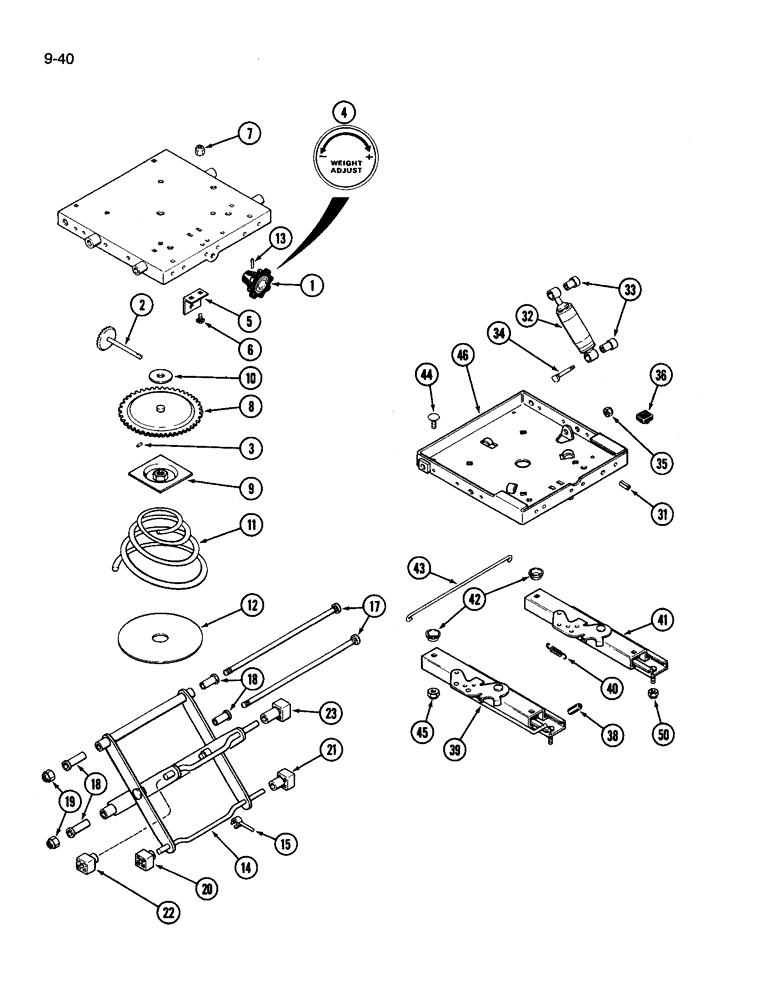

Схема запчастей Case IH 3594 - (9-040) - VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS
23
13
14
8
7
36
40
6
10
33
50
43
45
39
18
5
31
41
12
3
44
17
19
35
11
15
18
46
34
32
20
38
9
4
22
42
2
21
1

Артикул

Название

Примечание

Количество

A177457

SEAT

VINYL SEAT AND SUSPENSION ASSEMBLY, without swivel, Includes Ref. 1 - 46

1шт.

1

A45508

BUTTON

KNOB adjustment, weight

1шт.

2

A45513

GEAR

weight adjusting

1шт.

3

17141R1

LOCK PIN,5/32" x 1", Slotted

Pin, 5/32" x 1", Slotted

1шт.

4

A47778

DECAL

adjusting, weight

1шт.

5

A45531

BRACKET

shaft

1шт.

6

111-107

CARRIAGE BOLT,Short NK, 1/4"-20 x 1/2", G2

BOLT round head, square neck, 1/4 NC x 1/2 inch, grade 2

2шт.

7

231-5344

FLANGE NUT,Flg, 1/4"-20

NUT, LOCK, Flg, 1/4"-20

2шт.

8

A45505

GEAR

weight adjusting

1шт.

9

A45504

SPRING WASHER

spring

1шт.

10

D82834

WASHER

thrust

1шт.

11

A45497

SPRING

suspension, weight

1шт.

12

A45530

PAD

spring

1шт.

13

138-2024

PIN,5/32" x 1", Coiled

1шт.

14

A47759

ARM

WEIGHT ARM ASSEMBLY

1шт.

15

A49160

INDICATOR

ride height

1шт.

17

112884A1

SHAFT,368mm L

bearing

2шт.

18

A47760

BUSHING

shaft

4шт.

19

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, lock, 1/2 inch NC, plated

4шт.

20

A45512

BLOCK

slider, 1-3/16 inch

1шт.

21

A45516

BLOCK

slider, 2-3/16 inch

1шт.

22

A45515

BLOCK

slider, 1-9/16 inch

1шт.

23

CASA45517

BLOCK

slider, 2-9/16 inch

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

ABSORBER shock, seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

shock absorber

2шт.

34

A45056

STEP BOLT

BOLT shoulder

1шт.

35

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC

1шт.

36

A45054

BUMPER,Neoprene

seat

2шт.

A49654

ADJUSTER

SEAT ADJUSTER ASSEMBLY, Includes Ref. 38 - 46

1шт.

38

A45481

HANDLE

GRIP lever, plastic

1шт.

39

A49653

SLIDE

SEAT MOUNTING SLIDE ASSEMBLY, right, Includes Ref. 40

1шт.

40

L35503

SPRING

return, slide

1шт.

41

A45523

SLIDE

SEAT MOUNTING SLIDE ASSEMBLY, left, Includes Ref. 40

1шт.

42

A45111

SPACER

slides

4шт.

43

A48182

ROD

connecting, latch

1шт.

44

111-220

CARRIAGE BOLT,Short NK, 5/16"-18 x 7/8", G2

BOLT round head square neck, 5/16 NC x 7/8 inch

2шт.

44

A47171

CARRIAGE BOLT

BOLT lower base

2шт.

45

131-351

LOCK NUT,5/16"-18, GA

NUT hex, self-locking, 5/16 inch NC

4шт.

46

A48181

BASE

lower

1шт.

50

131-205

LOCK NUT,5/16"-18

NUT heavy hex, self-locking, 5/16 inch NC

4шт.

Выбрано товаров: 41
