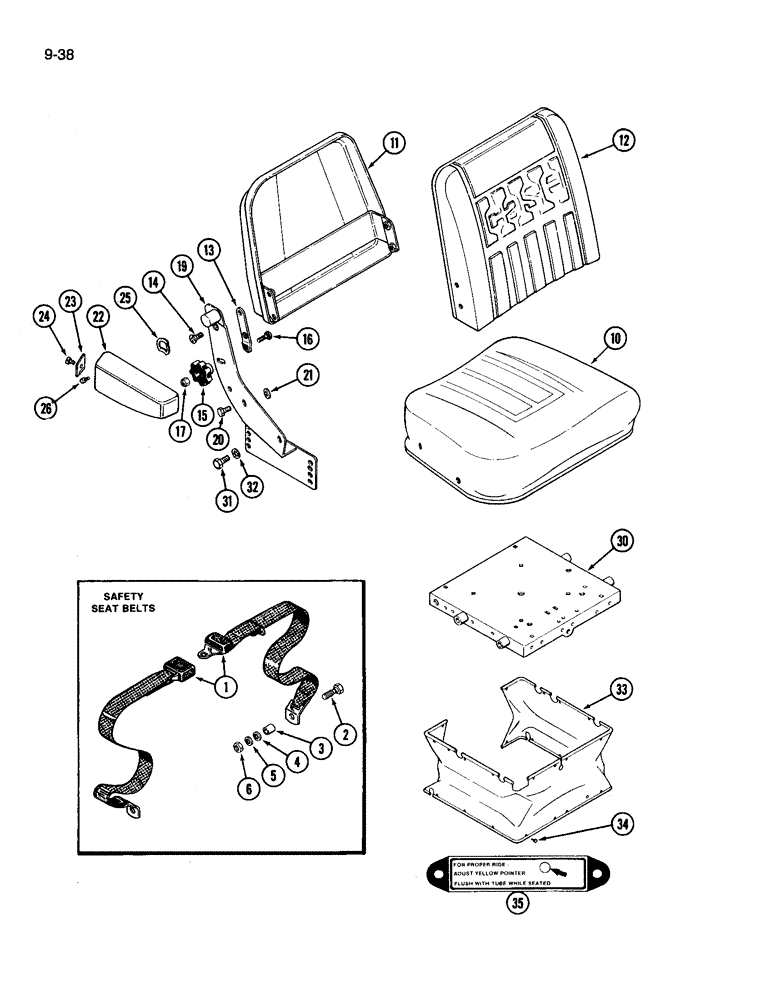

Запчасти Case IH 3594 (9-038) - SEAT BELT, VINYL SEAT, WITHOUT SWIVEL (09) - CHASSIS/ATTACHMENTS

1

A160404

SAFETY BELT

BELT safety seat

1шт.

2

A61946

STEP BOLT

BOLT shoulder, seat belt

2шт.

3

A60907

BUSHING

SPACER seat belt anchor

2шт.

4

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16"), Seat belt 7/16", SAE

2шт.

5

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, , Seat belt 7/16"

2шт.

6

425-117

NUT,7/16"-20, G5

hex, 7/16 inch NF, seat belt

2шт.

A177457

SEAT

VINYL SEAT AND SUSPENSION ASSEMBLY, Includes Ref. 10 - 35, without swivel

1шт.

1987124C1

CUSHION, SEAT

SEAT CUSHION KIT, without swivel, Includes Ref. 10 - 14

1шт.

10

NSS

NOT SOLD SEPARAT

SEAT CUSHION ASSEMBLY, without swivel

1шт.

11

NSS

NOT SOLD SEPARAT

PAN backrest, without swivel

1шт.

12

NSS

NOT SOLD SEPARAT

BACKREST CUSHION ASSEMBLY, without swivel

1шт.

13

A48343

LINK

tilt, backrest, without swivel

2шт.

14

187-1300

SELF-TAP SCREW,Hex, 3/8" - 18 x 1"

SCREW self-tapping, flat phillips, 3/8 NC x 1 inch, without swivel

2шт.

15

A45487

BUTTON

KNOB tilt, backrest, without swivel

2шт.

16

A45527

CARRIAGE BOLT

retaining, link, without swivel

2шт.

17

230-4216

LOCK NUT,3/8"-16, GA

NUT hex, self-locking, 3/8 inch NC, without swivel

2шт.

19

A49656

SUPPORT

BRACKET, right, shown, without swivel

1шт.

19

NLS

NO LONGER SERVICED

BRACKET, left, without swivel

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, without swivel

4шт.

21

A45116

WASHER

SPACER cushion, without swivel

4шт.

1987125C1

ARMREST ASSY.

KIT Armrest, seat, Includes Ref. 22 - 26, without swivel

1шт.

22

A45489

ARMREST

seat, right, shown, without swivel

1шт.

22

A45488

ARMREST

seat, left, without swivel

1шт.

23

A45584

COVER

PLATE cover, right armrest, shown, without swivel

1шт.

23

A45583

PLATE

cover, left armrest, without swivel

1шт.

24

263-50510

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW self-tapping, pan head slotted, No. 10-16 x 5/8 inch, without swivel

2шт.

25

A47352

WASHER

wave, 1-1/8 inch ID, without swivel

2шт.

26

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, , Armrest stop, without swivel Hex Soc Hd, 1/4"-20 x 3/8"

2шт.

30

A46726

HOUSING

PLATE upper housing, without swivel

1шт.

31

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

hex, 1/2 NC x 1-1/4 inch, plated, without swivel

4шт.

32

193-92

LOCK WASHER,Int Tooth, 5/16"

WASHER internal lock, 5/16 inch, without swivel

4шт.

33

A45576

BOOT

COVER suspension, without swivel

1шт.

34

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

plastic round head, 1/4 hole size x 7/8 inch head dia, without swivel

24шт.

35

A47778

DECAL

instruction, without swivel

1шт.
