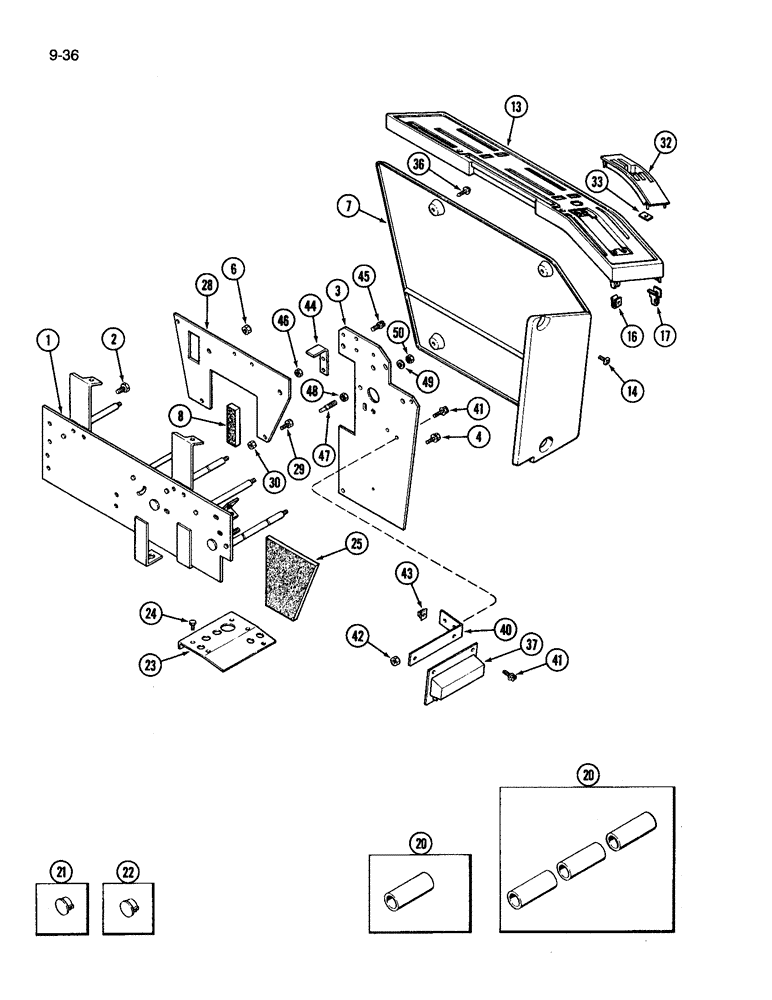

Запчасти Case IH 3594 (9-036) - CONTROL CONSOLE (09) - CHASSIS/ATTACHMENTS

1

A181983

SUPPORT

control console, Replaces A177242

1шт.

2

281-44910

SELF-TAP SCREW,Hex Wash Hd, 3/8" x 5/8"

SCREW self-tapping, hex washer head, 3/8 NC x 5/8 inch

5шт.

3

A176862

SUPPORT

gear shift shaft

1шт.

4

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

6

131-1306

JAM NUT,Jam, 3/8"-16

NUT hex, jam, self-locking, 3/8 inch NC

5шт.

7

A169853

GUARD

SHROUD console

1шт.

8

A169860

FOAM

padding, console shroud

2шт.

13

A165283

COVER

console, See Figure 9-XX for decal

1шт.

14

281-16712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW self-tapping, hex washer head, 1/4 NC x 3/4 inch

6шт.

16

131-627

NUT,Tinn, U, 1/4"-20

U-type, 1/4 inch NC

6шт.

17

131-862

SPRING NUT,Tinn, U, #10

U-type, No. 10, no threads

8шт.

20

A67318

BUSHING

SPACER control lever, See Insets

1шт.

21

353-406

PLUG,Dome, .625" hole, Nylon

nylon, 5/8 inch

3шт.

22

353-410

PLUG,Dome, .875" hole, Nylon

- nylon, 7/8 inch

2шт.

23

A145830

PLATE

mounting, shift cable

1шт.

24

276-55916

SELF-TAP SCREW,Hex Hd, 3/8"-16 x 1"

SCREW self-tapping, hex head, 3/8 NC x 1 inch

5шт.

25

A147799

FOAM

console shift support

1шт.

28

A166534

SUPPORT

remote shaft

1шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

30

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

2шт.

32

A164753

COVER

INSERT shifter cover

1шт.

33

131-437

LOCK NUT,Self-Threadin, 5/16"

NUT self-threading, 5/32 inch

4шт.

36

F64519

SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"

SCREW tapping, round x-recess, No. 10-16 x 3/4 inch, Order (1) washer F64315 and (1) screw 265-16512

5шт.

37

A164734

BOARD

RELAY BOARD ASSEMBLY, 12 speed transmission, Order A177703

1шт.

37

A177703

RELAY

BOARD ASSEMBLY, 24 speed transmission

1шт.

40

A162959

BRACKET

mounting, relay board

1шт.

41

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

4шт.

42

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

43

131-627

NUT,Tinn, U, 1/4"-20

U-type, 1/4 inch NC

2шт.

44

A176860

BRACKET

range lever stop, 12 speed transmission

1шт.

44

A177072

BRACKET

range lever stop, 24 speed transmission

1шт.

45

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

46

425-104

NUT,1/4"-20, Cl 5

hex, 1/4 inch NC

2шт.

47

A176565

STRUT

STUD shift stop

1шт.

48

131-1281

LOCK NUT,Jam, 5/16"-18

NUT hex, jam, self-locking, 5/16 inch NC

1шт.

49

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

50

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
