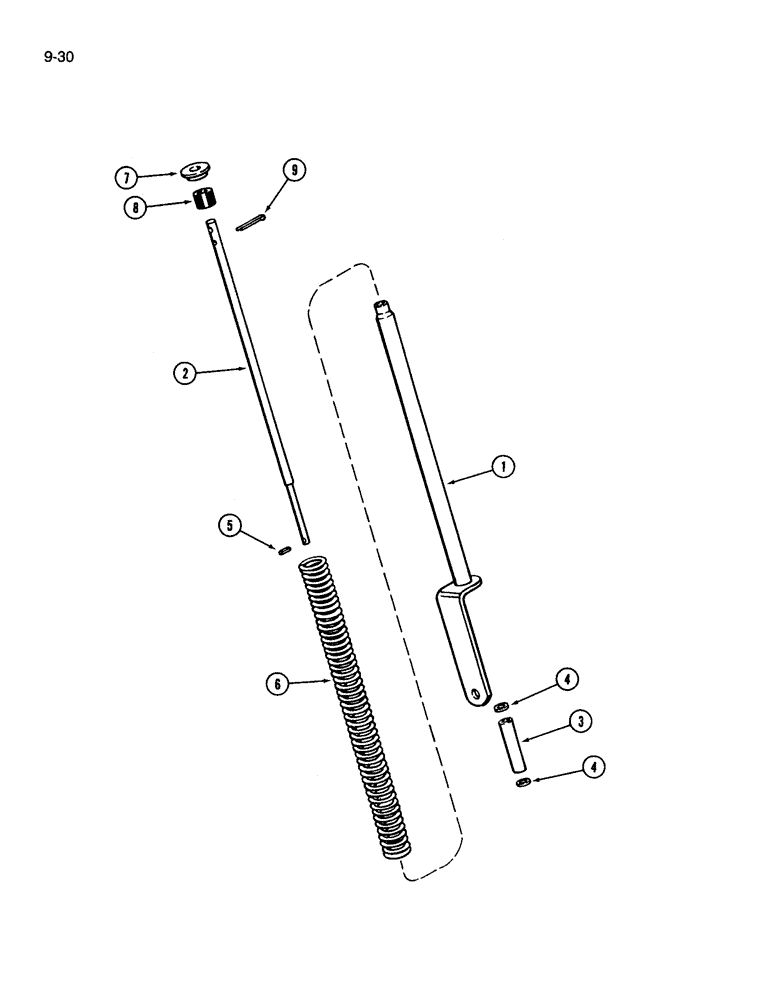

Запчасти Case IH 3594 (9-030) - HOOD LIFT CYLINDER (09) - CHASSIS/ATTACHMENTS

A147817

GAS STRUT,952.5mm Extended, 609.6mm Compressed

HOOD LIFT CYLINDER ASSEMBLY, Includes Ref. 1 - 9

2шт.

1

NSS

NOT SOLD SEPARAT

CYLINDER hood lift

1шт.

2

NSS

NOT SOLD SEPARAT

SHAFT cylinder

1шт.

3

A147819

PISTON ASSY.

PISTON lift cylinder

1шт.

4

495-31038

WASHER,9.53mm ID x 18.64mm OD x 1.65mm Thk

flat, 3/8 x 47/64 x 1/16 inch

2шт.

5

38-31212

PIN,3/16" x 3/4", Coiled

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING hood lift

1шт.

7

A147820

RETAINER

lift spring

1шт.

8

A166395

SEAL

bumper

1шт.

9

432-1216

COTTER PIN,3/16" x 1"

1шт.
