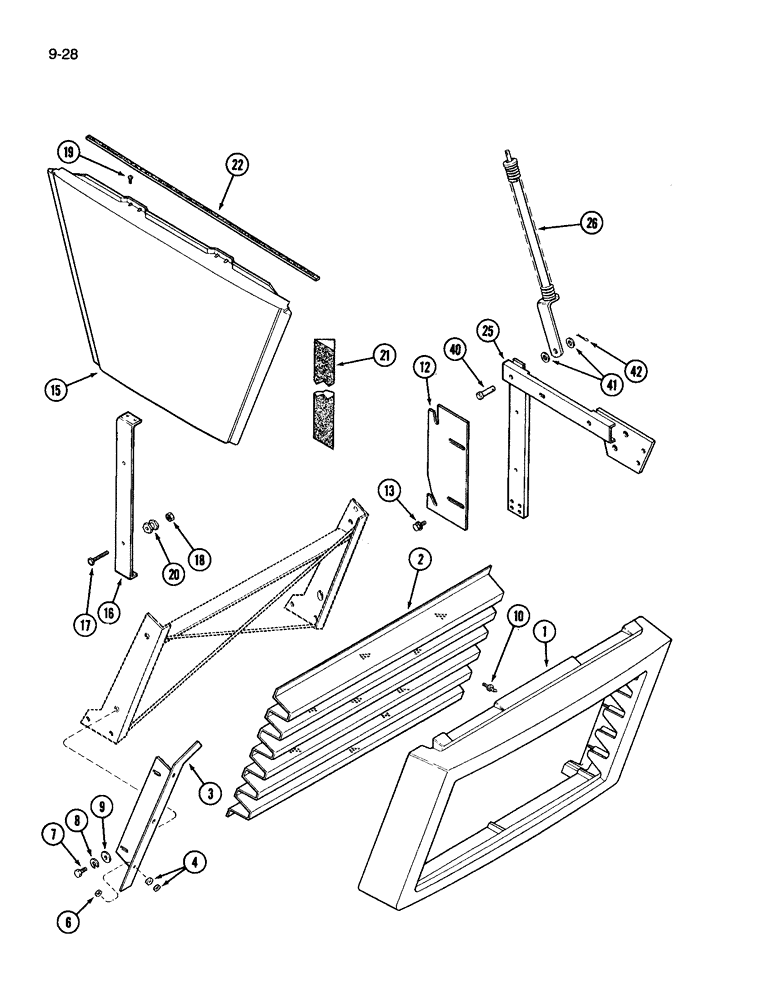

Запчасти Case IH 3594 (9-028) - LOWER GRILLE AND SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A181466

GRILLE

lower, Includes Ref. 10

1шт.

2

A162557

SCREEN

grille, lower

1шт.

3

A147028

BRACKET

ANGLE grille support, right, shown

1шт.

3

A147029

BRACKET

ANGLE lower grille, left

1шт.

4

A147030

SPACER

grille screen

12шт.

6

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

6шт.

7

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

8

492-11038

LOCK WASHER,3/8"

4шт.

9

495-81147

WASHER,0.41" ID x 2" OD x 0.11" Thk

- flat, 13/32 x 2 x 1/8 inch

4шт.

10

1974428C1

STUD

mounting, 1/4 inch NC, Replaces A160247

6шт.

12

A147283

BRACKET

support, lower side panel

2шт.

13

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

15

A181465

PANEL

side, lower

1шт.

16

A149069

STRAP

side panel, lower

2шт.

17

A160078

BOLT

adjuster, panel support

4шт.

18

425-146

JAM NUT,3/8" - 16, Gr 5

hex, jam, 3/8 inch NC

4шт.

19

261-5478

SELF-TAP SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

SCREW self-tapping, pan head phillips, 1/4 NC x 1/2 inch

8шт.

20

A147282

SPOOL

lock, side panel, lower

4шт.

21

A149132

SEAL

side panel, lower

2шт.

22

A162398

SEAL

adhesive sided, 50 foot bulk length

2шт.

25

REF

INSTRUCTION

CHANNEL hood, See Figure 9-024

2шт.

26

REF

INSTRUCTION

HOOD LIFT CYLINDER ASSEMBLY, See Figure 9-030

2шт.

40

427-8168

CLEVIS PIN,12.7mm OD x 42.88mm L

PIN clevis, 1/2 x 1-11/16 inch, hardened

2шт.

41

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 3/32 inch

4шт.

42

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.
