Запчасти Case IH 3594 (9-022) - QUICK HITCH COUPLER, CATEGORY II AND III (09) - CHASSIS/ATTACHMENTS

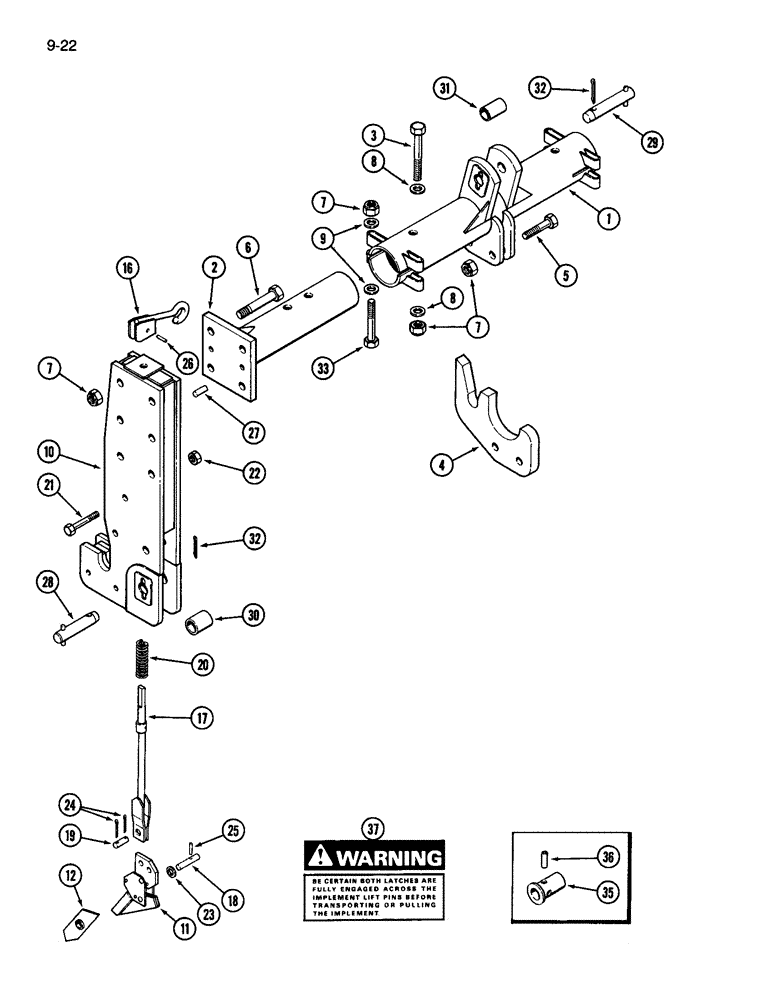

Схема запчастей Case IH 3594 - (9-022) - QUICK HITCH COUPLER, CATEGORY II AND III (09) - CHASSIS/ATTACHMENTS
23
36
12
21
8
7
5
17
4
29
9
8
18
37
24
2
35
6
25
27
7
20
33
19
32
3
7
26
30
28
16
31
10
22
11
1
32

Артикул

Название

Примечание

Количество

A137262

HITCH COUPLER ASSEMBLY, machinery item, Includes Ref. 1 - 33

1шт.

1

A45449

CROSS

PIPE cross, outer

1шт.

2

A45450

CROSS

PIPE cross, inner

2шт.

3

A45451

BOLT,Hex, 3/4" - 10 x 5 5/8"

BOLT hex, 3/4 NC x 5-1/4 inch

2шт.

4

A45452

LUG

arm hitch, upper

1шт.

5

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

2шт.

6

A45464

SCREW

BOLT hex, 3/4 NC x 4-1/4 inch

8шт.

7

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

16шт.

8

195-545

WASHER,3/4", SAE

flat, 13/16 x 1-15/32 x 1/8 inch

4шт.

9

A45468

WASHER

3/4 inch flat, special

12шт.

10

A45453

BRACKET

HITCH arm bracket, lower, right, shown

1шт.

10

A45455

BRACKET

HITCH arm bracket, lower, left

1шт.

11

A45454

LEVER

lock, right

1шт.

11

A45457

LEVER

lock, left

1шт.

12

A44470

LEVER

trip ratchet, lower, right

1шт.

12

A44471

LEVER

trip ratchet, lower, left

1шт.

16

A45456

HANDLE

hitch release

2шт.

17

A45458

ROD

handle to tripping device

2шт.

18

A45459

PIN

2-1/2 inch long

2шт.

19

A45460

PIN

1-3/8 inch long

2шт.

20

A45461

SPRING

release rod

2шт.

21

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

2шт.

22

230-4218

LOCK NUT,1/2"-13, GA

NUT hex, self-locking, 1/2 inch NC

2шт.

23

95-11066

WASHER,5/8"

flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

24

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

25

135-56

GROOVED PIN,3/16" x 1 1/2", Type A

Pin, Grooved, 3/16" x 1 1/2", Type A

2шт.

26

135-75

GROOVED PIN,1/4" x 1", Type A

Pin, Grooved, 1/4" x 1", Type A

2шт.

27

135-1251

DOWEL

PIN dowel, 1/2 x 1-1/4 inch

4шт.

28

A45462

PIN

4-3/4 inch long

2шт.

29

A45463

PIN

5-1/2 inch long

1шт.

30

A43542

SLEEVE

coupler arm, Category III

1шт.

31

A44474

SLEEVE

draft arm pin, upper

1шт.

32

T50113

PIN

clinch, 3/8 x 1-1/2 inch

3шт.

33

A45469

STUD

BOLT hex stud, 3/4 x 4-3/4 inch

4шт.

35

T32995

ADAPTER

hitch coupler, Category II

2шт.

36

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, 7/16" x 1 1/2", Slotted

2шт.

37

321-3339

DECAL

warning, implement lift pins

2шт.

Выбрано товаров: 37
