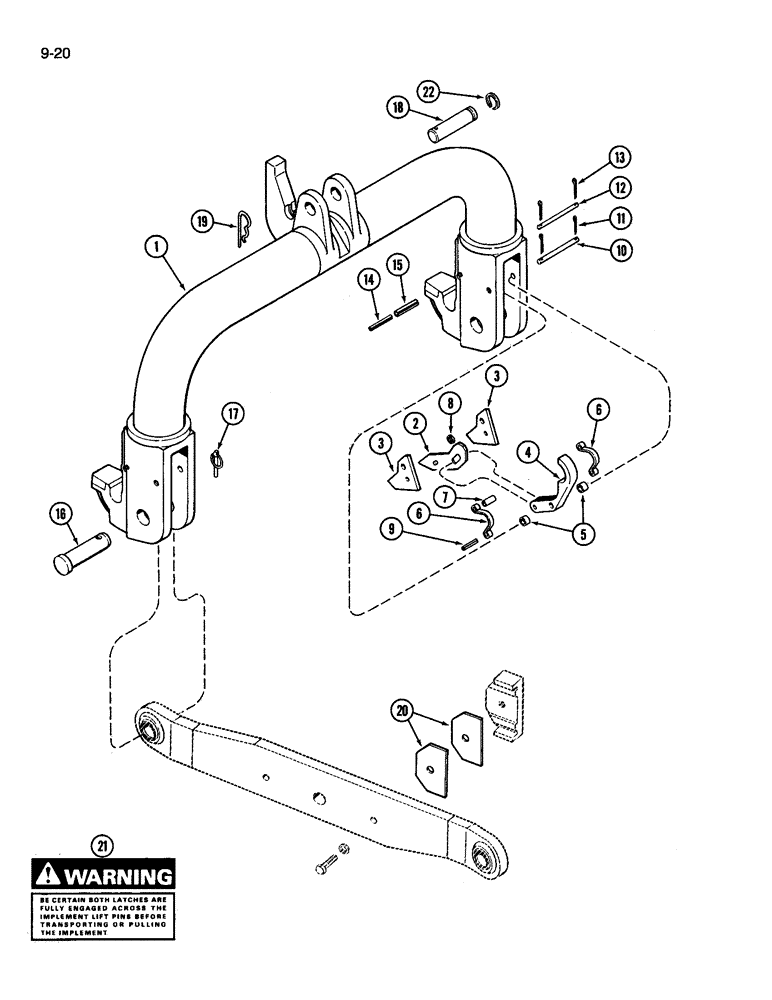

Запчасти Case IH 3594 (9-020) - QUICK HITCH COUPLER, CATEGORY III (09) - CHASSIS/ATTACHMENTS

A67166

ATTACHMENT

coupler, hitch, machinery item, Includes Ref. 1 - 22

1шт.

1

1348143C2

ATTACHMENT

HITCH COUPLER ASSEMBLY, Includes Ref. 2 - 17

1шт.

2

L10088

PLATE

RELEASE PLATE ASSEMBLY, actuator

2шт.

3

L10177

PLATE

implement lock

4шт.

4

L10175

HANDLE

release

2шт.

5

T30946

BUSHING

SPACER handle, 1/2 inch

4шт.

6

L10263

SPRING

activator

4шт.

7

L10264

BUSHING

SPACER activator, 1 inch

2шт.

8

A29701

BUSHING

SPACER activator, release 1/4 inch

2шт.

9

138-176

LOCK PIN,3/8" x 1 3/4", Slotted

Pin, 3/8" x 1 3/4", Slotted

2шт.

10

L10262

PIN

pivot

2шт.

11

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

4шт.

12

L10261

PIN

anchor, spring

2шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

138-163

LOCK PIN,5/16" x 2 1/2", Slotted

PIN, 5/16" x 2 1/2", Slotted

2шт.

15

138-316

LOCK PIN,1/2" x 2 1/2", Slotted

PIN, 1/2" x 2 1/2", Slotted

2шт.

16

A75028

PIN,36.45mm OD x 138mm L

hitch, lower

2шт.

17

A64204

PIN

klik

2шт.

18

A76285

PIN

swivel

1шт.

19

A56393

PIN

cotter, hair type

1шт.

20

A64331

BUSHING

SPACER block, sway

4шт.

21

321-3339

DECAL

warning, implement lift pins

2шт.

22

17406

RING

retaining, pin

1шт.
