Запчасти Case IH 3594 (9-016) - SIDE RAILS (09) - CHASSIS/ATTACHMENTS

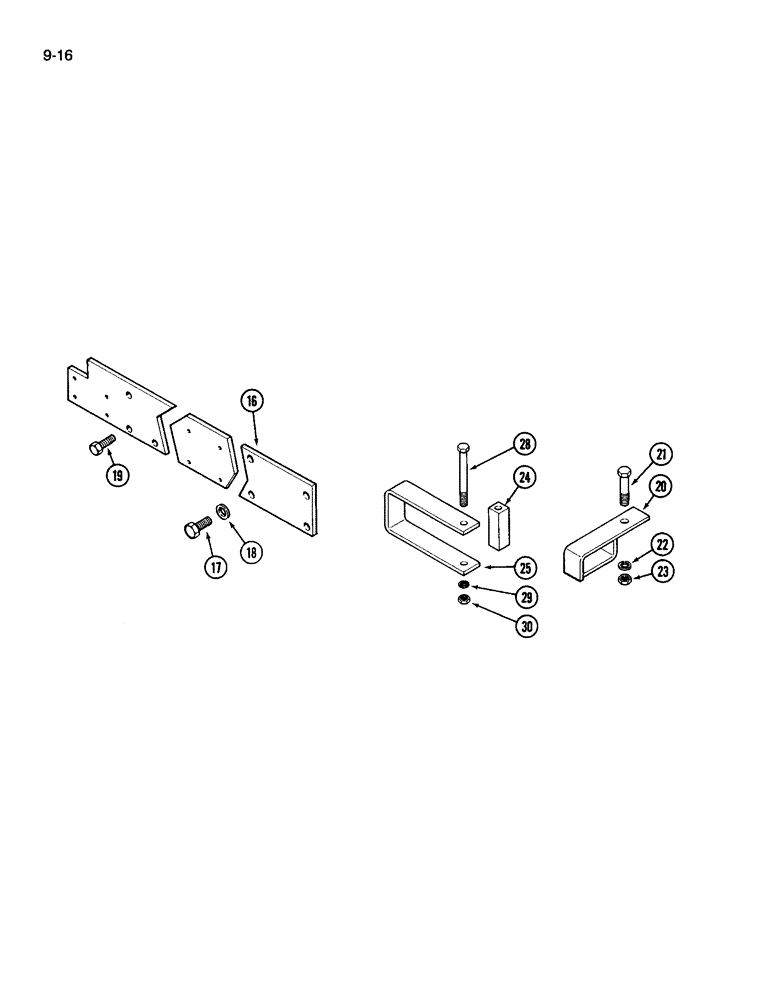

Схема запчастей Case IH 3594 - (9-016) - SIDE RAILS (09) - CHASSIS/ATTACHMENTS
16
28
19
17
25
18
22
29
23
21
20
24
30

Артикул

Название

Примечание

Количество

16

A161738

RAIL

side, right

1шт.

16

A185673

RAIL

side, left, right shown, Replaces A167560

1шт.

17

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

Side rail Hex, 3/4"-10 x 2", G8

8шт.

18

A26462

WASHER

special, side rail

8шт.

19

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- hex, 5/8 NC x 2 inch, grade 5, Side rail

6шт.

A169123

KIT Support, safety chain, Order components, Includes Ref. 20 - 30

1шт.

20

A166390

RETAINER

spring

1шт.

21

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

hex, 3/4 NC x 3 inch

1шт.

22

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

23

129-593

NUT,Hvy Hex, 3/4" - 10, Gr 5

1шт.

24

A166965

BLOCK

clevis

1шт.

25

A165682

CLEVIS

safety chain

1шт.

28

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

hex, 5/8 NC x 6 inch

1шт.

29

492-21062

LOCK WASHER,5/8"

1шт.

30

25-1610

NUT,5/8"-11, G5, Hvy

hex, 5/8 inch NC, heavy duty

1шт.

Выбрано товаров: 15
