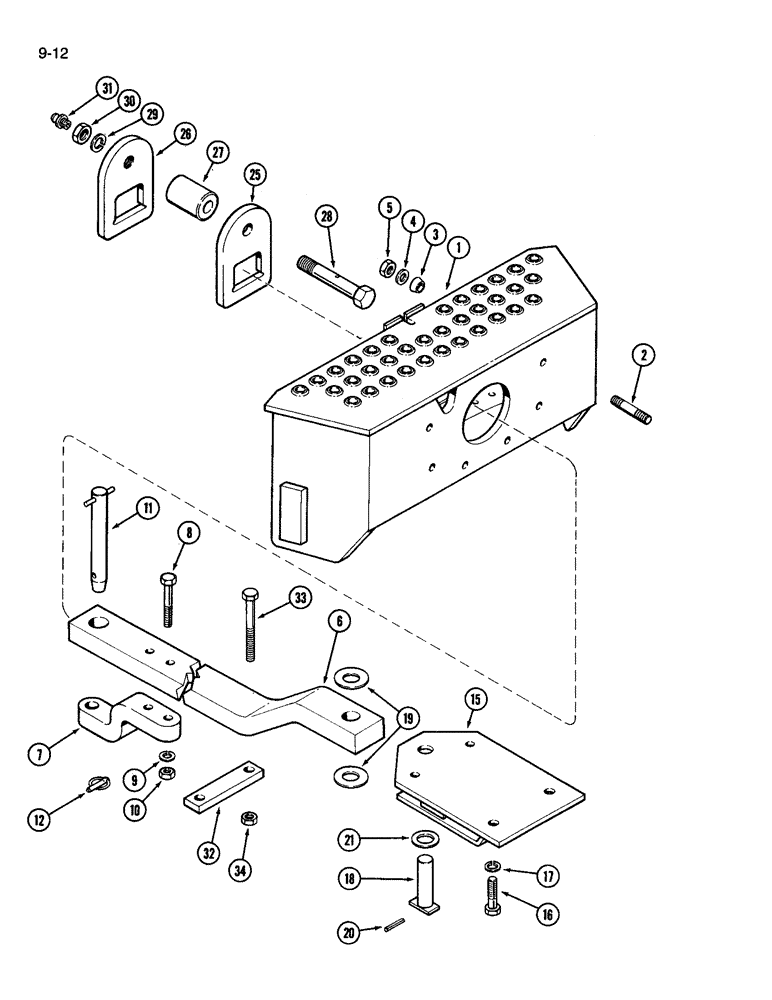

Запчасти Case IH 3594 (9-012) - ROLLER DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A177410

SUPPORT

DRAWBAR SUPPORT ASSEMBLY

1шт.

2

A64109

STUD

5/8 NC x 3-1/2 inch

6шт.

3

A64167

PIN

DOWEL support mounting

6шт.

4

A64166

WASHER

mounting

6шт.

5

29-1010

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

6шт.

6

A160849

DRAWBAR, SWINGING

DRAWBAR towing

1шт.

A61836

KIT

Yoke, drawbar, machinery item, Includes Ref. 7 - 12

1шт.

7

A61557

DRAWBAR CLAMP

STRAP drawbar yoke

1шт.

8

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

2шт.

9

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

10

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

11

A65760

PIN

DRAWBAR PIN ASSEMBLY, Includes Ref. 12

1шт.

12

A61560

LOCK PIN

PIN klik

1шт.

15

A164497

BRACKET

drawbar pivot

1шт.

16

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4 NC x 2-1/2 inch, grade 8

4шт.

17

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A65748

PIN

drawbar pivot

1шт.

19

A63595

WASHER

anti rattle

2шт.

20

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

21

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

flat, 1-9/32 x 2 x 1/4 inch

1шт.

25

A65754

PLATE

BRACKET hanger, drawbar

1шт.

26

A135433

PLATE

BRACKET threaded, drawbar hanger

1шт.

27

A135435

ROLLER

drawbar

1шт.

28

A135434

BOLT

roller, drilled

1шт.

29

492-11100

LOCK WASHER,1"

1"

11шт.

30

425-1016

NUT,1"-8, G5

hex, 1 inch NC, grade 5

1шт.

31

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 27/32 inch

1шт.

32

A63600

STRAP

drawbar clamp

1шт.

33

413-1092

SCREW,Hex, 5/8" - 11 x 5 3/4", Gr 5

BOLT hex, 5/8 NC x 5-3/4 inch, grade 5

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.
