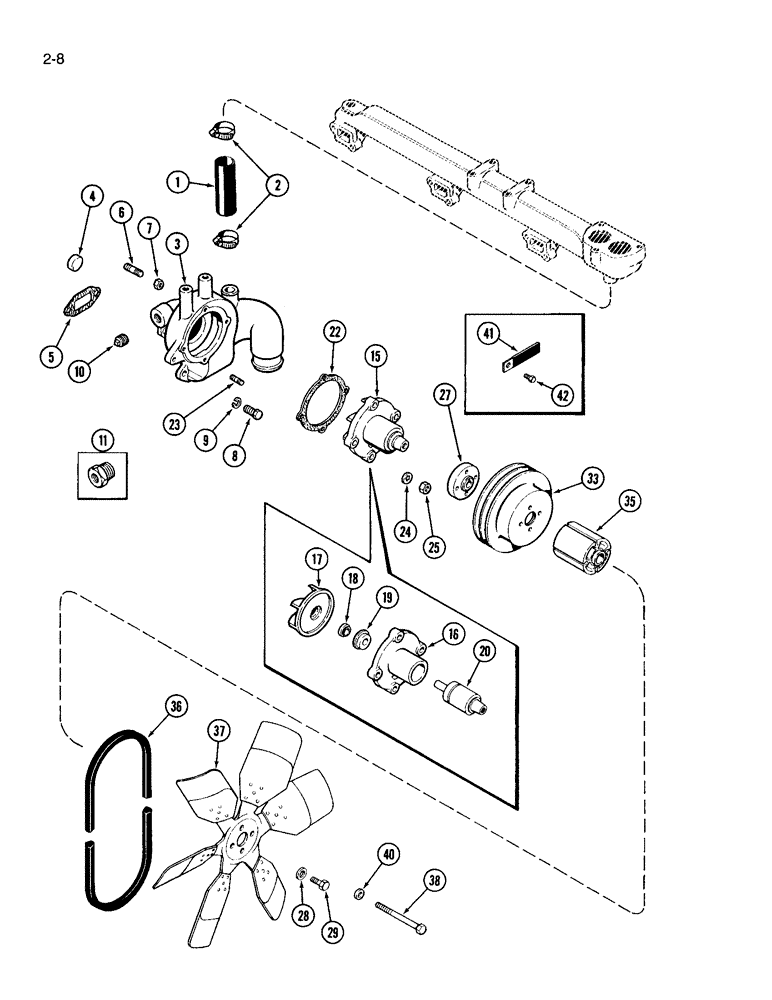

Запчасти Case IH 3594 (2-008) - WATER PUMP, 504BDT DIESEL ENGINE (02) - ENGINE

1

A58737

HOSE,30.99mm ID x 134.62mm L, SAE 20R4

HOSE water pump, 1-1/4 ID x 5-5/16 inch

1шт.

2

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP, HOSE, , Adj. #20, 0.81/1.75 Type F Worm

2шт.

3

A148968

HOUSING

WATER PUMP BODY ASSEMBLY

1шт.

4

A58568

PLUG,Cup, 1 3/8", Stainless

PLUG cup type, 1-3/8" diameter

1шт.

5

1342759C1

GASKET

GASKET body to block, Replaces A58649

1шт.

6

G102128

BOLT

STUD, 3/8" NC x 1-1/2"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

2шт.

8

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

9

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

10

221-844

PLUG,Hex Soc, 1/2"-14

PLUG square, 1/2 inch PT, tractor with cab heater

1шт.

11

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

REDUCER pipe, 1/2 male x 1/4 inch female, tractor without cab heater

1шт.

15

1342818C1

PUMP, WATER

KIT Water Pump, remanufactured, North America only, Includes Ref. 22

1шт.

15

1342818C1R

REMAN-WATER PUMP

Reman For New P/N 1342818C1

1шт.

15

A48335

CORE-WATER PUMP

Use this part number to return pump core for credit

1шт.

15

A157145

PUMP, WATER

WATER PUMP ASSEMBLY, new, Includes Ref. 16 - 20

1шт.

15

1342818C1R

REMAN-WATER PUMP

Remanufactured Water Pump

1шт.

15

A48335

CORE-WATER PUMP

Return Part Number, Water Pump

1шт.

16

NSS

NOT SOLD SEPARAT

HOUSING pump

1шт.

17

A152126

IMPELLER

IMPELLER water

1шт.

18

A166280

SEAT

SEAT impeller, Replaces A34000, Also Order A166281

1шт.

19

A166281

SEAL

SEAL pump shaft, Replaces A142499, Also Order A166280

1шт.

20

A156995

BEARING

PUMP SHAFT ASSEMBLY

1шт.

22

1342758C1

GASKET

GASKET pump to body, Replaces A58646

1шт.

23

A166044

STUD

STUD pump mounting

4шт.

24

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER internal tooth lock, 3/8 inch

4шт.

25

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

4шт.

27

A146221

HUB

HUB fan and, Serial Range: pulley-pump

1шт.

28

A155047

RING,13.08mm ID x 26.92mm OD x 8.69mm Thk

WASHER fan bolt

1шт.

29

414-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

BOLT hex, 1/2 NF x 1-1/4 inch

1шт.

33

A152448

PULLEY

PULLEY fan drive

1шт.

35

A161679

BUSHING

SPACER fan, 3-7/8 inch

1шт.

36

A145325

SET OF BELTS,60.00" L

Fan, Matched (With air conditioning)

1шт.

36

A57130

BELT,60.00" L

Fan, Single without Air Conditioning

1шт.

37

A164663

FAN

FAN cooling, 22 inch

1шт.

38

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

BOLT, Hex, 3/8"-16 x 5", G5

4шт.

40

A50820

WASHER

WASHER hardened, 3/8 x 3/4 inch

4шт.

41

A149624

CLIP

CLIP retaining

1шт.

42

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

BOLT, Hex, 3/8"-16 x 1/2", G5, Full Thd

1шт.
