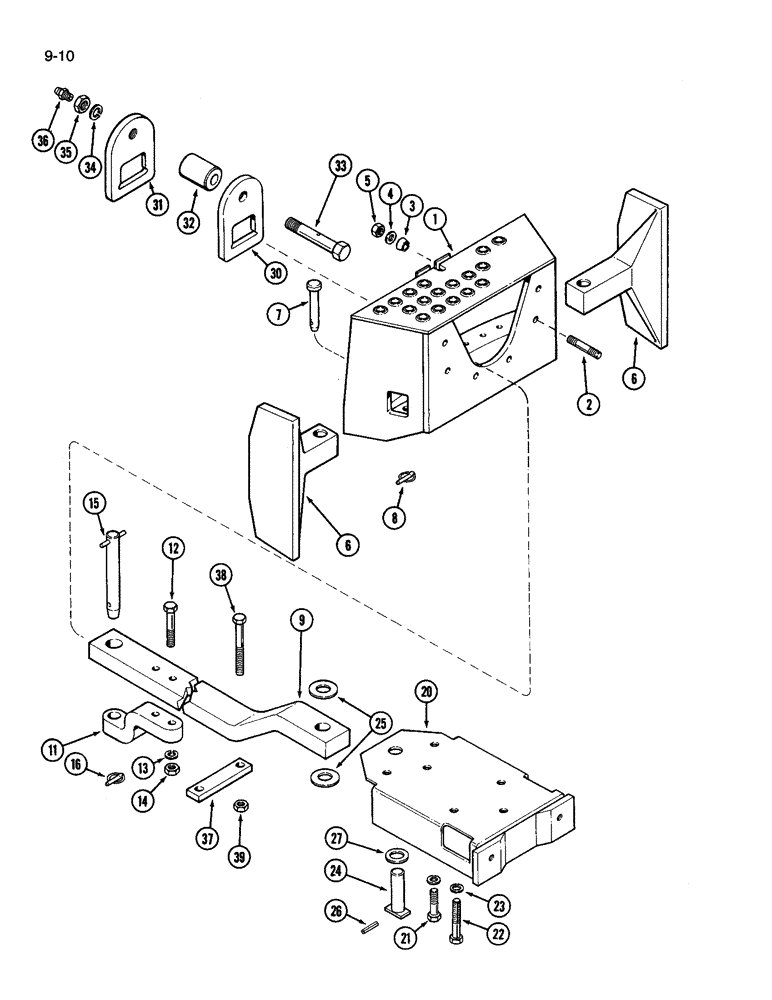

Запчасти Case IH 3594 (9-010) - ROLLER DRAWBAR, WITH HITCH (09) - CHASSIS/ATTACHMENTS

1

A177408

SUPPORT

drawbar

1шт.

2

A64109

STUD

5/8 NC x 3-1/2 inch

6шт.

3

A64167

PIN

DOWEL support mounting

6шт.

4

A64166

WASHER

mounting

6шт.

5

29-1010

NUT,5/8"-11, G8

hex, 5/8 inch NC, grade 8

6шт.

6

A169892

STOP

sway, draft arm

2шт.

7

A161104

PIN

stop retaining, 1-1/8 inch diameter

2шт.

8

D33805

PIN

klik

2шт.

9

A160849

DRAWBAR, SWINGING

DRAWBAR towing

1шт.

A61836

KIT

Yoke, drawbar, machinery item, Includes Ref. 11 - 16

1шт.

11

A61557

DRAWBAR CLAMP

STRAP drawbar yoke

1шт.

12

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

hex, 3/4 NC x 4-1/2 inch

2шт.

13

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

14

425-1012

NUT,3/4"-10, G5

hex, 3/4 inch NC

2шт.

15

A65760

PIN

DRAWBAR PIN ASSEMBLY, Includes Ref. 16

1шт.

16

A61560

LOCK PIN

PIN klik

1шт.

20

A180074

BRACKET

drawbar pivot

1шт.

21

426-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

hex, 3/4 NC x 2-1/2 inch, grade 8

2шт.

22

326-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 8

2шт.

23

92-11075

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

24

A65748

PIN

drawbar pivot

1шт.

25

A63595

WASHER

anti rattle

2шт.

26

138-2029

PIN,7.92mm OD x 63.5mm L, Coiled

1шт.

27

195-2120

WASHER,1.28" ID x 2" OD x 0.24" Thk

flat, 1-9/32 x 2 x 1/4 inch

1шт.

30

A65754

PLATE

BRACKET hanger, drawbar

1шт.

31

A135433

PLATE

BRACKET threaded, drawbar hanger

1шт.

32

A135435

ROLLER

drawbar

1шт.

33

A135434

BOLT

roller, drilled

1шт.

34

492-11100

LOCK WASHER,1"

1"

1шт.

35

425-1016

NUT,1"-8, G5

hex, 1 inch NC, grade 5

1шт.

36

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 27/32 inch

1шт.

37

A63600

STRAP

drawbar clamp

1шт.

38

413-1092

SCREW,Hex, 5/8" - 11 x 5 3/4", Gr 5

BOLT hex, 5/8 NC x 5-3/4 inch, grade 5

2шт.

39

25-1010

NUT,5/8"-11, G5

2шт.
