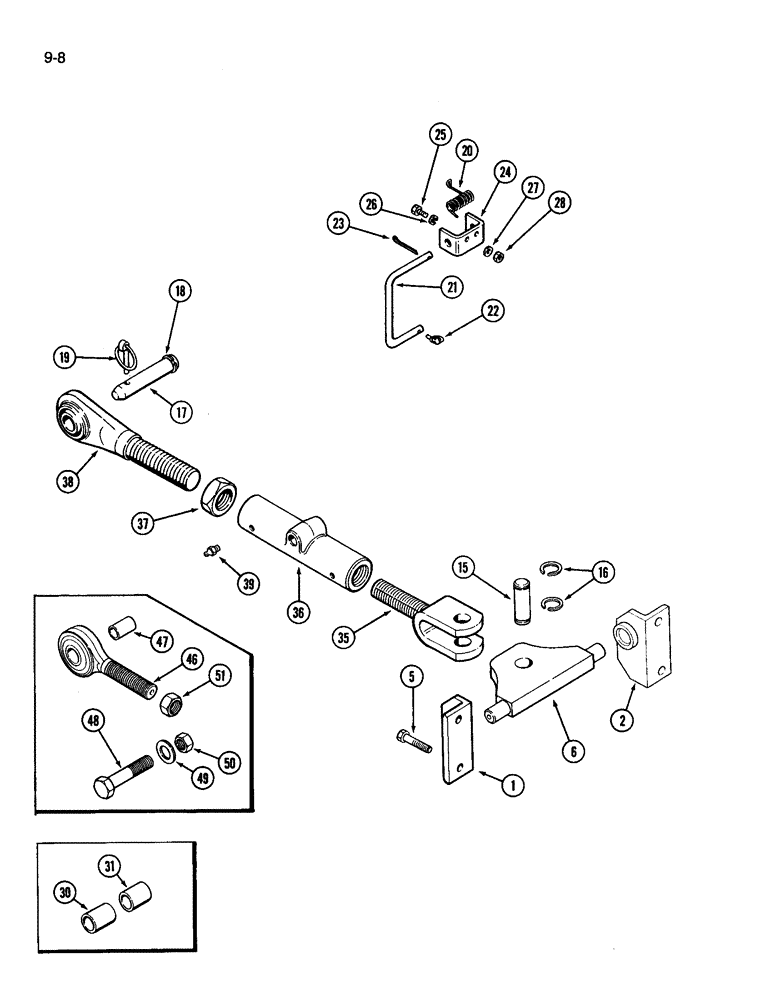

Запчасти Case IH 3594 (9-008) - THREE POINT HITCH, UPPER LIFT LINK (09) - CHASSIS/ATTACHMENTS

1

A160141

BRACKET

ANGLE link bracket, upper right

1шт.

2

A160140

BRACKET

ANGLE link bracket, upper left

1шт.

5

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8

4шт.

6

A66217

PLATE

link bracket, upper

1шт.

15

A160910

PIN

, Serial Range: link-plate

1шт.

16

A185689

RING, SNAP

RING retaining, Replaces A28253

2шт.

17

A143993

PIN,31.6mm OD x 161.54mm L

ASSEMBLY, upper link to implement, Includes Ref. 18

1шт.

18

17406

RING

retaining, pin

1шт.

19

A64204

PIN

klik

1шт.

20

A177792

SPRING

link hook, upper

1шт.

21

A163822

HOOK

storage, link, upper

1шт.

22

A33497

LINCH PIN,4.76mm OD Pin

PIN klik

1шт.

23

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

24

A163821

BRACKET

link storage, upper

1шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

hex, 3/8 NC x 1 inch

2шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

28

425-106

NUT,3/8"-16, Cl 5

2шт.

30

L10462

BUSHING

ADAPTER hitch pin, upper, Category II, 1 x 1-1/4 x 2 inch

1шт.

31

L10463

BUSHING

ADAPTER hitch pin, lower, Category II, 1-1/8 x 1-7/16 x 1-25/32 inch

2шт.

A165967

LINK ASSEMBLY, upper, heavy duty, Order components, Includes Ref. 35 - 39

1шт.

35

A165962

CLEVIS

link, upper

1шт.

36

A165965

TURNBUCKLE

link, upper

1шт.

37

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

hex, jam, 1-1/2 inch NC

1шт.

38

A165966

ROD

link end, upper

1шт.

39

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

45

1965282C1

DRAG LINK

KIT Link, short top, Includes Ref. 46 - 51

1шт.

46

1965221C1

TIE-ROD

ROD link end, short, upper

1шт.

47

398406R1

BUSHING,26.29mm ID x 31.37mm OD x 50.8mm L

ADAPTER hitch pin, upper, Category II

1шт.

48

25982R1

BOLT,Hex, 1 1/4" - 7 x 5 1/2", Gr 8

hex, 1-1/4 NC x 5-1/2 inch

2шт.

49

23446R1

WASHER

flat

2шт.

50

232-41320

LOCK NUT,1 1/4"-7, GC

NUT, LOCK, 1 1/4"-7, GC

2шт.

51

425-1424

JAM NUT,Jam, 1 1/2"-6, G5

hex, jam, 1-1/2 inch NC

1шт.
