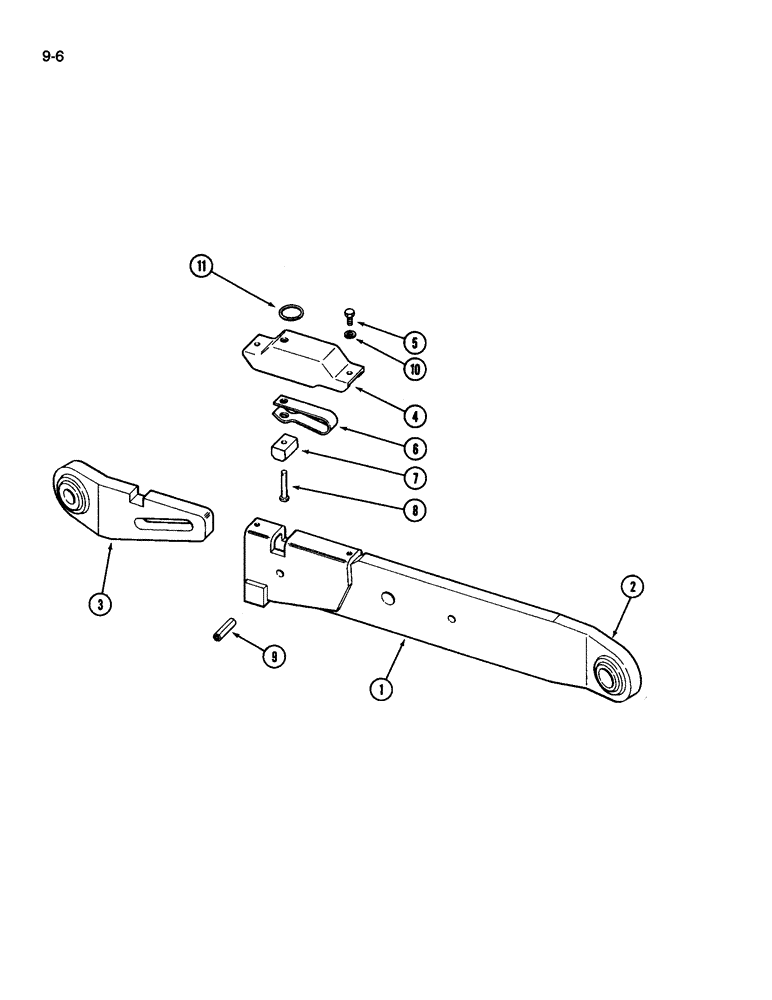

Запчасти Case IH 3594 (9-006) - HITCH DRAFT ARMS, TELESCOPING (09) - CHASSIS/ATTACHMENTS

1

A185270

ARM

HITCH DRAFT ARM ASSEMBLY, right, Includes Ref. 2 - 10

1шт.

1

A185271

ARM

HITCH DRAFT ARM ASSEMBLY, left, Includes Ref. 2 - 11

1шт.

2

NSS

NOT SOLD SEPARAT

DRAFT ARM END ASSEMBLY

1шт.

3

A185136

END ASSY.

DRAFT ARM END ASSEMBLY, right

1шт.

3

A185137

END ASSY.

DRAFT ARM END ASSEMBLY, left

1шт.

4

A52199

COVER

draft arm latch

1шт.

5

281-1478

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW self-tapping, hex washer head, 1/4 NC x 1/2 inch

2шт.

6

A48917

SPRING

latch

1шт.

7

A185135

LATCH ASSY.

LATCH block

1шт.

8

A185304

PIN,9.53mm OD x 54.18mm L

clevis

1шт.

9

138-2000

PIN,12.7mm OD x 50.8mm L, Coiled

1шт.

10

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

A185305

RING

split

1шт.
