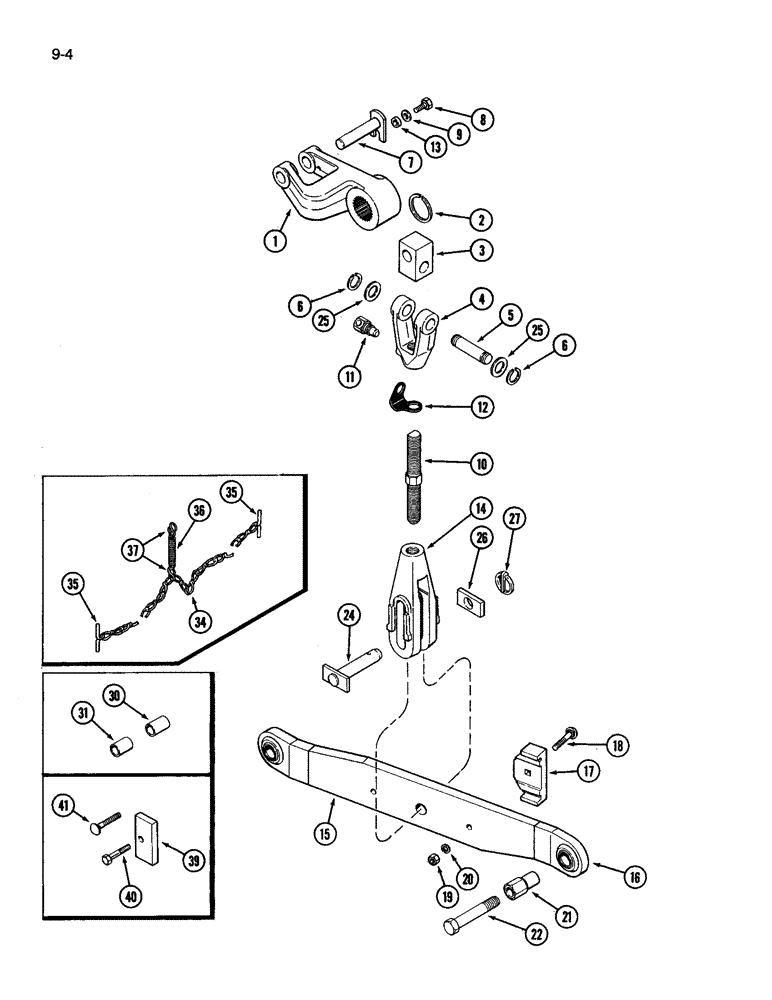

Запчасти Case IH 3594 (9-004) - THREE POINT HITCH, LOWER LIFT LINKS AND DRAFT ARMS (09) - CHASSIS/ATTACHMENTS

1

A181999

ARM, LIFT

ARM lift

2шт.

2

A63499

SNAP RING,#268, 2.535, Ext

RING retaining, arm to rockshaft

2шт.

3

A63501

BLOCK

swivel, lift link

2шт.

4

A165963

YOKE

lift link, upper

2шт.

5

A66100

PIN

, Serial Range: yoke-block

2шт.

6

A185689

RING, SNAP

RING retaining, yoke pin, Replaces A28253

4шт.

7

A181928

PIN

block to lift arm

2шт.

8

113-481

BOLT,Locking, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

hex, self-locking, 1/2 NC x 1-1/4 inch

2шт.

9

A75865

WASHER

hardened

4шт.

10

A165961

ADJUSTMENT SCREW,1 1/4" - 7 x 10.50"

SCREW lift link adjusting

2шт.

11

A62285

SCREW,Hex, 1" - 12 x 1-1/2"

yoke locking

2шт.

12

A62986

HOLDER

KEEPER yoke locking screw

2шт.

13

A148908

SPACER

pin

2шт.

14

A165964

YOKE

lift link, lower

2шт.

15

A147766

ARM

DRAFT ARM ASSEMBLY, Includes Ref. 16

2шт.

16

A63510

WELDABLE LUG

DRAFT ARM END ASSEMBLY

2шт.

17

A162757

BLOCK

sway

2шт.

18

111-540

CARRIAGE BOLT,Short NK, 1/2"-13 x 3", G5

BOLT round head square neck, 1/2 NC x 3 inch

2шт.

19

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

20

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

21

A162784

INSERT

draft arm to sensing bracket

2шт.

22

106-91696

LOCK BOLT,Locking, 1"-8 x 6", G5

BOLT hex, 1 NC x 6 inch

2шт.

24

A181927

PIN

ASSEMBLY, lower lift link to draft arm

2шт.

25

A63507

WASHER

retaining

2шт.

26

A63515

PLATE

pin stop

4шт.

27

A64204

PIN

klik

2шт.

30

L10462

BUSHING

ADAPTER hitch pin, upper, Category II, 1 x 1-1/4 x 2 inch

1шт.

31

L10463

BUSHING

ADAPTER hitch pin, lower, Category II, 1-1/8 x 1-7/16 x 1-25/32 inch

2шт.

A65684

CHAIN (AG)

ANTI SWAY CHAIN ASSEMBLY, Order components, Includes Ref. 34 - 37

1шт.

34

A65685

CHAIN (AG)

CHAIN anti sway

1шт.

35

A65686

CHAIN

KEEPER anti sway chain

2шт.

36

A65688

SPRING

anti sway chain

1шт.

37

A65687

HOOK

anti sway chain

2шт.

NSS

NOT SOLD SEPARAT

ATTACHMENT sway block spacer, Category II, Includes Ref. 39 and 40

1шт.

39

A65438

BUSHING

SPACER no sway, Category II

2шт.

40

413-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

hex, 1/2 NC x 3 inch

2шт.

41

111-505

CARRIAGE BOLT,Short NK, 1/2"-13 x 3 1/2", G5

BOLT, CARRIAGE, Short NK, 1/2"-13 x 3 1/2", G5

2шт.
