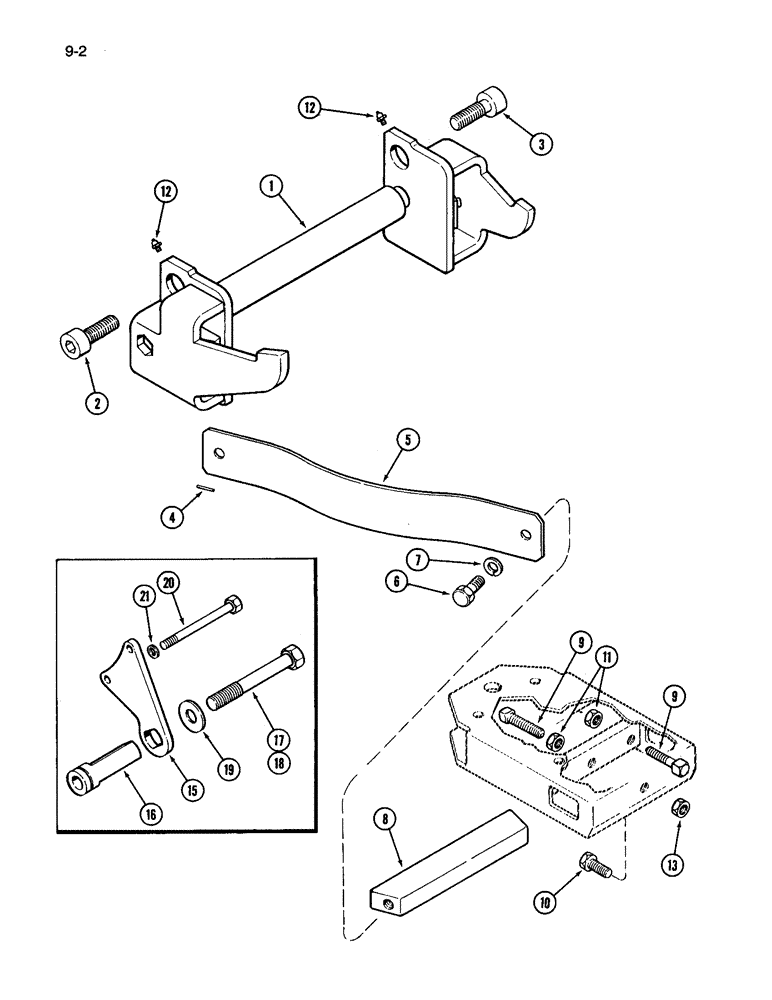

Запчасти Case IH 3594 (9-002) - CROSSBAR AND WISHBONE SPRINGS (09) - CHASSIS/ATTACHMENTS

1

A164375

CROSSBAR

hitch

1шт.

2

A143604

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

hex socket head, 1-1/8 NC x 3-1/4 inch, left hand thread, stamped on top

1шт.

3

A143603

BOLT,1-1/8" - 7 x 3-1/4", Gr 8

hex socket head, 1-1/8 NC x 3-1/4 inch, right hand thread

1шт.

4

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

5

A63488

SPRING

wishbone

2шт.

6

A63490

BOLT

mounting, wishbone spring

2шт.

7

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

8

A63489

BAR

wishbone spring equalizer

1шт.

9

181-529

SET SCREW,Sq Hd, 3/4"-10 x 3"

SCREW square head oval point, 3/4 NC x 3 inch

3шт.

10

413-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

11

425-1412

JAM NUT,Jam, 3/4"-10, G5

hex, jam, 3/4 inch NC

3шт.

12

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING grease, straight, 1/8 PT x 21/32 inch

2шт.

13

425-1410

JAM NUT,Jam, 5/8"-11, G5

hex, jam, 5/8 inch NC

2шт.

A67539

ATTACHMENT pivot, crossbar, machinery item, Includes Ref. 15 - 21

1шт.

15

A163810

BRACKET

SUPPORT locking, shaft

2шт.

16

A163808

BUSHING

pivot, crossbar

2шт.

17

A165399

BOLT

hex, 1-1/8 UNRC x 8 inch, right hand thread

1шт.

18

A165400

BOLT

hex, 1-1/8 UNRC x 8 inch, left hand thread

1шт.

19

A35047

WASHER

special

2шт.

20

326-10112

BOLT,Hex, 5/8" - 11 x 7", Gr 8

4шт.

21

A64303

WASHER

flat, hardened steel

4шт.
