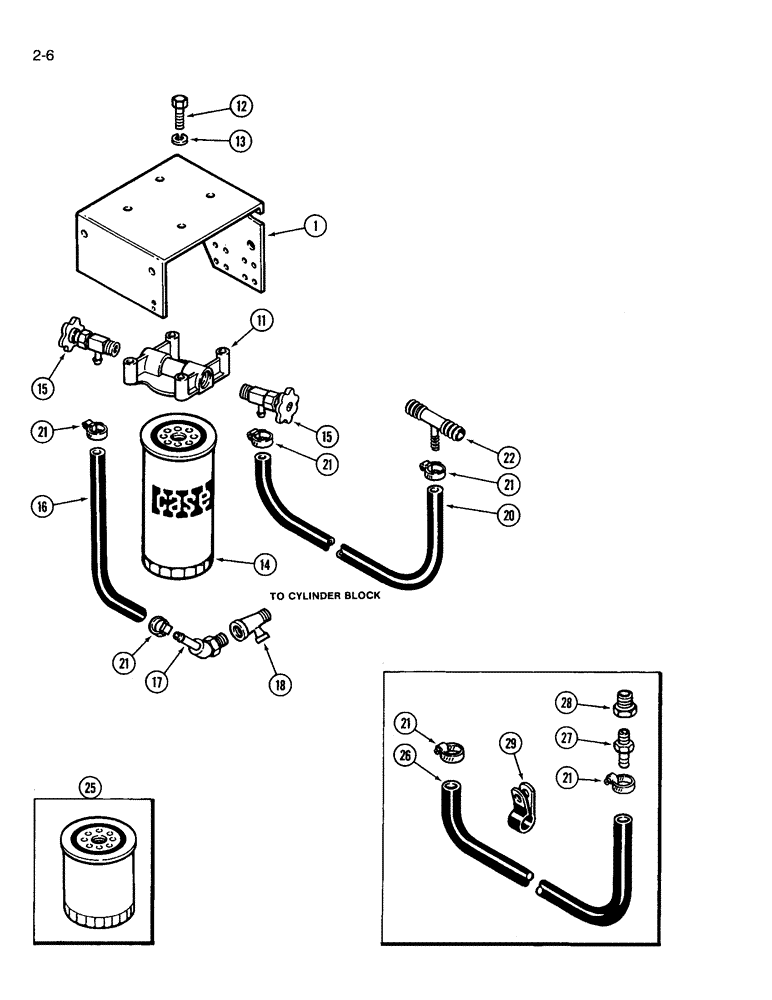

Запчасти Case IH 3594 (2-006) - WATER FILTER (02) - ENGINE

1

REF

INSTRUCTION

SUPPORT throttle cable and filter head, See Figure 3-014

1шт.

A46400

KIT

Water Filter and Conditioner, Includes Ref. 11 - 22

1шт.

11

A152821

HEAD

water filter

1шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

4шт.

13

492-11038

LOCK WASHER,3/8"

4шт.

14

A152819

FILTER

CARTRIDGE water filter, pre charged, See Ref. 25

1шт.

15

A154051

COCK, DRAIN

VALVE shutoff

2шт.

16

A154770

HOSE,0.38" ID x 6.10", SAE 20R3 PER SAE J20

9.60 mm ID x 154.90 mm, SAE 20R3 - Valve to Block

1шт.

17

217-142

ELBOW,45 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

45 degree, 3/8 stem end x 1/4 inch PT

1шт.

18

221-1691

TEE,Street, 1/4" NPT

street, 1/4 inch PT

1шт.

20

A161557

HOSE,9.60 mm ID x 558.80 mm, SAE 20R3

- Valve to heater hose 9.60 mm ID x 558.80 mm, SAE 20R3

1шт.

21

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

CLAMP, HOSE, , Adj. #06, .44/.78 Type F Worm

4шт.

22

A154014

CONNECTOR, ELEC

TEE branch, heater hose

1шт.

25

A151931

FILTER

KIT Fliter and Gasket, coolant, order for service

1шт.

26

A154065

HOSE,0.38" ID x 36.00", SAE 20R3 PER SAE J20

0.38" ID x 36.00", SAE 20R3 - Filter to Water Pump, For Use on Tractors Without Cab Heater

1шт.

27

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

stem - straight 3/8" Hose X 1/4" NPTF Beaded

1шт.

28

221-88

REDUCER,Hex, 1/2" x 1/4" NPT

pipe, 1/2 male x 1/4 inch female

1шт.

29

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

tube, 5/8 inch

1шт.
