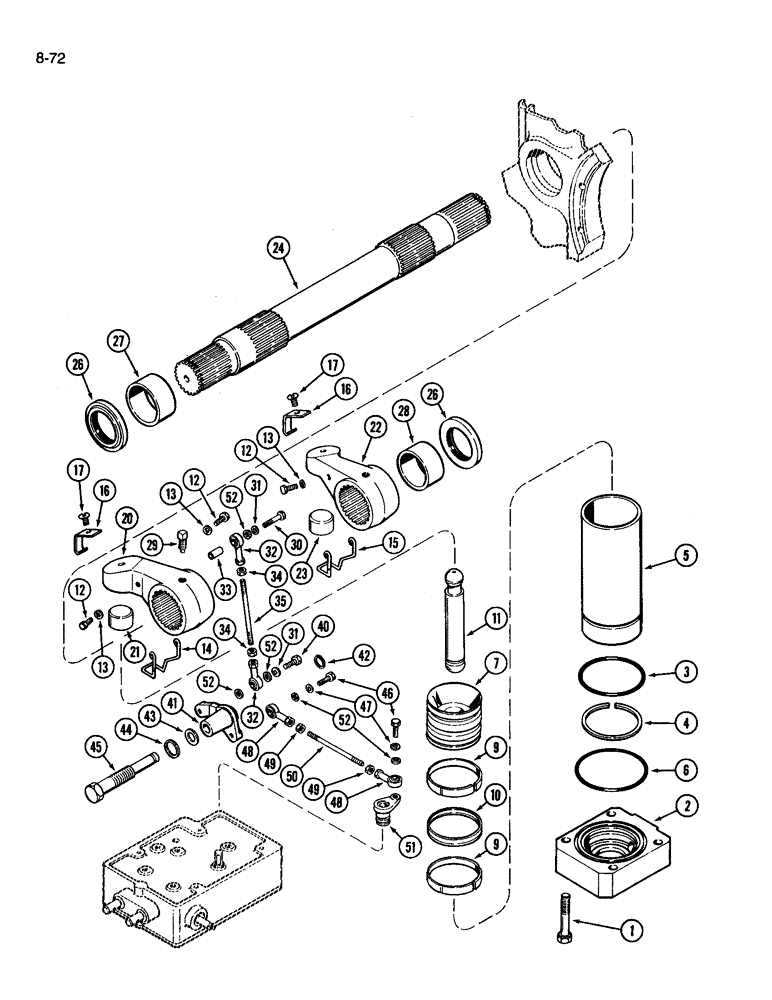

Запчасти Case IH 3594 (8-072) - HITCH SYSTEM, ROCKSHAFT, POWER ARMS AND PISTONS (08) - HYDRAULICS

1

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

hex, 5/8 NC x 4 inch

8шт.

2

A147764

CAP

cylinder liner

2шт.

3

238-5246

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

2шт.

4

A141666

RING

retaining

2шт.

5

A161488

LINING

LINER hydraulic lift cylinder

2шт.

6

238-5252

O-RING,0.139" Thk x 5.234" ID, -252, Cl 5, 75 Duro

2шт.

7

A139459

PISTON

ROCKSHAFT PISTON ASSEMBLY , Includes Ref. 9 and 10

2шт.

9

A63393

RING

wear

2шт.

10

A137343

SEAL

U-cup

1шт.

11

A185254

ROD

connecting, piston to power arm

2шт.

12

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

hex, 1/4 NC x 5/8 inch

4шт.

13

95-11028

WASHER,1/4"

flat, 0.281 x 0.625 x 0.065 inch

4шт.

14

A164200

SPRING

CLIP power arm, right

1шт.

15

A164199

SPRING

CLIP power arm, left

1шт.

16

A164198

CLIP

RETAINER arm clip

2шт.

17

301-1498

DRIVE SCREW,Drive, 5/16" x 1/2"

round head, 5/16 NC x 1/2 inch

2шт.

20

A63380

ARM

POWER ARM ASSEMBLY, right, Order A185228 arm and A185194 clip, Includes Ref. 21

1шт.

21

A63384

INSERT

arm

1шт.

22

A63381

ARM

POWER ARM ASSEMBLY, left, Order A185229 arm and A185195 clip, Includes Ref. 23

1шт.

23

A63384

INSERT

arm

1шт.

24

A63376

ROCKSHAFT

hitch

1шт.

26

A164658

OIL SEAL

oil, rockshaft

2шт.

27

A162255

BUSHING,79.52mm ID x 85.81mm OD x 41.78mm L

rockshaft, right, 3-1/8 inch ID

1шт.

28

A162256

BUSHING,73.17mm ID x 79.6mm OD x 41.53mm L

rockshaft, left, 2-7/8 inch ID

1шт.

29

A63385

SET SCREW,1/2" - 13 x 1 1/8"

set

2шт.

30

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

hex, 3/8 NC x 2-1/2 inch

1шт.

31

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER internal tooth lock, 3/8 inch

2шт.

32

A32398

BALL JOINT

LINK eye, female

2шт.

33

A135379

BUSHING

SPACER, upper, follow up rod to power arm

1шт.

34

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex jam, 3/8 inch NF

2шт.

35

A63452

ROD

follow up, upper

1шт.

40

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

1шт.

41

A147761

ARM

BELLCRANK follow up linkage

1шт.

42

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

43

A26462

WASHER

special

1шт.

44

A27366

GASKET

WASHER follow up bellcrank stud, copper

1шт.

45

A135380

STUD

follow up linkage bellcrank

1шт.

46

113-262

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd

2шт.

47

93-21039

LOCK WASHER,Int Tooth, 3/8"

WASHER internal tooth lock, 3/8 inch

2шт.

48

A32398

BALL JOINT

LINK eye, female

2шт.

49

86585245

SPECIAL NUT,JAM, 5/8" - 18

hex jam, 3/8 inch NF

2шт.

50

A63455

ROD

follow up, lower

1шт.

51

A64430

LEVER

draft control follow up

1шт.

52

A32395

WASHER

rod to bellcrank and lever

5шт.
