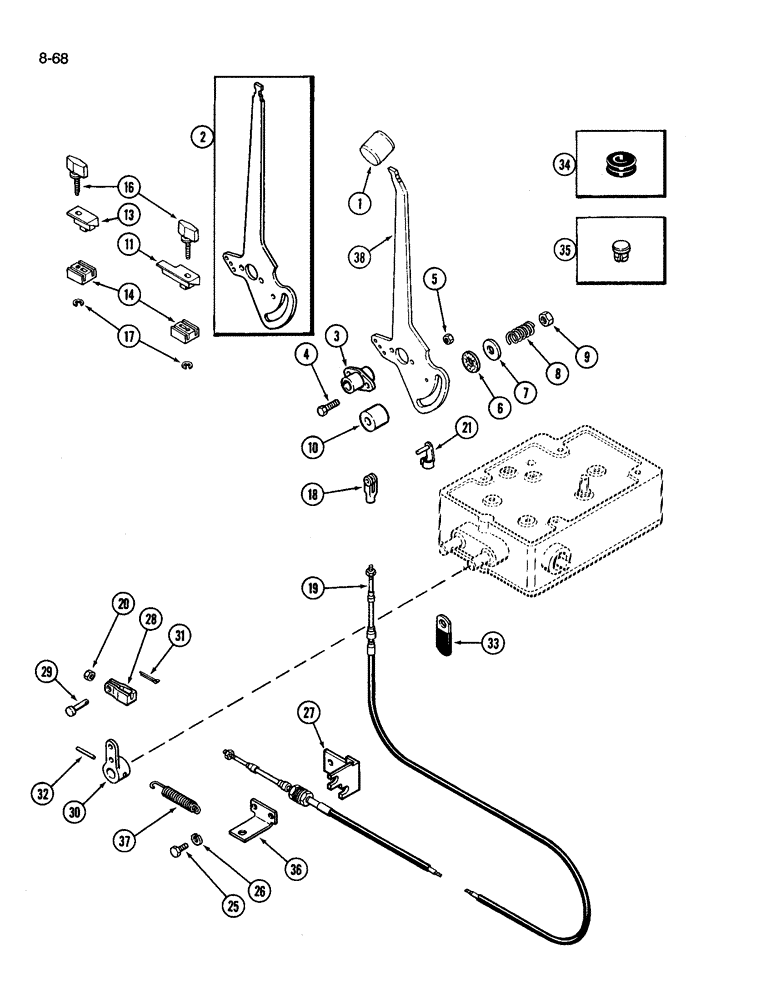

Запчасти Case IH 3594 (8-068) - HITCH SYSTEM, HITCH CONTROLS (08) - HYDRAULICS

1

A177438

KNOB

hand lever, black

1шт.

2

A180498

LEVER

hitch

1шт.

3

A162299

BEARING,15.95mm ID

lever

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

5

230-4214

LOCK NUT,1/4"-20, GA

NUT hex, self-locking, 1/4 inch NC

2шт.

6

A61069

DISC

friction

1шт.

7

495-81149

WASHER,7/16" x 1 1/4" x .083"

flat, 7/16 x 1-1/4 x 3/32 inch

1шт.

8

A65583

SPRING

friction disc

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT hex, jam, self-locking, 3/8 inch NC

1шт.

10

A160622

BUSHING

SPACER lever

1шт.

11

A162862

STOP

hitch, top front

1шт.

13

A163829

STOP

hitch, top rear

1шт.

14

A162863

LOCK

hitch stop, bottom

2шт.

16

A162958

BUTTON

KNOB lever stop

2шт.

17

49485

SNAP RING,#X18, .122" Dia, E-Type

Ring, Retaining, #X18, .122" Dia, E-Type

2шт.

18

213-113

ADJUSTABLE CLEVIS,#10-32

CLEVIS adjustable, No. 10

1шт.

19

A167658

CABLE

hitch control

1шт.

20

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

21

A149683

PIN

clevis, spring, 3/16 inch

1шт.

25

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

hex, 5/16 NC x 1 inch

2шт.

26

92-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

A160811

BRACKET

control cable

1шт.

28

A65265

YOKE

CLEVIS cable to lower lever

1шт.

29

427-3058

CLEVIS PIN,3/16" x .580"

PIN, CLEVIS, , Hardened 3/16" x .580"

1шт.

30

A156185

LEVER

hitch control

1шт.

31

432-412

COTTER PIN,1/16" x 3/4"

PIN, SPLIT (COTTER), 1/16" x 3/4"

1шт.

32

138-99

LOCK PIN,3/16" x 1 3/8", Slotted

PIN, 3/16" x 1 3/8", Slotted

1шт.

33

A37179

CLIP

cable

1шт.

34

A145925

GROMMET

cable

1шт.

35

A162961

PLUG

3/4 inch diameter head

1шт.

36

A169807

BRACKET

hitch spring assist

1шт.

37

A169810

SPRING

hitch lever

1шт.

38

A181782

LEVER

hitch

1шт.
