Запчасти Case IH 3594 (8-064) - REMOTE HYDRAULIC HOSE COUPLINGS (08) - HYDRAULICS

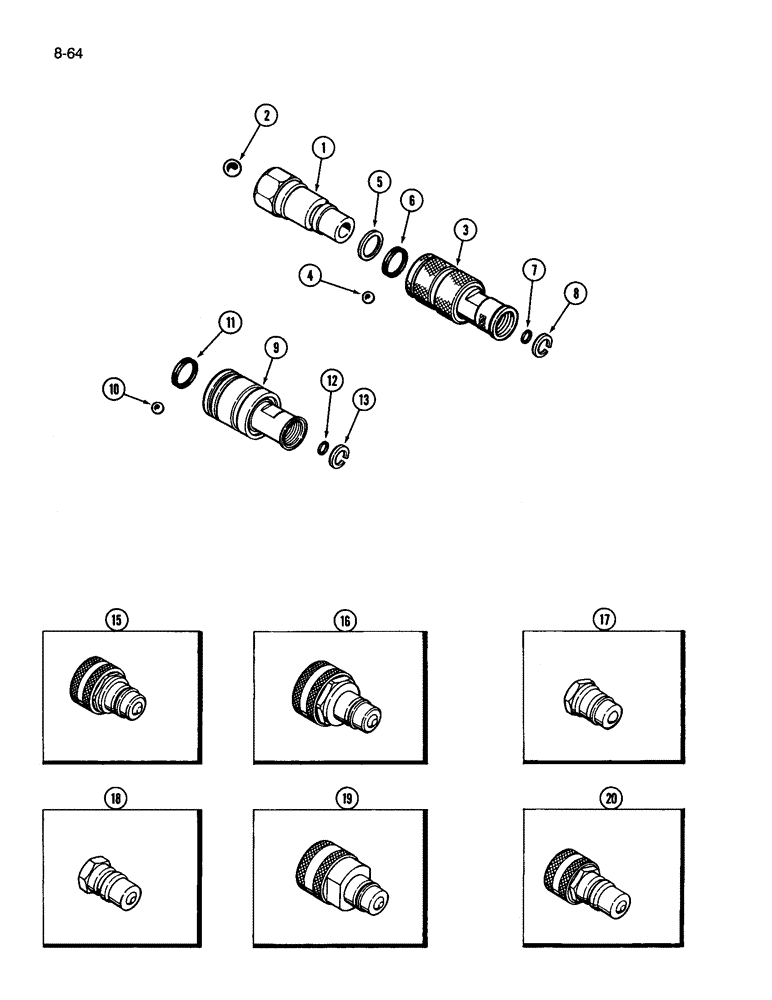

Схема запчастей Case IH 3594 - (8-064) - REMOTE HYDRAULIC HOSE COUPLINGS (08) - HYDRAULICS
7
15
19
1
13
8
6
17
4
11
16
2
20
5
3
18
9
12
10

Артикул

Название

Примечание

Количество

1

A147889

COUPLING, BREAK AWAY

COUPLING hydraulic, male breakaway, Order 1272399C2, Includes Ref. 2, remote hose

1шт.

2

211-215

BALL,17/32" Dia

17/32 inch, grade 100, carbon steel

1шт.

3

A147888

BREAKER POINTS

COUPLING hydraulic, female breakaway, Order A177478, Includes Ref. 4 - 8, remote hydraulic hose couplings

1шт.

4

211-204

BALL

3/16 inch, grade 200, carbon steel

10шт.

5

A44890

RING

back up

1шт.

A47220

GASKET KIT

KIT Service, quick disconnect couplings, Order 123739A1, Includes Ref. 6, 7 and 8, remote hydraulic hose

1шт.

6

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

coupling body

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL valve coupling

1шт.

8

NSS

NOT SOLD SEPARAT

RING lock

1шт.

9

A177478

COUPLING, QUICK, FEM

COUPLING hydraulic, female breakaway, Includes Ref. 10, remote hose

1шт.

10

211-204

BALL

3/16 inch, grade 200, carbon steel

10шт.

A47220

GASKET KIT

KIT Service, quick disconnect couplings, Order 123739A1, Includes Ref. 11, 12 and 13, remote hydraulic hose couplings

1шт.

11

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

coupling body

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL valve coupling

1шт.

13

NSS

NOT SOLD SEPARAT

RING lock

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY, male half, John Deere male half to J I Case A147888 female half, hydraulic coupling

1шт.

15

A160879

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY, male half, John Deere male half to J I Case A147888 female half, hydraulic coupling

1шт.

16

A160880

COUPLING, BREAK AWAY

ADAPTER ASSEMBLY, male half, International Harvester male half to J I Case A147888 female half, hydraulic coupling

1шт.

17

1272770C2

COUPLING, BREAK AWAY

COUPLING ASSEMBLY, male half, same as A147889 except with 1/2 inch-14 internal thread, hydraulic adapters

1шт.

18

A160884

COUPLING, BREAK AWAY

COUPLING ASSEMBLY, male half, 1/2 inch-14 thread, Order A27744 and A28541, hydraulic adapters

1шт.

19

A160885

QUICK MALE COUPLING

ADAPTER ASSEMBLY, male half, J I Case A28541 and A160884 to J I Case A147888, hydraulic coupling

1шт.

20

A160888

COUPLING

ADAPTER ASSEMBLY, male half, J I Case A147889 to J I Case A28542, hydraulic coupling

1шт.

Выбрано товаров: 22
