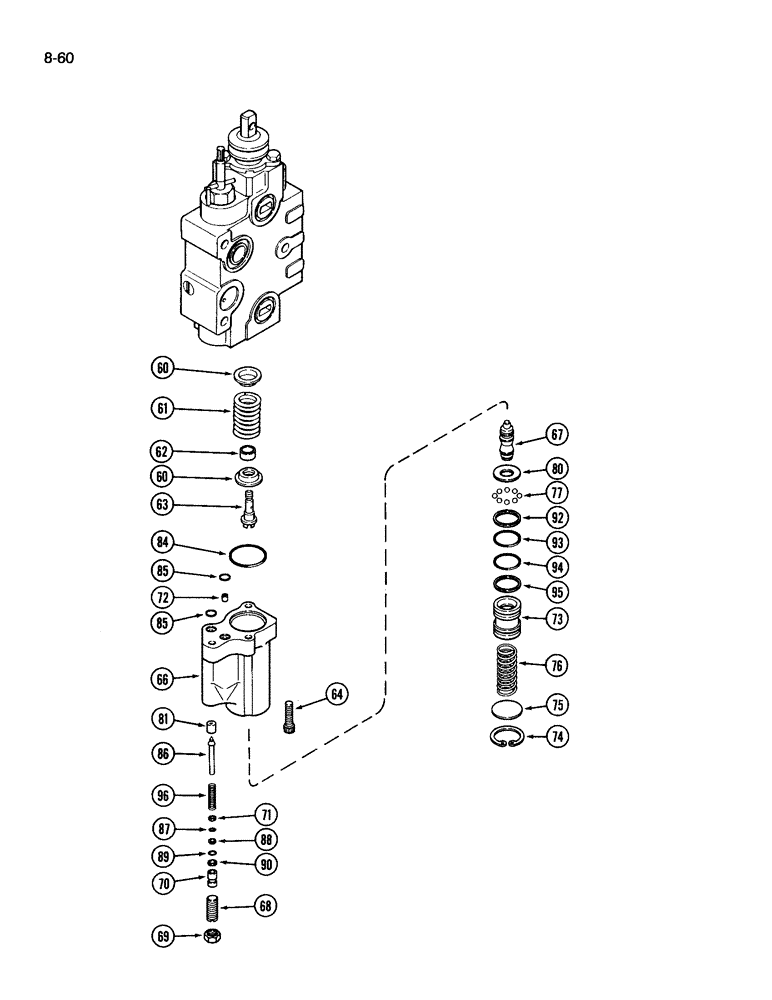

Запчасти Case IH 3594 (8-060) - REMOTE VALVE ASSEMBLY, ADD ON THIRD CIRCUIT WITH LOAD CHECK (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A169456
VALVE
REMOTE VALVE ASSEMBLY, with load check, Includes Ref. 60 - 96
1шт.
A48945
HOUSING
REMOTE VALVE ASSEMBLY, Includes Ref. 60 - 96
1шт.
60
A47197
RETAINER
spring
2шт.
61
A47177
SPRING
centering
1шт.
62
A48930
SPACER
detent
1шт.
63
A46923
COUPLING, BREAK AWAY
COUPLER detent
1шт.
64
61-32516
HEX SOC SCREW,1/4"-20 x 1"
SCREW socket head cap, 1/4 NC x 1 inch
3шт.
A48940
KIT
Housing, detent, Includes Ref. 66 - 96
1шт.
66
NSS
NOT SOLD SEPARAT
HOUSING detent
1шт.
67
A52409
SHAFT
detent
1шт.
68
A47173
SCREW,3/8" - 24 x 0.96"
adjusting
1шт.
69
425-156
JAM NUT,Jam, 3/8"-24, G5
hex jam, 3/8 inch NF
1шт.
70
A48936
GOVERNOR
PISTON regulator
1шт.
71
A48935
WASHER
valve
1шт.
72
A47658
PLUG
orifice
1шт.
73
A48932
PISTON
kickout
1шт.
74
A30975
SNAP RING,1.188", Int, #118
1шт.
75
A48933
RING
RETAINER piston
1шт.
76
A48934
SPRING
detent
1шт.
77
211-205
BALL
7/32 inch, grade 200, chrome alloy steel
8шт.
80
A48931
WASHER
guide
1шт.
81
A47201
SEAT
pilot
1шт.
A48942
KIT
Service, detent seals, Includes Ref. 84 - 96
1шт.
84
238-5026
O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro
-026, 70 Duro, 1.239" ID x .070" Thk
1шт.
85
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
2шт.
86
NSS
NOT SOLD SEPARAT
POPPET detent
1шт.
87
238-5006
O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro
-006, 70 Duro, .114" ID x .070" Thk
1шт.
88
A52378
RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk
backup
1шт.
89
238-5008
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
-008, 70 Duro, .176" ID x .070" Thk
1шт.
90
D71056
RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk
backup
1шт.
92
L35295
SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk
RING backup
1шт.
93
238-5021
O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro
-021, 70 Duro, .926" ID x .070" Thk
1шт.
94
238-5022
O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro
-022, 70 Duro, .989" ID x .070" Thk
1шт.
95
A52208
SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk
RING backup
1шт.
96
NSS
NOT SOLD SEPARAT
SPRING relief
1шт.
Выбрано товаров: 35
