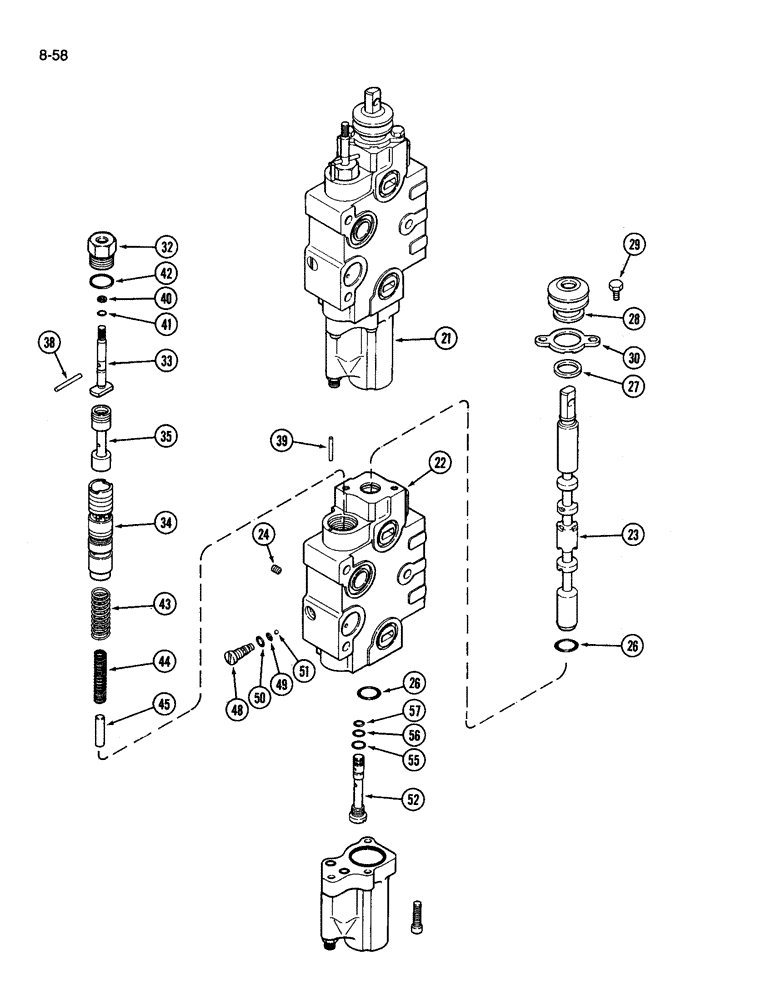

Запчасти Case IH 3594 (8-058) - REMOTE VALVE ASSEMBLY, ADD ON THIRD CIRCUIT WITH LOAD CHECK (08) - HYDRAULICS

A169456

VALVE

REMOTE VALVE ASSEMBLY, with load check, Includes Ref. 21 - 57

1шт.

21

A48945

HOUSING

REMOTE VALVE ASSEMBLY, Includes Ref. 22 - 57

1шт.

22

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

24

A47105

PLUG

expansion

1шт.

26

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

A48938

KIT

Service, filter, Order components, Includes Ref. 27 - 30

1шт.

27

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER spool

1шт.

28

A47188

COVER

BOOT dust

1шт.

29

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

hex, 1/4 NC x 1/2 inch

2шт.

30

A47196

RETAINER

dust guard

1шт.

32

A48925

PLUG

flow control

1шт.

33

A48929

SHAFT

adjusting

1шт.

34

A48956

TUBE

flow control

1шт.

35

A48957

SPOOL

flow control

1шт.

A48941

SEAL

KIT Seal, flow control, Order components, Includes Ref. 38 - 44

1шт.

38

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

39

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

40

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

backup

1шт.

41

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

A48959

SPRING

outer, flow control

1шт.

44

A48960

SPRING

inner, flow control

1шт.

45

A48937

PIN

guide, spring

1шт.

A47210

PLUG

SECONDARY SHUTTLE PLUG ASSEMBLY, Order components, Includes Ref. 48

1шт.

48

A47204

PLUG

BODY shuttle

1шт.

A48939

KIT

Service, shuttle seals, Order components, Includes Ref. 49 and 50

1шт.

49

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

50

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

51

211-204

BALL

3/16 inch, grade 50, chrome alloy steel

1шт.

52

A47209

SPOOL

PRIMARY SHUTTLE ASSEMBLY

1шт.

N6632

SEAL KIT

Service, shuttle seals, Order components, Includes Ref. 55, 56 and 57

1шт.

55

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

56

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

57

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.
