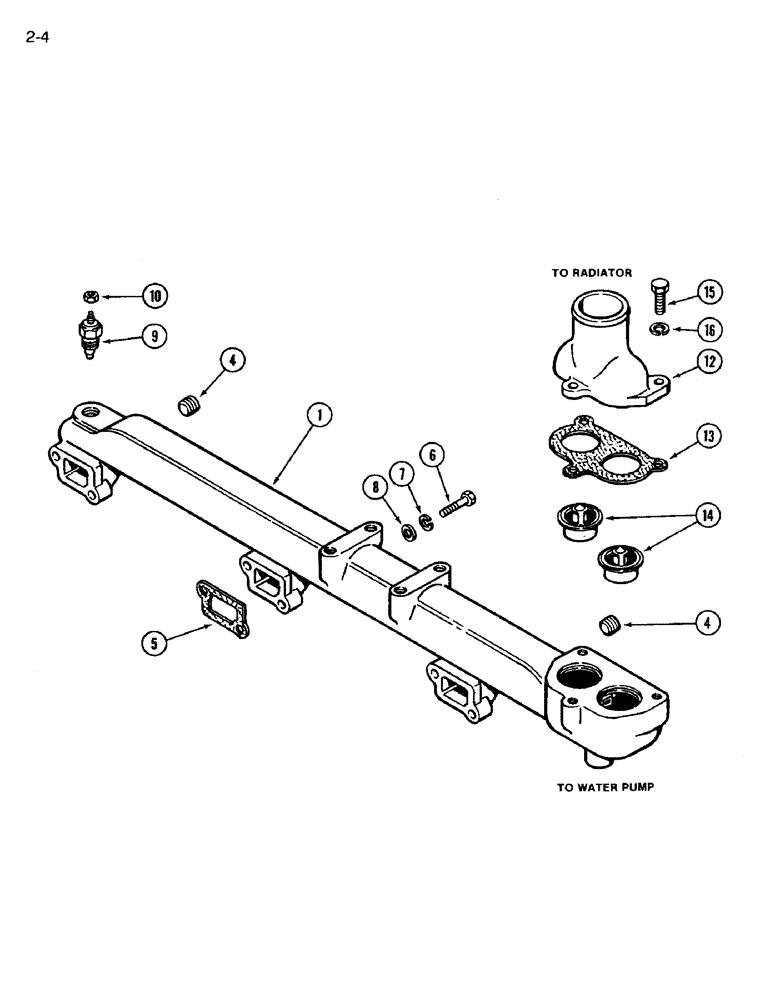

Запчасти Case IH 3594 (2-004) - WATER MANIFOLD AND THERMOSTAT, 504BDT DIESEL ENGINE (02) - ENGINE

1

A152742

MANIFOLD

water

1шт.

4

221-844

PLUG,Hex Soc, 1/2"-14

square socket, 1/2 inch PT

2шт.

5

1342785C1

MANIFOLD GASKET

manifold, Replaces A166147

3шт.

6

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

6шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

8

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

6шт.

9

A176566

TRANSMITTER

SENDER temperature, coolant

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

12

A58638

HOUSING

thermostat

1шт.

13

1342784C1

GASKET

housing, Replaces A166148

1шт.

14

A57641

THERMOSTAT

180 degrees F

2шт.

15

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

3шт.

16

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
