(8-050) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK

Запчасти Case IH 3594 (8-050) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (08) - HYDRAULICS

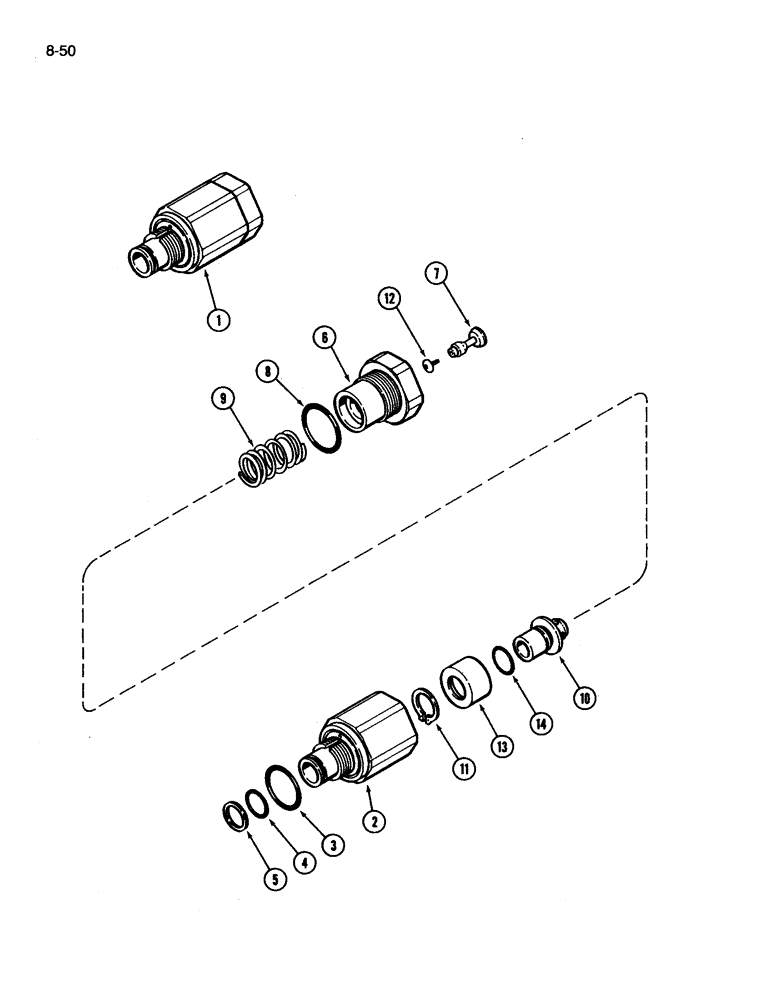

Схема запчастей Case IH 3594 - (8-050) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (08) - HYDRAULICS
10
12
9
13
14
7
2
6
3
4
11
1
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A52422

VALVE

REMOTE VALVE LOAD CHECK ASSEMBLY, Includes Ref. 2 - 14

2шт.

2

NSS

NOT SOLD SEPARAT

HOUSING load check

1шт.

3

A52427

O-RING,1.301" ID x 1.441" OD

housing

1шт.

4

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.

5

A52424

BACK-UP RING

RING backup

1шт.

6

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

7

NSS

NOT SOLD SEPARAT

POPPET load check

1шт.

8

238-6124

O-RING,0.103" Thk x 1.237" ID, -124, Cl 6, 90 Duro

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING load check

1шт.

10

NSS

NOT SOLD SEPARAT

PISTON load check

1шт.

11

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

12

NSS

NOT SOLD SEPARAT

SCREW button head

1шт.

13

NSS

NOT SOLD SEPARAT

SPACER load check

1шт.

14

238-5018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro

-018, 70 Duro, .739" ID x .070" Thk

1шт.
