Запчасти Case IH 3594 (8-048) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (08) - HYDRAULICS

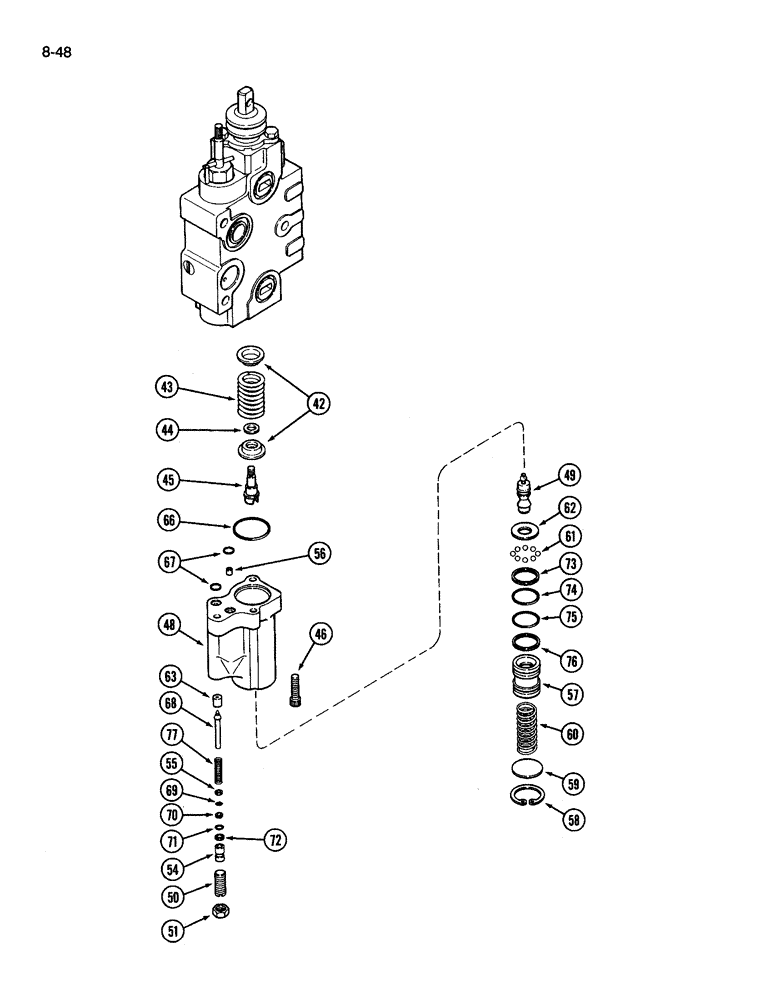

Схема запчастей Case IH 3594 - (8-048) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (08) - HYDRAULICS
57
61
70
50
56
68
54
69
62
46
75
51
44
45
60
77
72
76
58
48
42
55
73
74
43
63
67
66
59
71
49

Артикул

Название

Примечание

Количество

1986840C1

VALVE

REMOTE CONTROL VALVE ASSEMBLY, priority float, Replaces A52404, Includes Ref 42 - 77

1шт.

1986841C1

VALVE

REMOTE CONTROL VALVE ASSEMBLY, float, Replaces A52405, Includes Ref. 42 - 77

1шт.

42

A47197

RETAINER

spring

2шт.

43

A47177

SPRING

centering

1шт.

44

A47199

BUSHING

SPACER detent

1шт.

45

A47193

COUPLING, BREAK AWAY

COUPLER detent pivot

1шт.

46

61-32516

HEX SOC SCREW,1/4"-20 x 1"

SCREW socket head cap, 1/4 NC x 1 inch

3шт.

A52435

HOUSING ASSY.

DETENT HOUSING ASSEMBLY, Includes Ref. 48 - 63

1шт.

48

NSS

NOT SOLD SEPARAT

HOUSING detent

1шт.

49

A52409

SHAFT

detent

1шт.

50

A52437

SET SCREW,3/8" - 24 x 1", Gr 7

adjusting

1шт.

51

425-156

JAM NUT,Jam, 3/8"-24, G5

hex jam, 3/8 inch NF

1шт.

54

A48936

GOVERNOR

PISTON regulator

1шт.

55

A48935

WASHER

poppet

1шт.

56

A47658

PLUG

orifice

1шт.

57

A48932

PISTON

kickout

1шт.

58

A30975

SNAP RING,1.188", Int, #118

1шт.

59

A48933

RING

RETAINER piston

1шт.

60

A48934

SPRING

detent

1шт.

61

211-205

BALL

7/32 inch, grade 200, chrome alloy steel

8шт.

62

A48931

WASHER

guide

1шт.

63

A47201

SEAT

pilot float assembly

1шт.

A48942

KIT

Service, detent seals, Includes Ref. 66 - 77

1шт.

66

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

-026, 70 Duro, 1.239" ID x .070" Thk

1шт.

67

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

2шт.

68

NSS

NOT SOLD SEPARAT

POPPET detent

1шт.

69

238-5006

O-RING,0.07" Thk x 0.114" ID, -6, Cl 5, 75 Duro

-006, 70 Duro, .114" ID x .070" Thk

1шт.

70

A52378

RING,Split, 3.56mm ID x 6.3mm OD x 1.32mm Thk

back-up

1шт.

71

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

72

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

backup

1шт.

73

L35295

SEALING RING,Split, 24.38mm ID x 27.13mm OD x 1.32mm Thk

RING backup

1шт.

74

238-5021

O-RING,0.07" Thk x 0.926" ID, -21, Cl 5, 75 Duro

-021, 70 Duro, .926" ID x .070" Thk

1шт.

75

238-5022

O-RING,0.07" Thk x 0.99" ID, -22, Cl 5, 75 Duro

-022, 70 Duro, .989" ID x .070" Thk

1шт.

76

A52208

SEAL,25.98mm ID x 28.73mm OD x 1.32mm Thk

RING backup

1шт.

77

NSS

NOT SOLD SEPARAT

SPRING relief

1шт.

Выбрано товаров: 35
