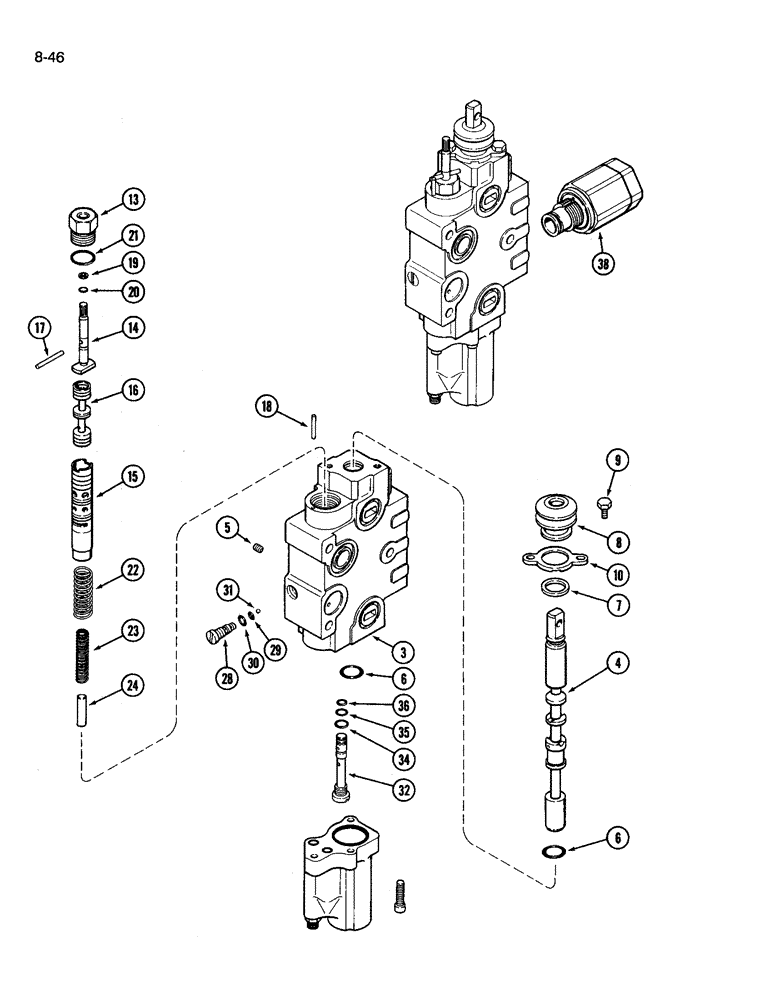

Запчасти Case IH 3594 (8-046) - REMOTE VALVE ASSEMBLY, FIRST AND SECOND SECTION WITH LOAD CHECK (08) - HYDRAULICS

1986840C1

VALVE

REMOTE CONTROL VALVE ASSEMBLY, priority float, Replaces A52404, Includes Ref. 3 - 38

1шт.

1986841C1

VALVE

REMOTE CONTROL VALVE ASSEMBLY, float, Replaces A52405, Includes Ref. 3 - 38

1шт.

3

NSS

NOT SOLD SEPARAT

BODY priority float valve, Order 1986840C1

1шт.

3

NSS

NOT SOLD SEPARAT

BODY float valve, Order 1986841C1

1шт.

4

1986844C1

SPOOL

valve

1шт.

5

A47105

PLUG

expansion

1шт.

6

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

2шт.

7

A47205

SEAL,22.61mm ID x 32.13mm OD x 2.67mm Thk

FILTER spool

1шт.

8

A47188

COVER

BOOT dust

1шт.

9

86019274

SCREW,Hex, 1/4"-20 x 1/2", G5

hex, 1/4 NC x 1/2 inch

2шт.

10

A47196

RETAINER

dust guard

1шт.

13

A48925

PLUG

flow control

1шт.

14

A48929

SHAFT

adjusting

1шт.

15

A52412

TUBE

flow control

1шт.

16

A52411

PISTON

SPOOL flow control

1шт.

17

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

18

138-305

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

19

D71056

RING,Split, 4.47mm ID x 7.21mm OD x 1.32mm Thk

backup

1шт.

20

238-5008

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

-008, 70 Duro, .176" ID x .070" Thk

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

A48959

SPRING

outer, flow control

1шт.

23

A48960

SPRING

inner, flow control

1шт.

24

A52410

PIN

spring guide

1шт.

A47210

PLUG

SECONDARY SHUTTLE PLUG ASSEMBLY, Order components, Includes Ref. 28, 29 and 30

1шт.

28

A47204

PLUG

BODY shuttle

1шт.

29

238-6008

O-RING,0.07" Thk x 0.176" ID, -8, Cl 6, 90 Duro

1шт.

30

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

31

211-204

BALL

3/16 inch, grade 50, chrome alloy steel

1шт.

32

A47209

SPOOL

PRIMARY SHUTTLE ASSEMBLY

1шт.

N6632

SEAL KIT

Service, shuttle seals, Order components, Includes Ref. 34, 35 and 36

1шт.

34

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

35

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

36

238-6009

O-RING,0.07" Thk x 0.208" ID, -9, Cl 6, 90 Duro

1шт.

A52421

PLUG

expansion, not shown

1шт.

38

REF

INSTRUCTION

REMOTE VALVE LOAD CHECK ASSEMBLY, See Figure 8-050

1шт.
